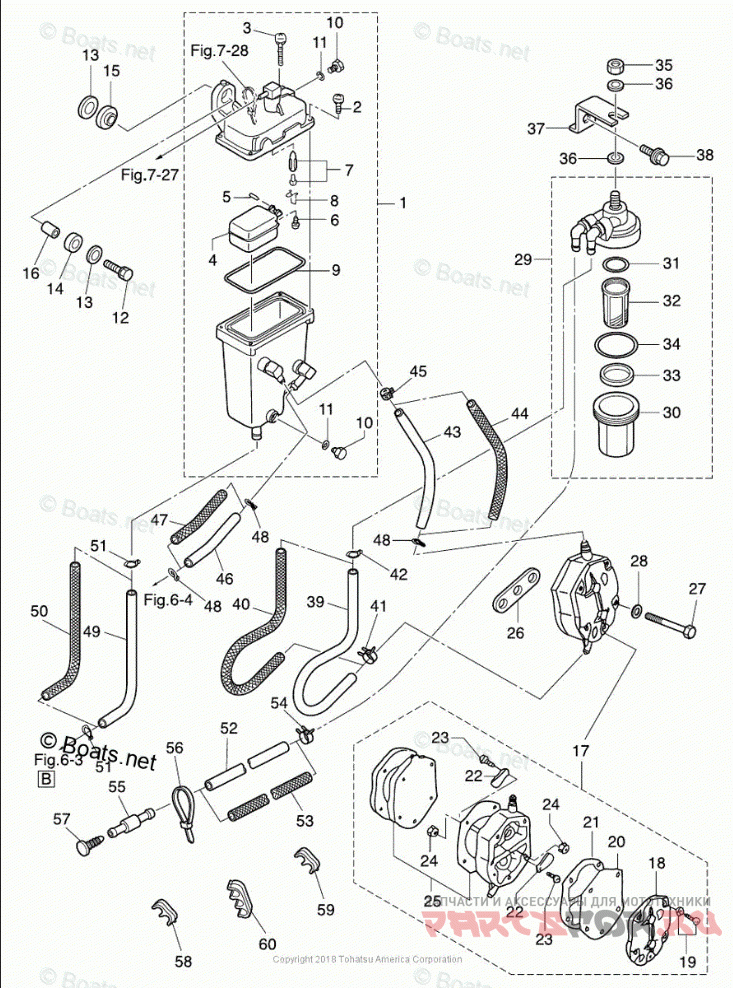

VAPOR SEPARATOR & FUEL LINE

Tohatsu MD90C2

Tohatsu
#oem кодцена
8-18
334040040
FUEL COVER
8-12
9101E30630
BOLT (10 MULTIPLE)
8-57
3T1038130
CAP, FUEL HOSE NIPPLE
8-59
3T1069150
CLAMP
8-58
3T1069170
CLAMP (NOT AVAILABLE)
8-55
3T1600180
FUEL HOSE NIPPLE
8-33
3T5022290
FLOAT
8-37
3T5022390
PLATE, FILTER
8-4
3T5032300
FLOAT
8-9
3T5032350
O-RING
8-1
3T5101501
VAPOR SEPARATOR ASSY
8-56
3T5843980
LEAD WIRE BAND, 104
8-60
3U1069150
CLAMP
8-27
9101030640
BOLT
8-38
9101E35616
BOLT & WASHER (10 MULTIPLE)
8-7
3R3032390
FLOAT VALVE
8-6
9215030408
SCREW (10 MULTIPLE)
8-3
9215036430
SCREW
8-23
9217220306
SCREW (10 MULTIPLE)
8-19
9225126528
SCREW
8-2
9225316414
SCREW (10 MULTIPLE)
8-35
9301030800
NUT (10 MULTIPLE)
8-24
9302220300
NUT (10 MULTIPLE)
8-36
9401030800
WASHER (10 MULTIPLE)
8-28
9402030600
WASHER (10 MULTIPLE)
8-46
98AB501000
FUEL PIPE 5MM (3/16") (1 EA.=1 METER)
8-43
98AB501000
FUEL PIPE 5MM (3/16") (1 EA.=1 METER)
8-49
98AB701000
FUEL PIPE 7MM (5/16") (1 EA.=1 METER)
8-29
3T1022300
FUEL FILTER ASSY.
8-45
3GT351430
CLIP, @ 9.4
8-20
334040050
DIAPHRAGM
8-17
356040001
FUEL PUMP ASSY.
8-21
334040070
GASKET B
8-11
336032930
O-RING
8-42
338022150
CLIP, FUEL PIPE
8-48
338022150
CLIP, FUEL PIPE
8-8
344032440
CLIP
8-10
345032920
DRAIN SCREW
8-41
345701141
CLIP
8-54
345701141
CLIP
8-26
346049012
GASKET
8-14
346671130
MOUNT RUBBER
8-16
346671141
SPACER
8-13
346671150
WASHER
8-25
356040300
DIAPHRAGM B SET *{/*NEED 334040070M (GASKET B) AND 334040050M (DIAPHRAGM) TO COMPLETE KIT*/}*
8-44
3GB021650
HOSE, LOW PERMEATION
8-22
356040440
CHECK VALVE
8-32
3B7022340
FILTER
8-31
3B7022350
O-RING A
8-34
3B7022360
O-RING B
8-30
3B7022370
CUP
8-15
3B7069200
MOUNT RUBBER
8-51
3C7022150
CLIP
8-5
3F3032320
ARM PIN, FLOAT
8-40
3FW021650
HOSE, LOW PERMEATION
8-50
3FW021700
HOSE, LOW PERMEATION
8-39
3FW022110
HOSE, LOW PERMEATION
8-47
3GA021650
HOSE, LOW PERMEATION
8-52
98AB701000
FUEL PIPE 7MM (5/16") (1 EA.=1 METER)
