VAPOR SEPARATOR & FUEL LINE для лодочных моторов Tohatsu MD115A2 (2018)

Москва и регионы России

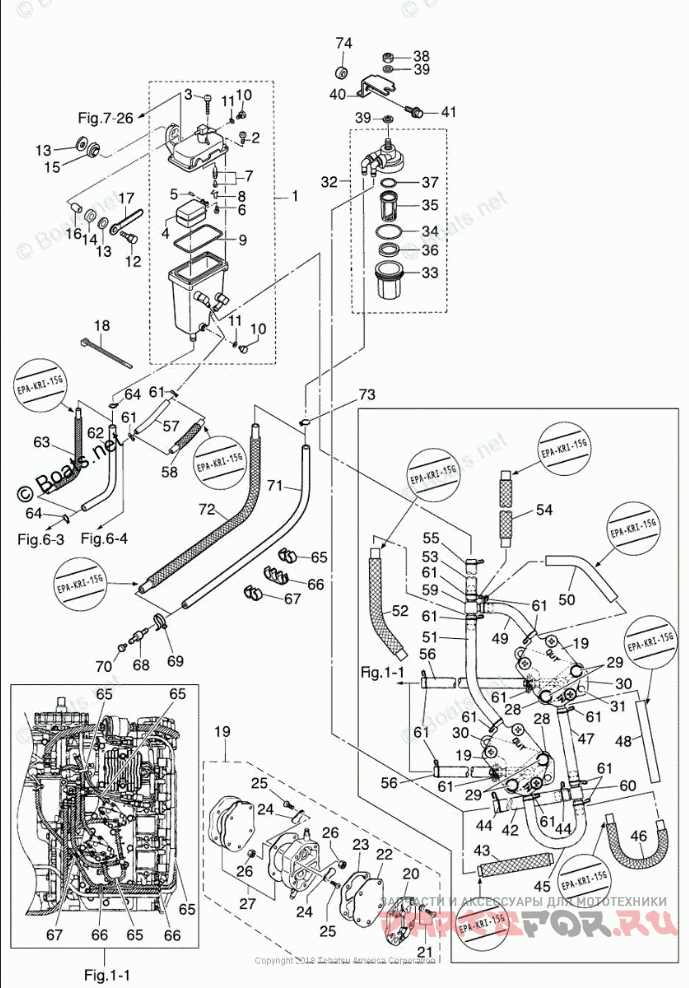

VAPOR SEPARATOR & FUEL LINE

Tohatsu MD115A2

VAPOR SEPARATOR & FUEL LINE

#

oem код

название

цена

8-20

FUEL COVER

FUEL COVER

8-9

O-RING

O-RING

8-29

BOLT

BOLT

8-12

BOLT

BOLT

8-66

CLAMP

CLAMP

8-69

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

8-18

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

8-1

VAPOR SEPARATOR ASSY

VAPOR SEPARATOR ASSY

8-4

FLOAT

FLOAT

8-41

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

8-36

FLOAT

FLOAT

8-68

FUEL HOSE NIPPLE

FUEL HOSE NIPPLE

8-67

CLAMP (NOT AVAILABLE)

CLAMP (NOT AVAILABLE)

8-65

CLAMP

CLAMP

8-30

BRACKET, FUEL PUMP

BRACKET, FUEL PUMP

8-70

CAP, FUEL HOSE NIPPLE

CAP, FUEL HOSE NIPPLE

8-31

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

8-6

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-32

FUEL FILTER ASSY.

FUEL FILTER ASSY.

8-47

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

8-62

FUEL PIPE 7MM (5/16") (1 EA.=1 METER)

FUEL PIPE 7MM (5/16") (1 EA.=1 METER)

8-42

FUEL PIPE 7MM (5/16") (1 EA.=1 METER)

FUEL PIPE 7MM (5/16") (1 EA.=1 METER)

8-49

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

8-45

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

8-53

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

8-51

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

8-56

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

8-3

SCREW

SCREW

8-57

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

8-39

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-26

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

8-38

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

8-2

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-21

SCREW

SCREW

8-25

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-40

FILTER PLATE

FILTER PLATE

8-7

FLOAT VALVE

FLOAT VALVE

8-22

DIAPHRAGM

DIAPHRAGM

8-16

SPACER

SPACER

8-74

COLLAR

COLLAR

8-59

PIPE JOINT T TYPE

PIPE JOINT T TYPE

8-24

CHECK VALVE

CHECK VALVE

8-27

DIAPHRAGM B SET *{/*NEED 334040070M (GASKET B) AND 334040050M (DIAPHRAGM) TO COMPLETE KIT*/}*

DIAPHRAGM B SET *{/*NEED 334040070M (GASKET B) AND 334040050M (DIAPHRAGM) TO COMPLETE KIT*/}*

8-19

FUEL PUMP ASSY.

FUEL PUMP ASSY.

8-13

WASHER

WASHER

8-14

MOUNT RUBBER

MOUNT RUBBER

8-34

O-RING A

O-RING A

8-28

GASKET

GASKET

8-10

DRAIN SCREW

DRAIN SCREW

8-8

CLIP

CLIP

8-61

CLIP, FUEL PIPE

CLIP, FUEL PIPE

8-11

O-RING

O-RING

8-23

GASKET B

GASKET B

8-35

FILTER

FILTER

8-37

O-RING B

O-RING B

8-17

CLAMP

CLAMP

8-50

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-48

FUEL HOSE, LOW PERMEATION

FUEL HOSE, LOW PERMEATION

8-43

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-52

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-46

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-58

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-54

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-55

CLIP, @ 9.4

CLIP, @ 9.4

8-33

CUP

CUP

8-63

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

8-5

ARM PIN, FLOAT

ARM PIN, FLOAT

8-73

CLIP

CLIP

8-44

CLIP

CLIP

8-64

CLIP

CLIP

8-60

PIPE JOINT

PIPE JOINT

8-15

MOUNT RUBBER

MOUNT RUBBER

8-71

FUEL PIPE 7MM (5/16") (1 EA.=1 METER)

FUEL PIPE 7MM (5/16") (1 EA.=1 METER)
