GEAR CASE, DRIVE SHAFT для лодочных моторов Tohatsu MD115A2 (2018)

Москва и регионы России

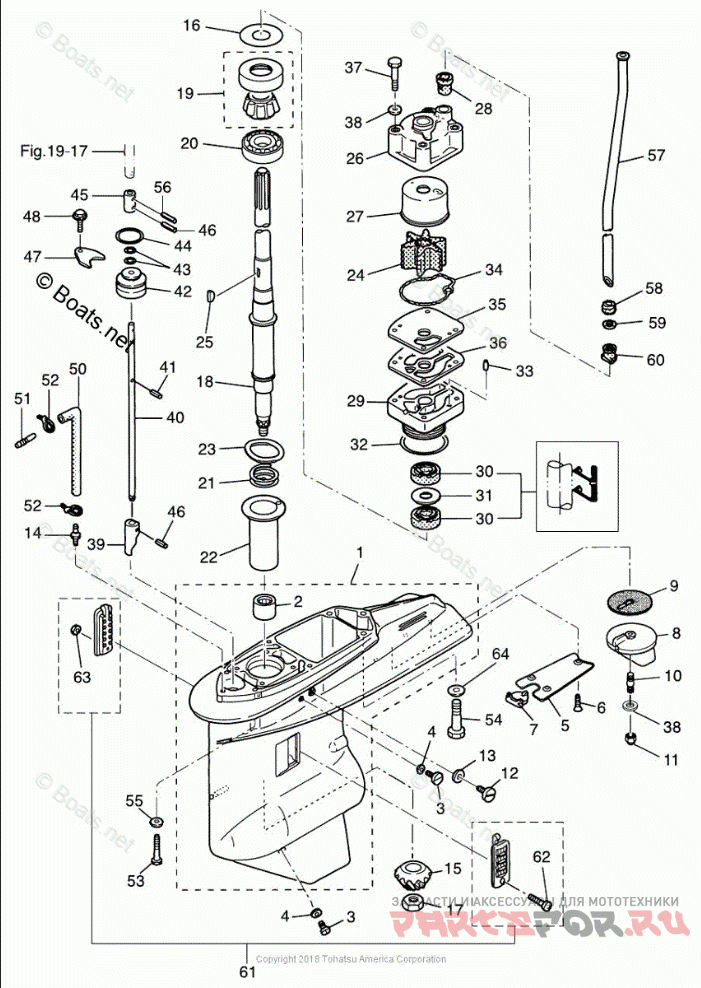

GEAR CASE, DRIVE SHAFT

Tohatsu MD115A2

GEAR CASE, DRIVE SHAFT

#

oem код

название

цена

14-3

OIL PLUG (8 X 1.25)

OIL PLUG (8 X 1.25)

14-1

GEAR CASE, D70B~115

GEAR CASE, D70B~115

14-22

GUIDE, DRIVE SHAFT SPRING

GUIDE, DRIVE SHAFT SPRING

14-27

LINER, WATER PUMP CASE

LINER, WATER PUMP CASE

14-28

SEAL, LOWER RUBBER, WATER PIPE

SEAL, LOWER RUBBER, WATER PIPE

14-26

UPPER PUMP CASE

UPPER PUMP CASE

14-29

LOWER PUMP CASE

LOWER PUMP CASE

14-34

SEAL, WATER PUMP CASE

SEAL, WATER PUMP CASE

14-24

IMPELLER (NS120A/140A/70/90TLDI)

IMPELLER (NS120A/140A/70/90TLDI)

14-35

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

14-36

GASKET, PUMP GUIDE PLATE

GASKET, PUMP GUIDE PLATE

14-57

WATER PIPE L

WATER PIPE L

14-57

WATER PIPE UL

WATER PIPE UL

14-60

LOCKING RUBBER, WATER PIPE

LOCKING RUBBER, WATER PIPE

14-58

SEAL, UPPER RUBBER, WATER PIPE

SEAL, UPPER RUBBER, WATER PIPE

14-53

BOLT 8-35

BOLT 8-35

14-18

DRIVE SHAFT UL

DRIVE SHAFT UL

14-52

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

14-48

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

14-10

STUD BOLT

STUD BOLT

14-37

BOLT

BOLT

14-62

SCREW

SCREW

14-6

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

14-63

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

14-11

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

14-55

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

14-38

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

14-64

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

14-41

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

14-56

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

14-46

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

14-21

SPRING, DRIVE SHAFT

SPRING, DRIVE SHAFT

14-18

DRIVE SHAFT L

DRIVE SHAFT L

14-4

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

14-17

NUT, BEVEL GEAR B

NUT, BEVEL GEAR B

14-33

DOWEL PIN,4-10

DOWEL PIN,4-10

14-59

COLLAR

COLLAR

14-43

O-RING A

O-RING A

14-31

SHIM KIT

SHIM KIT

14-16

SHIM A KIT

SHIM A KIT

14-47

STOPPER

STOPPER

14-45

JOINT SHIFT ROD

JOINT SHIFT ROD

14-54

BOLT

BOLT

14-5

PLATE GEAR CASE

PLATE GEAR CASE

14-7

HOLE PLUG

HOLE PLUG

14-12

WATER PLUG

WATER PLUG

14-13

GASKET

GASKET

14-8

TRIM TAB

TRIM TAB

14-9

PACKING, TRIM TAB

PACKING, TRIM TAB

14-32

O-RING

O-RING

14-15

BEVEL GEAR B (PINION)

BEVEL GEAR B (PINION)

14-25

IMPELLER KEY

IMPELLER KEY

14-39

CLUTCH CAM

CLUTCH CAM

14-40

CAM ROD L

CAM ROD L

14-40

CAM ROD-UL

CAM ROD-UL

14-44

O-RING

O-RING

14-42

BUSHING CAM ROD

BUSHING CAM ROD

14-14

NIPPLE (1/8" NPT)

NIPPLE (1/8" NPT)

14-51

NIPPLE

NIPPLE

14-61

WATER STRAINER (SET OF 2)

WATER STRAINER (SET OF 2)

14-23

WAVE WASHER, D=47.2

WAVE WASHER, D=47.2

14-2

NEEDLE BEARING

NEEDLE BEARING

14-19

ROLLER BEARING (0506)

ROLLER BEARING (0506)

14-20

BALL BEARING

BALL BEARING

14-30

OIL SEAL (70B/70C-90A-140A2 REQ 2)

OIL SEAL (70B/70C-90A-140A2 REQ 2)

14-50

LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE

LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
