MAGNETO & ELECTRIC PARTS для лодочных моторов Tohatsu MFS8B (2017)

Москва и регионы России

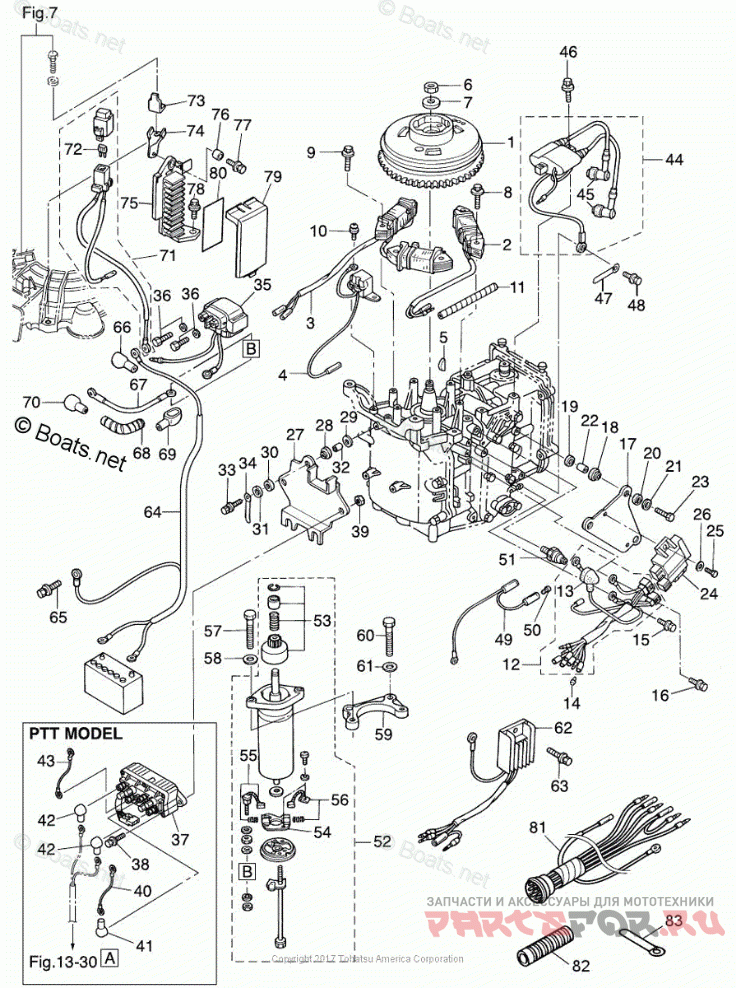

MAGNETO & ELECTRIC PARTS

Tohatsu MFS8B

MAGNETO & ELECTRIC PARTS

#

oem код

название

цена

8-76

COLLAR, 6-8-6

COLLAR, 6-8-6

8-68

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

8-41

TERMINAL CAP

TERMINAL CAP

8-42

TERMINAL CAP

TERMINAL CAP

8-70

TERMINAL CAP

TERMINAL CAP

8-69

TERMINAL CAP

TERMINAL CAP

8-49

SEPARATE CORD (BLACK)

SEPARATE CORD (BLACK)

8-81

CORD ASSY (EPT)

CORD ASSY (EPT)

8-80

WIRING DIAGRAM DECAL, F8A3,B/9.8A3.B (EP,EPT)

WIRING DIAGRAM DECAL, F8A3,B/9.8A3.B (EP,EPT)

8-11

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

8-33

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-71

FUSE WIRE

FUSE WIRE

8-59

BRACKET, STARTER MOTOR

BRACKET, STARTER MOTOR

8-80

WIRING DIAGRAM DECAL, F8A3/9.8A3 (EF,EFT)

WIRING DIAGRAM DECAL, F8A3/9.8A3 (EF,EFT)

8-25

BOLT, 6-16 PRE-COATED

BOLT, 6-16 PRE-COATED

8-27

ELECTRIC BRACKET

ELECTRIC BRACKET

8-74

STAY, TERMINAL HOLDER

STAY, TERMINAL HOLDER

8-82

PROTECTOR

PROTECTOR

8-4

PULSER COIL

PULSER COIL

8-37

POWER TILT SOLENOID SWITCH A

POWER TILT SOLENOID SWITCH A

8-23

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-44

IGNITION COIL

IGNITION COIL

8-48

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-58

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-61

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-39

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

8-60

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-57

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-46

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-38

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-63

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-10

BOLT

BOLT

8-78

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-77

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-15

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-16

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-36

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-65

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-9

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-8

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-17

BRACKET, C.D. UNIT

BRACKET, C.D. UNIT

8-72

FUSE, 20A

FUSE, 20A

8-53

PINION ASSY

PINION ASSY

8-55

CARBON BRUSH (+) WITH SPRING

CARBON BRUSH (+) WITH SPRING

8-20

MOUNT, RUBBER

MOUNT, RUBBER

8-67

STARTER CABLE

STARTER CABLE

8-64

BATTERY CABLE L=2500

BATTERY CABLE L=2500

8-66

TERMINAL CAP

TERMINAL CAP

8-62

RECTIFIER

RECTIFIER

8-54

BRUSH HOLDER

BRUSH HOLDER

8-56

CARBON BRUSH (-) WITH SPRING

CARBON BRUSH (-) WITH SPRING

8-52

STARTER MOTOR (S106-12B)

STARTER MOTOR (S106-12B)

8-19

WASHER

WASHER

8-79

COVER

COVER

8-75

HOLDER, CABLE TERMINAL

HOLDER, CABLE TERMINAL

8-12

CORD ASSY, C.D. UNIT

CORD ASSY, C.D. UNIT

8-1

FLYWHEEL CUP

FLYWHEEL CUP

8-24

C.D. IGNITION UNIT (CU7256)

C.D. IGNITION UNIT (CU7256)

8-3

ALTERNATOR

ALTERNATOR

8-2

EXCITER COIL

EXCITER COIL

8-6

NUT, MAGNETO

NUT, MAGNETO

8-30

MOUNT, RUBBER

MOUNT, RUBBER

8-31

WASHER

WASHER

8-50

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

8-13

GROMMET

GROMMET

8-14

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

8-5

MAGNETO KEY

MAGNETO KEY

8-18

MOUNT RUBBER

MOUNT RUBBER

8-28

MOUNT RUBBER

MOUNT RUBBER

8-83

CLAMP

CLAMP

8-34

CLAMP

CLAMP

8-73

STAY, FUSE HOLDER

STAY, FUSE HOLDER

8-47

CLAMP

CLAMP

8-35

STARTER SOLENOID

STARTER SOLENOID

8-29

WASHER

WASHER

8-32

COLLAR, 6.2-9-7.4

COLLAR, 6.2-9-7.4

8-22

COLLAR, 6.2-9-7.4

COLLAR, 6.2-9-7.4

8-51

SWITCH, OIL PRESSURE

SWITCH, OIL PRESSURE

8-45

PLUG CAP

PLUG CAP

8-43

CABLE ASSY B

CABLE ASSY B

8-40

CABLE ASSY A

CABLE ASSY A

8-26

WASHER

WASHER

8-21

WASHER

WASHER

8-7

WASHER

WASHER
