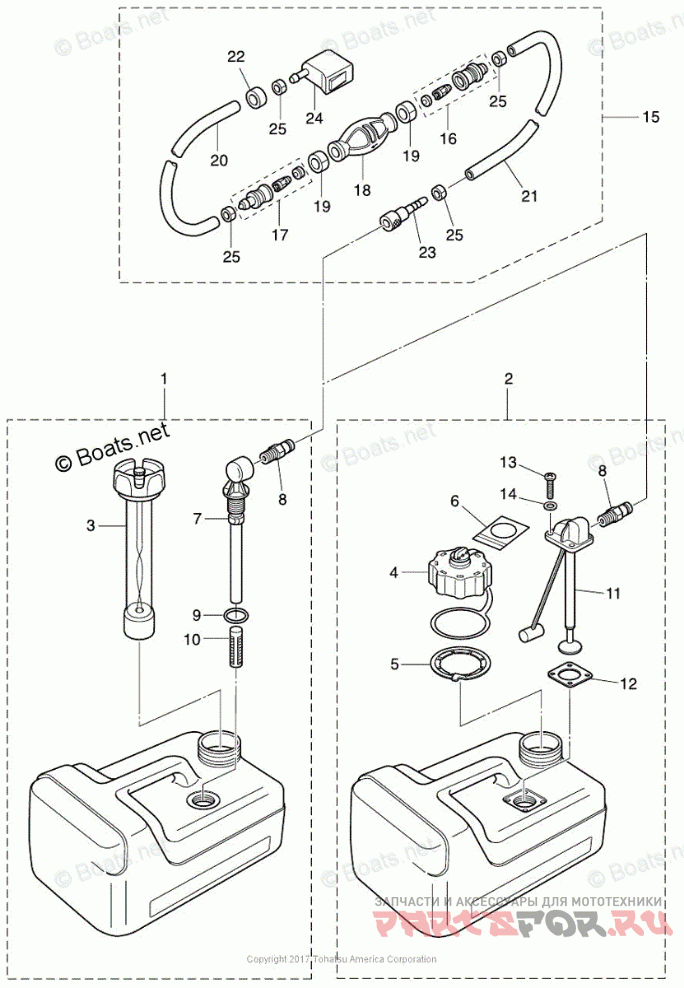

FUEL TANK

Tohatsu MFS8B

Tohatsu
#oem кодцена
20-25
332702010
Деталь CLAMP
20-17
3C7702241
Деталь JOINT A ASSY, OUTER
20-20
98AB701000
Деталь FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
20-21
98AB701000
Деталь FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
20-1
3V1701671
Деталь FUEL TANK 12L (3.1 GAL) EPA CAP (TOHATSU)
20-2
3V1701671
Деталь FUEL TANK 12L (3.1 GAL) EPA CAP (TOHATSU)
20-11
3V1701570
Деталь FUEL PICK-UP ASSY W/GAUGE, 3 GAL.(EPA)
20-15
3H6702002
Деталь PRIMER BULB ASSY (4-STROKE - 4-50hp)
20-22
3GR702800
Деталь FUEL CONNECTOR MARK
20-24
3GR702500
Деталь FUEL CONN, ENGINE SIDE, FEMALE 4 STROKE, 4-50
20-23
3GF702810
Деталь FUEL CONNECTOR
20-20
3GF702410
Деталь HOSE (LOW PERMEATION)
20-21
3GF702400
Деталь HOSE (LOW PERMEATION)-DISCONTINUED
20-18
3GF702111
Деталь PRIMER BULB, LOW PERMEATION
20-16
3C7702201
Деталь JOINT A ASSY, INNER
20-4
3AC700521
Деталь FUEL TANK CAP ASSY (EPA/CARB)
20-19
3C7702170
Деталь CLAMP
20-18
3C7702111
Деталь PRIMER BULB
20-9
3C7701990
Деталь O-RING
20-10
3C7701130
Деталь FILTER SCREEN 9754
20-7
3B2701550
Деталь ELBOW TUBING AND CLAMP ASSY
20-3
3B2700501
Деталь FUEL GAUGE VENTED CAP, 3 GAL TANK
20-15
3AD702002
Деталь PRIMER BULB ASSY (LOW PERMEATION)
20-6
3AC703521
Деталь INSTRUCTION TAG
20-12
3AC701500
Деталь GASKET, FUEL PICK-UP
20-14
3AC701450
Деталь WASHER, FUEL PICK-UP
20-13
3AC701400
Деталь SCREW, FUEL PICK-UP
20-5
3AC700550
Деталь RETAINING RING, FUEL CAP
20-8
9999800MA2
Деталь FUEL CONN, TANK SIDE MALE (1/4 IN. NPT)
