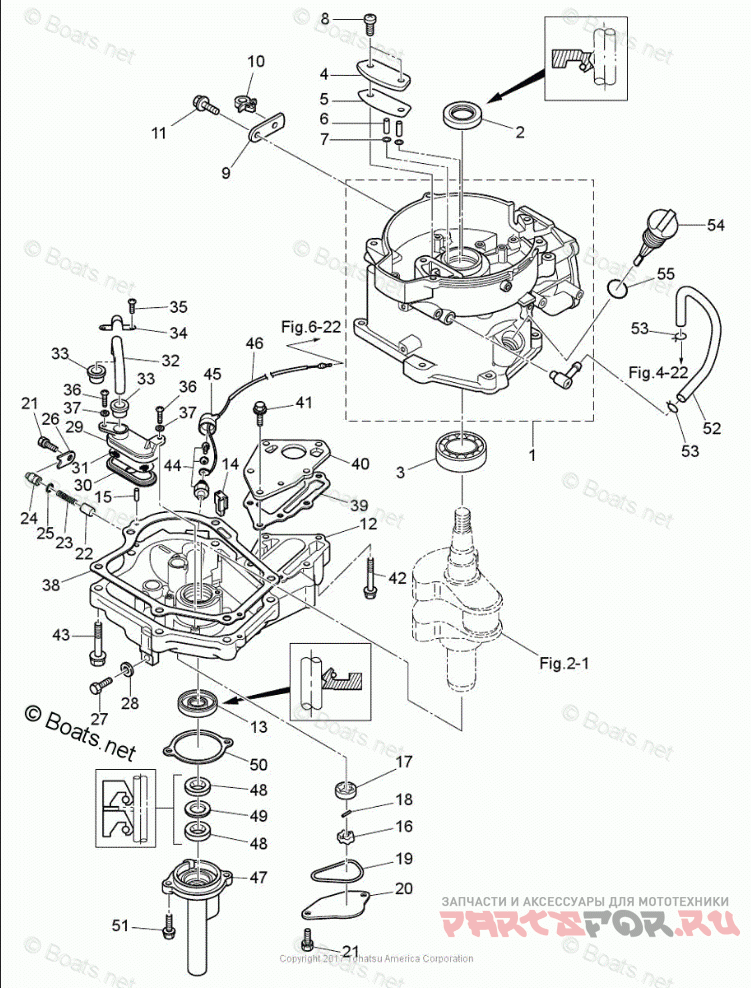

CYLINDER + OIL PAN

Tohatsu MFS5CLPG (Propane)

Tohatsu
#oem кодцена
1-15
345011110
DOWEL PIN 6-12
1-52
3R1074350
BREATHER PIPE
1-16
3H6076010
ROTOR, OIL PUMP INNER
1-17
3H6076020
ROTOR, OIL PUMP OUTER
1-18
3H6076030
PIN, OIL PUMP
1-20
3H6076060
COVER, OIL PUMP
1-44
3H6076110
SWITCH, OIL PRESSURE
1-22
3H6076210
PLUNGER, CONTROL
1-23
3H6076220
SPRING, PRESSURE
1-24
3H6076230
SEAT, SPRING
1-27
3H6077051
BOLT, DRAIN
1-26
3H6671150
COVER, PLUNGER
1-45
3KY076120
GROMMET
1-6
3R1074390
COLLAR, BREATHER
1-54
3H6074210
FILLER CAP, ENGINE OIL
1-19
3R1076050
O-RING, OIL PUMP
1-41
9101145620
BOLT (10 MULTIPLE)
1-42
9101145640
BOLT (10 MULTIPLE)
1-21
9101216616
BOLT (10 MULTIPLE)
1-43
9101245840
BOLT
1-11
9101E35612
BOLT WASHER (10 MULTIPLE)
1-51
9101E35620
BOLT WASHER (10 MULTIPLE)
1-35
9215216512
SCREW
1-8
9215216616
SCREW
1-37
9401210500
WASHER (10 MULTIPLE)
1-7
9414030500
WAVE WASHER
1-55
3H6074220
O-RING
1-34
3H6074170
STOPPER, STRAINER
1-25
345660210
O-RING A
1-10
3GR069730
CLAMP
1-47
369012104
HEAD, CRANKCASE
1-50
369012140
GASKET
1-49
369012170
SPACER
1-2
3AB001210
OIL SEAL
1-5
3AS074320
GASKET, BREATHER CAP
1-12
3AS077090
OIL PAN, NSF4/5/6A,B,C
1-4
3ASB074310
CAP, BREATHER CHAMBER, 4/5/6B
1-53
3C7022150
CLIP
1-36
3C8024200
BOLT 5-16 PRECOATED
1-13
3GR001220
OIL SEAL
1-48
3GR012150
OIL SEAL
1-46
3GR076130
LEAD WIRE, OIL PRESSURE SWITCH (L=390MM)
1-33
3H6074160
SEAL RUBBER, STRAINER
1-9
3GR635050
HOLDER, CABLE
1-1
3GRB011841
CYLINDER, 4/5/6C, 4-ST. (AMB)
1-40
3H6023021
PLATE, EXHAUST NSF5A
1-39
3H6023050
GASKET, EXHAUST PLATE
1-38
3H6074020
GASKET, OIL PAN
1-14
3H6074040
GROMMET, OIL PAN
1-28
3H6074060
WASHER
1-29
3H6074110
BODY, STRAINER
1-30
3H6074120
CAP, STRAINER
1-31
3H6074130
MESH, STRAINER
1-32
3H6074150
PIPE, STRAINER
1-3
960136205
BALL BEARING
