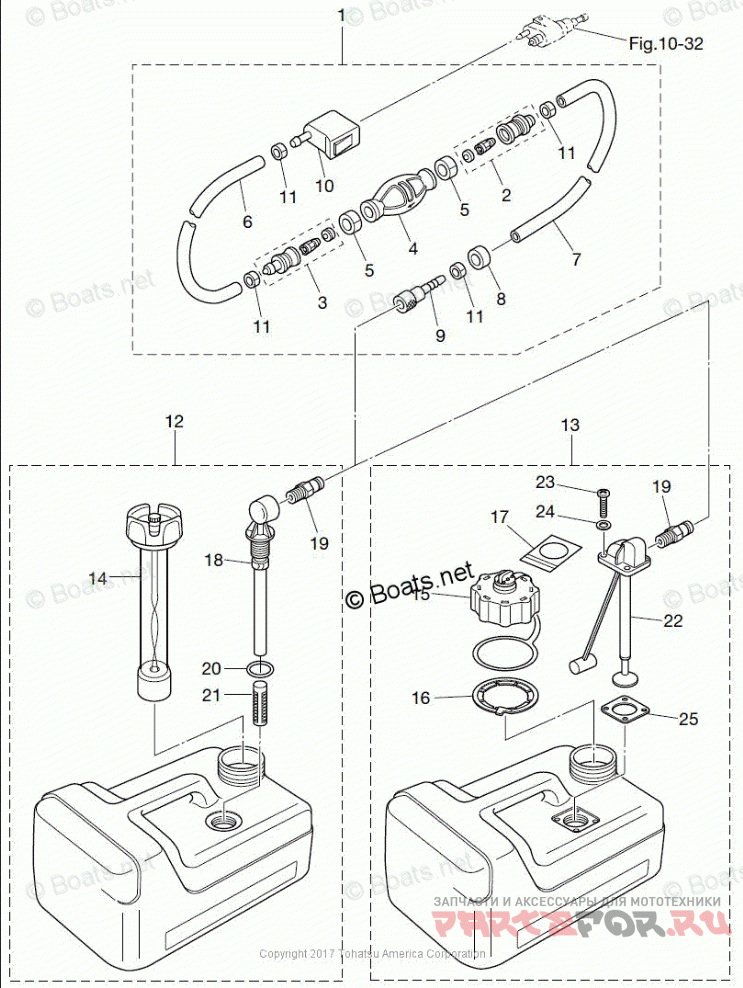

SEPARATE FUEL TANK

Tohatsu MFS4C

Tohatsu
#oem кодцена
12-11
332702010
Деталь CLAMP
12-3
3C7702241
Деталь JOINT A ASSY, OUTER
12-6
98AB701000
Деталь FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
12-7
98AB701000
Деталь FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
12-12
3V1701671
Деталь FUEL TANK 12L (3.1 GAL) EPA CAP (TOHATSU)
12-13
3V1701671
Деталь FUEL TANK 12L (3.1 GAL) EPA CAP (TOHATSU)
12-22
3V1701570
Деталь FUEL PICK-UP ASSY W/GAUGE, 3 GAL.(EPA)
12-1
3H6702002
Деталь PRIMER BULB ASSY (4-STROKE - 4-50hp)
12-8
3GR702800
Деталь FUEL CONNECTOR MARK
12-10
3GR702500
Деталь FUEL CONN, ENGINE SIDE, FEMALE 4 STROKE, 4-50
12-9
3GF702810
Деталь FUEL CONNECTOR
12-6
3GF702410
Деталь HOSE (LOW PERMEATION)
12-7
3GF702400
Деталь HOSE (LOW PERMEATION)-DISCONTINUED
12-4
3GF702111
Деталь PRIMER BULB, LOW PERMEATION
12-2
3C7702201
Деталь JOINT A ASSY, INNER
12-15
3AC700521
Деталь FUEL TANK CAP ASSY (EPA/CARB)
12-5
3C7702170
Деталь CLAMP
12-4
3C7702111
Деталь PRIMER BULB
12-20
3C7701990
Деталь O-RING
12-21
3C7701130
Деталь FILTER SCREEN 9754
12-18
3B2701550
Деталь ELBOW TUBING AND CLAMP ASSY
12-14
3B2700501
Деталь FUEL GAUGE VENTED CAP, 3 GAL TANK
12-1
3AD702002
Деталь PRIMER BULB ASSY (LOW PERMEATION)
12-17
3AC703521
Деталь INSTRUCTION TAG
12-25
3AC701500
Деталь GASKET, FUEL PICK-UP
12-24
3AC701450
Деталь WASHER, FUEL PICK-UP
12-23
3AC701400
Деталь SCREW, FUEL PICK-UP
12-16
3AC700550
Деталь RETAINING RING, FUEL CAP
12-19
9999800MA2
Деталь FUEL CONN, TANK SIDE MALE (1/4 IN. NPT)
