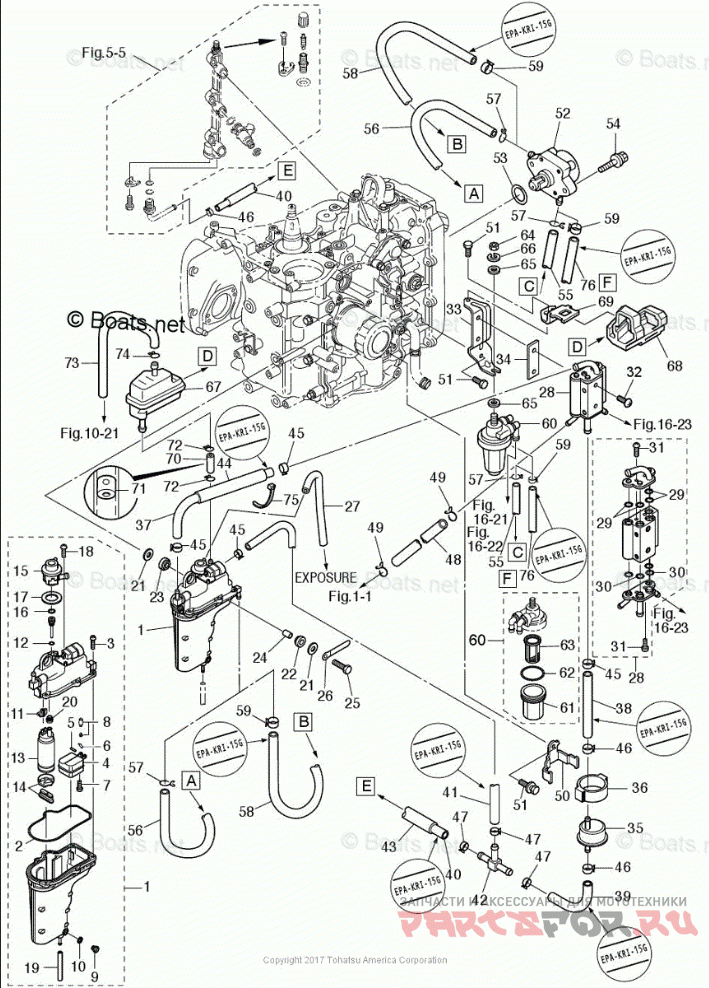

FUEL SYSTEM

Tohatsu MFS30C

Tohatsu
#oem кодцена
6-74
338011330
LOCK RING
6-23
3B7069200
MOUNT RUBBER
6-48
3NV652100
COOLING HOSE, CYLINDER FUEL COOLER
6-76
3NV040550
HOSE, LOW PERMEATION
6-53
3H8624150
O-RING
6-52
3H8040001
FUEL PUMP, F25/30A/B F9.9/15/18/20
6-59
3GT351430
CLIP, @ 9.4
6-5
3F3032320
ARM PIN, FLOAT
6-40
3AL022100
LOW PERMEATION HOSE
6-8
3R3032390
FLOAT VALVE
6-71
3AD101700
ORIFICE
6-43
3AD061570
HOSE PROTECTOR
6-44
3AD061330
PROTECTOR @18-130
6-20
3AD043190
GROMMET
6-12
3AD031160
O-RING
6-61
3AD022370
CUP
6-62
3AD022350
O-RING
6-58
3NW040550
HOSE, LOW PERMEATION
6-26
3T4069721
CLAMP
6-60
3AD022300
FUEL FILTER ASSY
6-65
9401030800
WASHER (10 MULTIPLE)
6-55
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
6-70
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
6-56
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
6-27
98AB301000
FUEL PIPE 3MM 1/8 (1 EA.=1 METER)
6-19
98AB301000
FUEL PIPE 3MM 1/8 (1 EA.=1 METER)
6-66
9413030800
SPRING WASHER (10 MULTIPLE)
6-64
9301030800
NUT (10 MULTIPLE)
6-47
3T5100860
CLAMP, 21/32 (17.5mm)
6-32
9219030635
SCREW
6-3
9215036416
SCREW
6-31
9215036410
SCREW (10 MULTIPLE)
6-7
9215030408
SCREW (10 MULTIPLE)
6-54
9101E35625
BOLT WASHER (10 MULTIPLE)
6-51
9101E35616
BOLT WASHER (10 MULTIPLE)
6-25
9101E30630
BOLT (10 MULTIPLE)
6-63
3AD022340
FILTER
6-41
3AD022100
LOW PERMEATION HOSE
6-72
338022150
CLIP, FUEL PIPE
6-39
3AC022100
LOW PERMEATION HOSE
6-9
3AC032920
DRAIN SCREW
6-2
3AC032350
O-RING
6-18
3AC032340
SCREW
6-4
3AC032300
FLOAT
6-10
3AC031160
O-RING, DRAIN SCREW
6-33
3AC022390
PLATE
6-38
3AC022090
LOW PERMEATION HOSE
6-17
3AC043130
GROMMET
6-75
369843980
WIRE TIE BAND
6-21
346671150
WASHER
6-24
346671141
SPACER
6-22
346671130
MOUNT RUBBER
6-6
344032440
CLIP
6-49
338022150
CLIP, FUEL PIPE
6-57
338022150
CLIP, FUEL PIPE
6-13
3AC043100
FUEL FEED PUMP
6-14
3AC043220
FILTER (INLET)
6-37
3AD022090
LOW PERMEATION HOSE
6-1
3AC101500
VAPOR SEPARATOR
6-35
3ACB101430
FUEL FILTER, HIGH PRESSURE
6-69
3AC761740
AIR VENT STAY
6-42
3AC700130
T-NIPPLE
6-67
3AC103200
AIR VENT ASSY
6-28
3AC101750
FUEL COOLER ASSY
6-30
3AC101640
O-RING
6-15
3AC101540
FUEL REGULATOR
6-36
3AC101450
RUBBER MOUNT, FUEL FILTER
6-68
3AC063020
RUBBER MOUNT, AIR VENT
6-50
3AC101440
BAND, FUEL FILTER
6-16
3AC100950
O-RING
6-45
3AC100870
CLAMP
6-29
3AC100460
O-RING
6-34
3AC100190
GASKET, FUEL COOLER
6-46
3AC090561
CLIP
6-11
3AC069520
TERMINAL HOLDER
6-73
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
