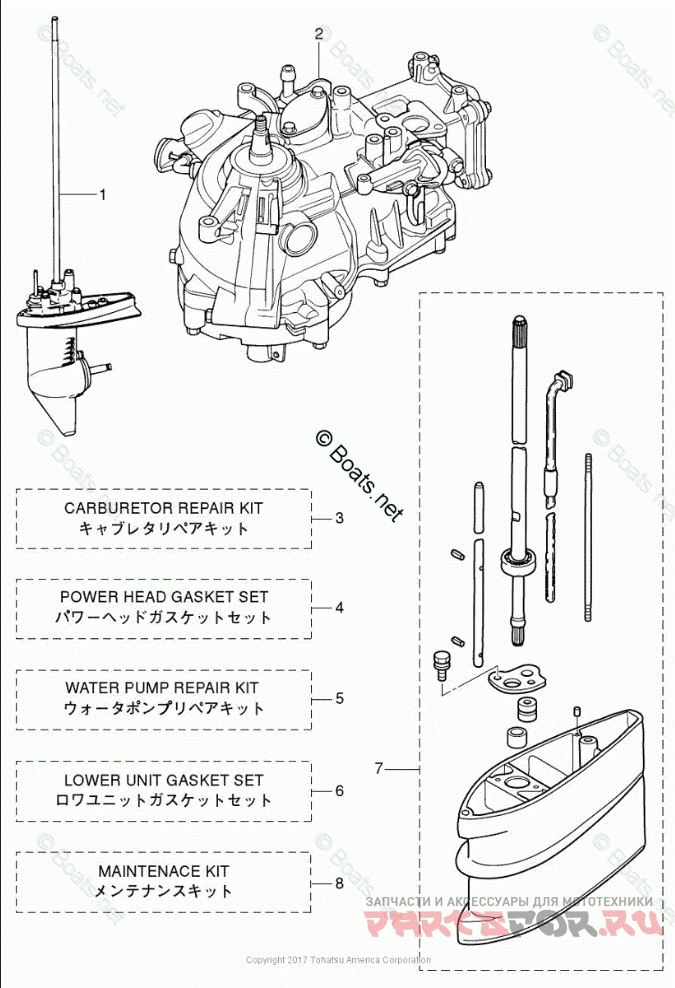

ASSEMBLY & KIT PARTS

Tohatsu MFS3.5B

Tohatsu
#oem кодцена
17-7
172360080
GROMMET
17-4
3H6020110
GASKET, CARBURETOR
17-5
3F0650110
LINER,WP-3.5B
17-8
3F0650180
GASKET, WATER PUMP-3.5B
17-5
3F0650180
GASKET, WATER PUMP-3.5B
17-6
3F0650180
GASKET, WATER PUMP-3.5B
17-6
3F0650200
GASKET, WATER PUMP-3.5B
17-8
3F0650290
GASKET, GUIDE PLATE
17-5
3F0650290
GASKET, GUIDE PLATE
17-6
3F0650290
GASKET, GUIDE PLATE
17-7
3F0660130
CAM ROD L
17-6
3F0873210
LOWER UNIT GASKET SET
17-3
3GT032310
FLOAT, F3.5B/2.5B/2B
17-3
3GT871221
CARBURETOR REPAIR KIT F2/2.5/3/5B
17-2
3GTB870903
ENGINE SHORT BLOCK, 3.5B/2.5B/2B
17-7
3GU600010
BOLT, 6-30 PRECOATED
17-3
3H6020110
GASKET, CARBURETOR
17-7
3F0643020
DRIVE SHAFT ASSY L
17-4
3V1020120
O-RING
17-8
9515030435
SPLIT PIN (10 MULTIPLE)
17-7
9514070308
SPRING PIN (10 MULTIPLE)
17-7
9401130600
WASHER (10 MULTIPLE)
17-7
9301030600
NUT (10 MULTIPLE)
17-3
9225036412
SCREW
17-7
9101E35612
BOLT WASHER (10 MULTIPLE)
17-4
3R0074220
O-RING
17-3
3H6032220
O-RING, FLOAT CHAMBER
17-8
3H6074060
WASHER
17-4
3H6032930
O-RING, DRAIN SCREW
17-3
3H6032930
O-RING, DRAIN SCREW
17-3
3H6032440
CLIP
17-3
3H6032400
FLOAT VALVE
17-3
3H6032320
ARM PIN, FLOAT
17-8
3F0650110
LINER,WP-3.5B
17-7
3F0611011
STUD BOLT
17-6
301660230
O-RING
17-4
3AB010241
CYLINDER HEAD COVER GASKET
17-6
309601110
OIL SEAL
17-8
309641261
SHEAR PIN-PACKAGE OF 5-(5/32 X 1 : 4mm X 24mm)
17-8
332600060
GASKET (10 MULTIPLE)
17-6
332600060
GASKET (10 MULTIPLE)
17-8
338602182
ANODE
17-6
345650150
O-RING
17-6
369650211
IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-8
369650211
IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-5
369650211
IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-6
369650220
KEY
17-8
369650220
KEY
17-5
369650220
KEY
17-6
369660211
O-RING A
17-4
3AB001210
OIL SEAL
17-4
3AB010320
THERMOSTAT CAP GASKET
17-6
3F0602230
OIL SEAL
17-8
3AB650250
WATER PUMP GUIDE PLATE
17-7
3ABQ873121
EXTENSION HOUSING KIT L
17-7
3ABQ611000
EXTENSION HOUSING L, F2.5AB/3.5AB
17-5
3AB873220
WATER PUMP REPAIR KIT
17-4
3AB871210
POWER HEAD GASKET SET
17-7
3AB651920
WATER PIPE L, F2.5A/3.5A
17-5
3AB650250
WATER PUMP GUIDE PLATE
17-7
3AB643320
DRIVE SHAFT BUSHING STOPPER
17-7
3AB011110
DOWEL PIN, 6-12
17-4
3AB610120
DRIVE SHAFT HOUSING GASKET
17-7
3AB600030
DRIVE SHAFT BUSHING
17-4
3AB074320
BREATHER CHAMBER COVER GASKET
17-4
3AB074020
OIL PAN GASKET
17-4
3AB021040
INTAKE MANIFOLD GASKET
17-4
3AB012150
OIL SEAL
17-8
970101103
SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
