CARBURETOR для лодочных моторов Tohatsu MFS15D (2017)

Москва и регионы России

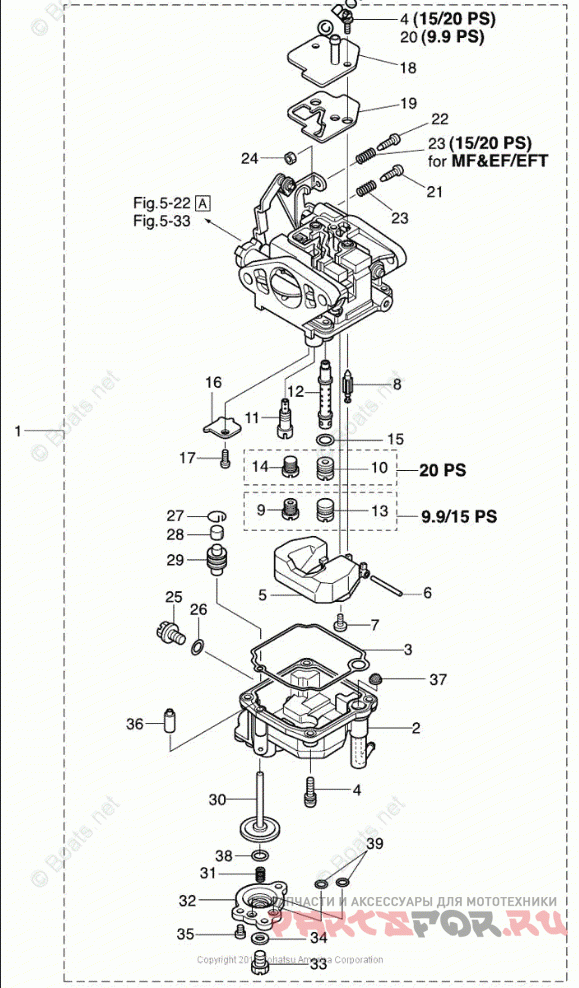

CARBURETOR

Tohatsu MFS15D

CARBURETOR

#

oem код

название

цена

6-27

RETAINING RING

RETAINING RING

6-8

FLOAT VALVE

FLOAT VALVE

6-30

PLUNGER

PLUNGER

6-10

MAIN JET #121, F20C

MAIN JET #121, F20C

6-5

FLOAT

FLOAT

6-6

FLOAT ARM PIN

FLOAT ARM PIN

6-38

O-RING

O-RING

6-15

O-RING

O-RING

6-16

PLATE

PLATE

6-13

PLUG

PLUG

6-39

O-RING

O-RING

6-24

NUT

NUT

6-23

SPRING

SPRING

6-14

PLUG

PLUG

6-21

STOP SCREW

STOP SCREW

6-7

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

6-35

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

6-17

SCREW

SCREW

6-31

COIL SPRING

COIL SPRING

6-36

CHECK VALVE

CHECK VALVE

6-28

CAP

CAP

6-12

MAIN NOZZLE, F15C (MF/EF)

MAIN NOZZLE, F15C (MF/EF)

6-33

DRAIN SCREW

DRAIN SCREW

6-34

DRAIN SCREW GASKET

DRAIN SCREW GASKET

6-29

RUBBER BOOT

RUBBER BOOT

6-2

FLOAT CHAMBER, F15C/20C

FLOAT CHAMBER, F15C/20C

6-3

FLOAT CHAMBER GASKET

FLOAT CHAMBER GASKET

6-1

CARBURETOR, F15C (MF/EF)

CARBURETOR, F15C (MF/EF)

6-1

CARBURETOR, F15C (EP/EPT)

CARBURETOR, F15C (EP/EPT)

6-9

MAIN JET #99, F15C

MAIN JET #99, F15C

6-32

DIAPHRAGM COVER

DIAPHRAGM COVER

6-11

SLOW JET #46, F15C

SLOW JET #46, F15C

6-37

FUEL FILTER

FUEL FILTER

6-22

STOP SCREW

STOP SCREW

6-18

CARBURETOR COVER

CARBURETOR COVER

6-19

CARBURETOR COVER GASKET

CARBURETOR COVER GASKET

6-25

DRAIN SCREW

DRAIN SCREW

6-26

GASKET

GASKET

6-4

SCREW

SCREW
