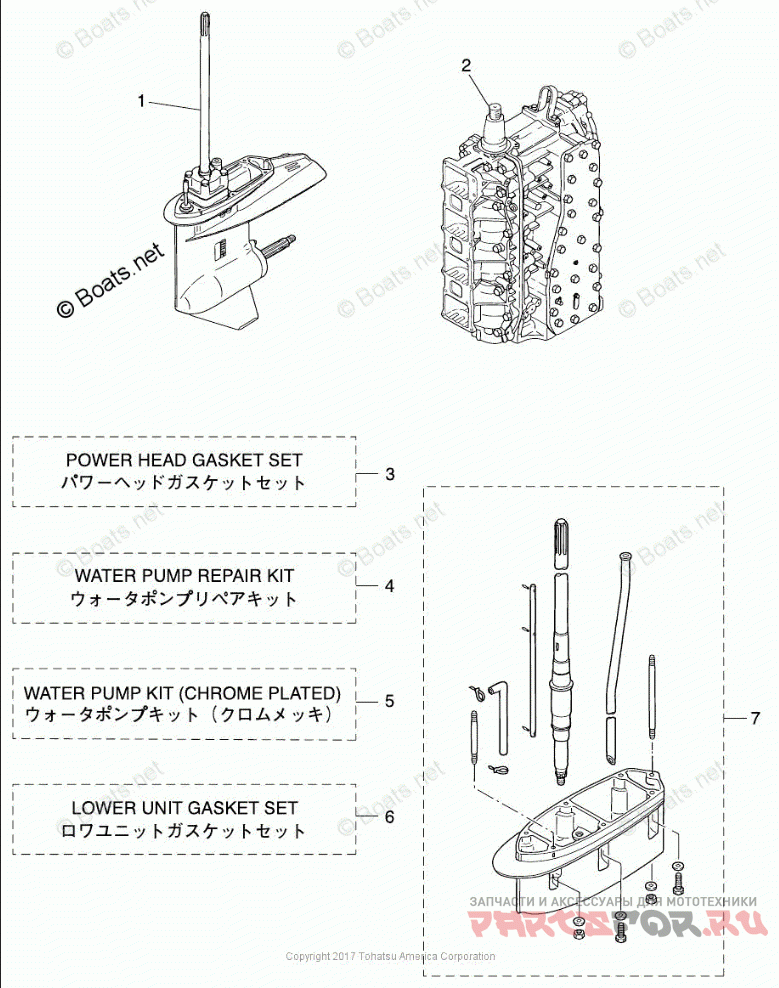

ASSEMBLY & KIT PARTS

Tohatsu MD115A2

Tohatsu
#oem кодцена
27-3
171000530
O-RING
27-3
3T1010240
GASKET, CYLINDER HEAD COVER
27-4
3C7650290
GASKET, PUMP GUIDE PLATE
27-7
3C7651200
WATER PIPE UL
27-5
3C7652311
CHROME PLATED WATER PUMP KIT
27-5
3C7652380
LINER CHROME PLATED WATER PUMP CASE
27-5
3C7652390
GUIDE PLATE CHROME PLATED WATER PUMP
27-6
3C7873212
LOWER UNIT GASKET SET
27-4
3C7873222
WATER PUMP REPAIR KIT
27-1
3C7Q87302A
LOWER UNIT (L)
27-1
3C7Q87304A
LOWER UNIT UL (AMB)
27-7
3C7Q873142
EXTENSION HOUSING KIT UL (AMB)
27-3
3C8710160
GASKET,OIL TANK CAP
27-2
3HKB870901
SHORT BLOCK, D115A2
27-3
3T1001210
OIL SEAL, 35-58-9
27-3
3T1010050
GASKET, CYLINDER HEAD
27-3
3T1022450
GASKET, AIR CHAMBER COVER
27-5
3C7650290
GASKET, PUMP GUIDE PLATE
27-3
3T1101040
GASKET, THROTTLE BODY
27-7
3T1600011
BOLT 8-35
27-3
3T1871213
POWER HEAD GASKET SET
27-7
3T5843980
LEAD WIRE BAND, 104
27-3
3T9001210
OIL SEAL
27-3
3T9010321
GASKET, THERMOSTAT CAP
27-7
9153E30825
STUD BOLT
27-4
9161E30885
BOLT
27-7
9301030800
NUT (10 MULTIPLE)
27-7
9401030800
WASHER (10 MULTIPLE)
27-4
9401030800
WASHER (10 MULTIPLE)
27-7
9402E31000
WASHER (10 MULTIPLE)
27-7
9514033510
SPRING PIN (10 MULTIPLE)
27-7
9514033516
SPRING PIN (10 MULTIPLE)
27-6
3C7650290
GASKET, PUMP GUIDE PLATE
27-4
3C7650250
GUIDE PLATE, WATER PUMP
27-6
332600060
GASKET (10 MULTIPLE)
27-4
3B7650221
IMPELLER KEY
27-6
345660210
O-RING A
27-3
346049012
GASKET
27-6
346640230
SHIM KIT
27-3
3B7022350
O-RING A
27-3
3B7022360
O-RING B
27-7
3B7600015
BOLT
27-6
3B7600161
GASKET
27-6
3B7601030
O-RING
27-6
3B7601110
OIL SEAL
27-6
3B7602190
PACKING, TRIM TAB
27-7
3B7611120
STUD BOLT
27-7
3B7611140
NUT
27-6
3B7611812
GASKET
27-6
3B7650150
O-RING
27-7
3B7660141
CAM ROD-UL
27-5
3C7650211
IMPELLER (NS120A/140A/70/90TLDI)
27-6
3C7610122
GASKET, DRIVE SHAFT HOUSING
27-4
3C7650211
IMPELLER (NS120A/140A/70/90TLDI)
27-4
3C7650180
SEAL, WATER PUMP CASE
27-6
3C7650180
SEAL, WATER PUMP CASE
27-5
3C7650180
SEAL, WATER PUMP CASE
27-4
3C7650110
LINER, WATER PUMP CASE
27-7
3C7643033
DRIVE SHAFT UL
27-6
3C7602231
OIL SEAL (70B/70C-90A-140A2 REQ 2)
27-6
3B7660230
O-RING
27-6
3C7023122
GASKET, EXHAUST PIPE
27-3
3C7023051
GASKET, EXHAUST COVER
27-3
3C7014030
O-RING
27-3
3C7013035
GASKET, ENGINE BASE
27-3
3C7012150
OIL SEAL, 19.6-35-10
27-7
3B7Q611100
EXTENSION HOUSING UL (AMB)
27-7
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
