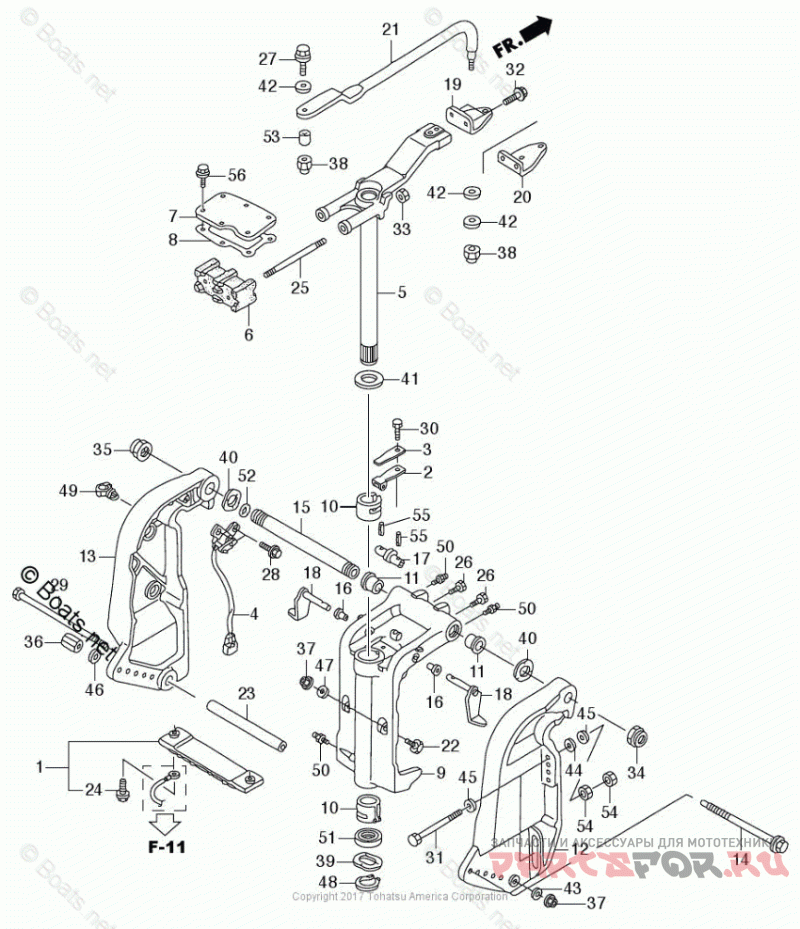

Stern Bracket + Swivel Case

Tohatsu BFT115A

Tohatsu
#oem кодцена
F-10-49
H76390681A01
Деталь CLIP, WIRE HARN
F-10-14
HZW550341010
Деталь ROD, ADJUSTING
F-10-11
HZW150214000
Деталь BUSH, SWIVEL CASE
F-10-12
HZW150301070ZC
Деталь BRACKET, R. STERN
F-10-13
HZW150311070ZC
Деталь BRACKET, L. STERN
F-10-21
HZW153238010
Деталь ROD, STEERING
F-10-27
HZW190105000
Деталь BOLT, 3/8-24 UNF
F-10-37
HZW490306003
Деталь NUT, FLANGE, 10MM
F-10-33
HZW590302003
Деталь NUT, FLANGE, 12MM
F-10-1
HZW106411020
Деталь METAL KIT, ANODE
F-10-36
HZW590304000
Деталь NUT, ADJUSTING ROD
F-10-24
HZW990009000
Деталь BOLT, FLANGE, 6X23
F-10-28
HZW990105000
Деталь BOLT, FLANGE, 6X20
F-10-32
HZW990154000
Деталь BOLT, FLANGE, 10X25
F-10-31
HZX290129000
Деталь BOLT, HEX, 12 X 130
F-10-4
HZY635660013
Деталь SENSOR ASSY, TRIM ANGLE
F-10-31
HZZ390129000
Деталь BOLT, HEX, 12 X 119
F-10-9
HZW150201040ZC
Деталь CASE, SWIVEL
F-10-50
HZV790951010
Деталь NIPPLE, GREASE
F-10-43
H92190511000
Деталь WASHER, PLAIN, 10MM
F-10-40
HZV590502000
Деталь WASHER, WAVE, 26MM
F-10-54
HCO94001124900S
Деталь NUT, HEX 12MM
F-10-42
HZV490514000
Деталь WASHER, 10MM
F-10-16
HZV550522000
Деталь BUSH, TILT ARM
F-10-34
HZV590304013
Деталь NUT, SELF-LOCK(7/8-14UNF)
F-10-38
HZV590307003
Деталь NUT, SELF LOCK, 3/8-24 UNF
F-10-39
HZV590501000
Деталь WAVE WASHER, 40MM
F-10-41
HZV590504000
Деталь WASHER, 34MM
F-10-53
HZV591560000
Деталь COLLAR, STEERING ROD
F-10-44
HZV590552000
Деталь WASHER, PLAIN, 12MM
F-10-45
HZV590559000
Деталь WASHER, PLAIN 12MM
F-10-46
HZV590559000
Деталь WASHER, PLAIN 12MM
F-10-47
HZV590563000
Деталь WASHER, PLAIN, 10MM
F-10-48
HZV590651000
Деталь CIRCLIP, 39MM
F-10-51
HZV591256003
Деталь OIL SEAL (39.5X52X6)
F-10-52
HZV591352000
Деталь O-RING, 15.54X2.26
F-10-10
HZZ550211000
Деталь LINER, SWIVEL CASE
