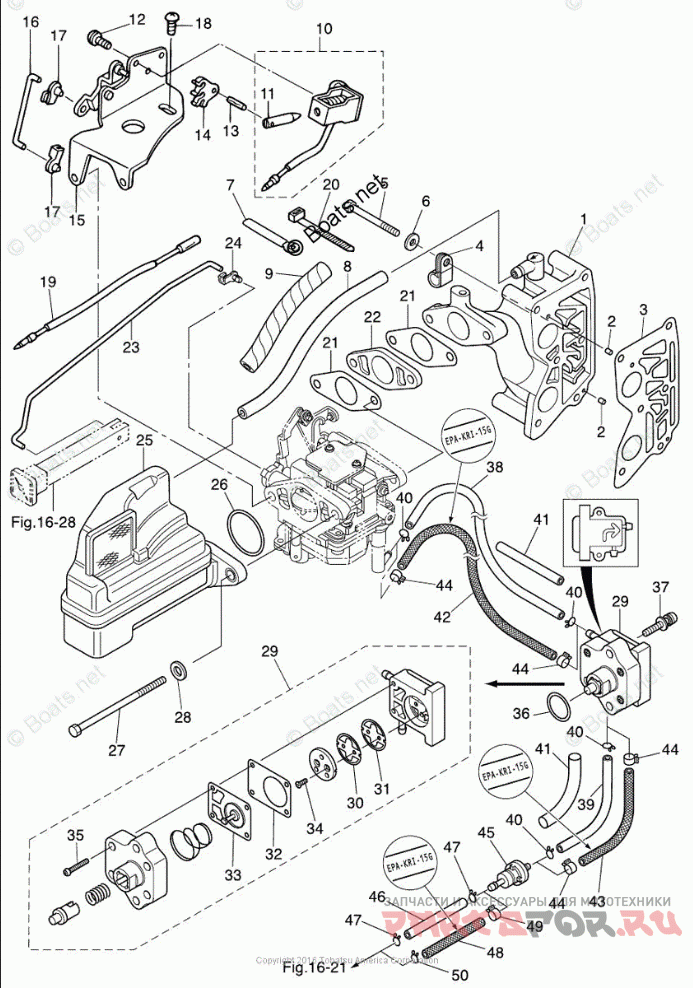

INTAKE MANIFOLD & FUEL PUMP

Tohatsu MFS8B

Tohatsu
#oem кодцена
5-40
338022150
CLIP, FUEL PIPE
5-18
9215030510
SCREW (10 MULTIPLE)
5-10
3V1760500
CHOKE SOLENOID
5-16
3V1760760
LINK ROD
5-15
3V1760781
BRACKET, CHOKE SOLENOID
5-9
3V1761480
SPIRAL TUBE PROTECTOR
5-43
3V2021600
FUEL HOSE, LOW PERMEATION
5-41
3V2061570
PROTECTOR
5-23
3Y3671920
CHOKE ROD
5-27
9161030695
BOLT
5-5
9161140653
BOLT (10 MULTIPLE)
5-37
9215035625
SCREW
5-17
3V1671960
ROD SNAP
5-12
9215036408
SCREW (10 MULTIPLE)
5-34
9216030308
SCREW
5-35
9225036418
SCREW (10 MULTIPLE)
5-28
9401030600
WASHER (10 MULTIPLE)
5-6
9401130600
WASHER (10 MULTIPLE)
5-2
9514030310
SPRING PIN (10 MULTIPLE)
5-13
9514030312
SPRING PIN (10 MULTIPLE)
5-38
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
5-39
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
5-46
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
5-19
3V1725470
ASSIST CORD (BLUE)
5-22
3V1039520
INSULATOR
5-50
338022150
CLIP, FUEL PIPE
5-49
3GT351430
CLIP, @ 9.4
5-47
338022150
CLIP, FUEL PIPE
5-4
345069150
CORD CLAMP A
5-24
346671961
ROD SNAP
5-14
346760570
HOOK
5-11
361760730
PLUNGER, CHOKE SOLENOID
5-45
369022300
FUEL FILTER
5-1
3AA020101
INTAKE MANIFOLD ASSY
5-48
3AA021600
HOSE, LOW PERMEATION
5-42
3BJ021600
HOSE, LOW PERMEATION
5-44
3GT351430
CLIP, @ 9.4
5-29
3H6040007
FUEL PUMP, 4/5/6/8/9.8 4-STR ONLY
5-25
3V1024090
AIR SILENCER
5-33
3H6040050
DIAPHRAGM
5-31
3H6040141
CHECK VALVE (R)
5-32
3H6040280
GASKET
5-30
3H6040440
CHECK VALVE (P)
5-36
3H6074220
O-RING
5-7
3T4069721
CLAMP
5-20
3T5843980
LEAD WIRE BAND, 104
5-21
3V1020110
GASKET, CARBURETOR
5-26
3V1020120
O-RING
5-3
3V1021040
GASKET, INTAKE MANIFOLD
5-8
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
