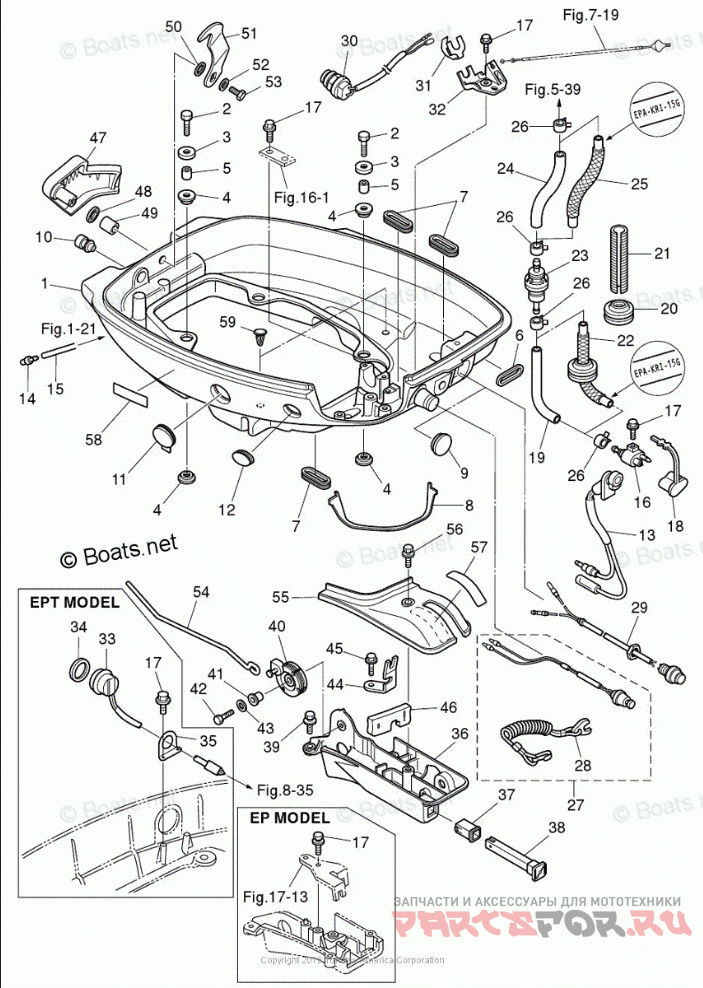

BOTTOM COWL

Tohatsu MFS20D

Tohatsu
#oem кодцена
15-48
338671470
SEAL RING
15-47
3R3Q671410
HOOK LEVER
15-36
3BJQ674800
BRACKET, SHIFT LEVER
15-38
3C8671511
CHOKE KNOB
15-37
3C8671560
BUSHING
15-34
3F3726161
GASKET, PTT SWITCH NS70B, D40/50B2
15-26
3GT351430
CLIP, @ 9.4
15-58
3H6675720
LABEL, STORAGE
15-18
3H6702620
PROTECTOR, FUEL CONN
15-30
3NV760800
NEUTRAL SWITCH
15-52
3R0663080
WASHER, 6-16-1.5
15-43
3R0663080
WASHER, 6-16-1.5
15-6
3R3671620
GROMMET, BATTERY CORD
15-13
3R3710400
PILOT LAMP ASSY
15-51
3SA671420
COVER, HOOK
15-21
3BJ703130
FUEL HOSE PROTECTOR
15-59
3SA671540
PLASTIC RIVET
15-10
3T5760370
PLUG ,CABLE TERMINAL
15-57
3V9675783
SHIFT DECAL (F-N-R)
15-53
3Y3601080
PRE-COATED BOLT 6-12
15-42
9101030620
BOLT (10 MULTIPLE)
15-2
9101E30630
BOLT (10 MULTIPLE)
15-17
9101E35616
BOLT WASHER (10 MULTIPLE)
15-39
9101E35620
BOLT WASHER (10 MULTIPLE)
15-45
9101E35625
BOLT WASHER (10 MULTIPLE)
15-50
9414031400
WAVE WASHER (10 MULTIPLE)
15-24
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
15-15
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
15-32
3BJ760810
BRACKET, NEUTRAL SWITCH
15-56
3BJ674850
BOLT, 5-35 (WITH WASHER)
15-9
345671170
GROMMET
15-14
3BA011380
WATER NIPPLE
15-20
345760230
GROMMET
15-4
346671130
MOUNT RUBBER
15-5
346671141
SPACER
15-49
350671050
BUSHING, HOOK LEVER
15-28
353068210
SAFETY LANYARD LOCK
15-23
369022300
FUEL FILTER
15-16
394702600
FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50
15-27
398068300
STOP SWITCH ASSY W/LANYARD
15-31
398760830
ACTUATOR, NEUTRAL SWITCH
15-29
3AA760260
MAIN SWITCH
15-33
3AC726150
PTT SWITCH
15-35
3AL726170
BRACKET, PTT SWITCH
15-22
3BA021600
HOSE, LOW PERMEATION
15-8
3BJ674840
SEAL, SHIFT LEVER BRACKET
15-54
3BA636170
THROTTLE ROD
15-12
3BA671870
GROMMET
15-11
3BA726180
GROMMET
15-1
3BAQ671000
BOTTOM COWL, F15C/F20C
15-25
3BH021600
HOSE, LOW PERMEATION
15-40
3BH636220
THROTTLE DRUM ASSY
15-41
3BJ062830
COLLAR, 6.1-14-8.9
15-44
3BJ635080
BRACKET, THROTTLE WIRE
15-7
3BJ662260
GROMMET, SHIFT ROD
15-46
3BJ662600
GROMMET, SHIFT LEVER ROD
15-3
3BJ671150
RUBBER MOUNT WASHER
15-55
3BJ674810
COVER, SHIFT LEVER ROD
15-19
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
