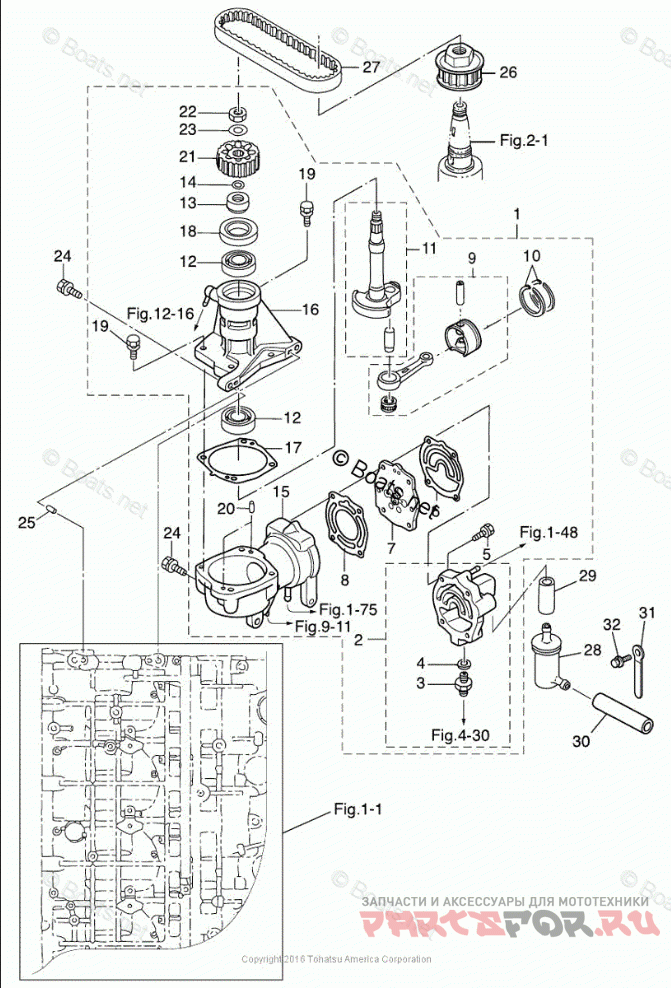

AIR COMPRESSOR

Tohatsu MD115A2

Tohatsu
#oem кодцена
5-22
309001320
Деталь MAGNETO NUT
5-9
3T1873300
Деталь CONNECTING ROD, AIR COMPRESSOR PISTON
5-29
98AT130060
Деталь HOSE
5-12
960106203
Деталь BEARING
5-5
9101E35635
Деталь BOLT WASHER (10 MULTIPLE)
5-19
9101E35625
Деталь BOLT WASHER (10 MULTIPLE)
5-24
9101037835
Деталь BOLT W/SPRING WASHER
5-32
9101036612
Деталь BOLT (10 MULTIPLE)
5-14
3T5100460
Деталь O-RING
5-18
3T5100410
Деталь OIL SEAL
5-4
3T5043090
Деталь WASHER, METAL
5-3
3T5043080
Деталь ADAPTER, HOSE JOINT
5-16
3T1B100490
Деталь HOUSING, COMPRESSOR (MD75-90C2/MD1115A2)
5-15
3T1B100480
Деталь CYLINDER, COMPRESSOR-D75C2/90C2/115A2-AIR COMP
5-11
3T1873311
Деталь CRANK SHAFT, AIR COMPRESSOR
5-21
3T1100620
Деталь DRIVEN PULLEY
5-20
334650120
Деталь DOWEL PIN,4-10
5-27
3T1100610
Деталь DRIVE BELT
5-26
3T1100600
Деталь DRIVE PULLEY
5-17
3T1100540
Деталь GASKET, COMPRESSOR HOUSING
5-13
3T1100420
Деталь COLLAR, 13.5-25-13
5-10
3T1100250
Деталь PISTON RING, COMPRESSOR
5-8
3T1100190
Деталь GASKET, VALVE SEAT
5-6
3T1100120
Деталь GASKET, COMPRESSOR HEAD
5-2
3HKB100090
Деталь COMPRESSOR HEAD (WITH NIPPLE), D115A2
5-1
3HKB100002
Деталь AIR COMPRESSOR. D115A2
5-7
3HK100101
Деталь REED VALVE ASSY, D75C2/90C2/115A2-AIR COMP
5-28
3GF101300
Деталь AIR FILTER MD40/50B2/75/90C2/115A2 (TLDI)
5-23
3B7011160
Деталь WASHER (10 MULTIPLE)
5-31
398069720
Деталь CLAMP
5-25
345011110
Деталь DOWEL PIN 6-12
5-30
98AT130140
Деталь HOSE
