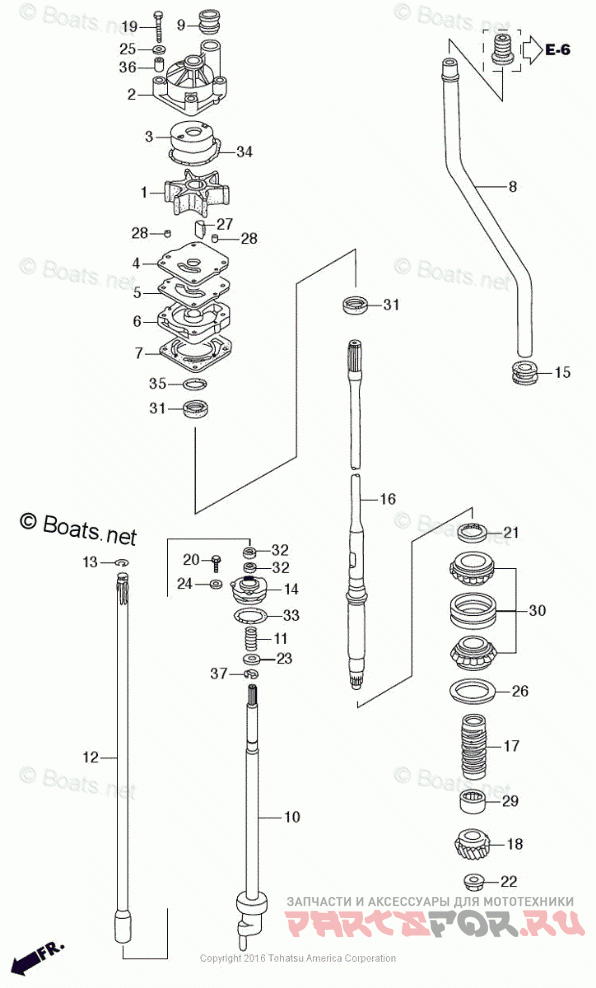

Water Pump + Vertical Shaft

Tohatsu BFT75A

Tohatsu
#oem кодцена
F-4-23
H72390472000
Деталь WASHER, PLAIN 12MM
F-4-36
HZY691552000
Деталь COLLAR, DISTANCE
F-4-27
HZW190752B02
Деталь KEY, WOODRUFF
F-4-29
HZW191052B02
Деталь BEARING, NEEDLE 1-1/8X1-1/2X1-14
F-4-30
HZW191054B31
Деталь BEARING, TAPER ROLLER 30X62X40
F-4-34
HZW191356B00
Деталь O-RING, WATER PUMP
F-4-20
HZW990102000
Деталь BOLT, FLANGE, 6X12
F-4-11
HZY324318000
Деталь SPRING, SHIFT ROD
F-4-32
HZY391254003
Деталь SEAL, WATER 12X21X6
F-4-1
HZY919210H01
Деталь IMPELLER, WATER PUMP (BFT75A/90A)
F-4-26
HZW190520B00
Деталь SHIM C, GEAR (0.30)
F-4-2
HZY919221H00
Деталь HOUSING, IMPELLER
F-4-3
HZY919223H00
Деталь LINER, PUMP
F-4-4
HZY919231H00
Деталь COVER, IMPELLER
F-4-8
HZY919251000
Деталь TUBE, WATER (L)
F-4-14
HZY924343H00
Деталь HOLDER, SHIFT ROD
F-4-6
HZZ019241000
Деталь HOUSING, WATER PUMP
F-4-10
HZZ024310000
Деталь ROD, SHIFT (L)
F-4-26
HZW190521B00
Деталь SHIM D, GEAR (0.50)
F-4-26
HZW190519B00
Деталь SHIM B, GEAR (0.15)
F-4-25
H92190514000
Деталь WASHER, 8MM
F-4-7
HZW119242B00
Деталь GASKET, WATER PUMP
F-4-37
HCO9454010019
Деталь E RING 10
F-4-35
HMB091359000
Деталь O-RING 58.5X3.5
F-4-33
HMJ091308003
Деталь O-RING
F-4-24
HZV490511000
Деталь WASHER, PLAIN, 6MM
F-4-19
HZV590010000
Деталь BOLT, HEX., 8X55
F-4-28
HZV590756000
Деталь DOWEL PIN, 6X10
F-4-5
HZW119234B00
Деталь GASKET B, IMPELLER
F-4-9
HZW119253B01
Деталь RING, WATER TUBE SEAL
F-4-26
HZW190518B00
Деталь SHIM A, GEAR (0.10)
F-4-12
HZW124320B00
Деталь ROD, SHIFT (L)
F-4-13
HZW124327000
Деталь RING, STOPPER
F-4-15
HZW140204000
Деталь GROMMET, EXTENSION CASE
F-4-16
HZW141112B03
Деталь DRIVE SHAFT (L)
F-4-17
HZW141116B00
Деталь SLINGER, OIL
F-4-18
HZW141131B01
Деталь GEAR, PINION (12T)
F-4-21
HZW190242000
Деталь NUT, LOCK (64MM)
F-4-22
HZW190303B03
Деталь NUT, HEX (16MM)
F-4-31
HZZ391253003
Деталь SEAL, WATER 23X36X6
