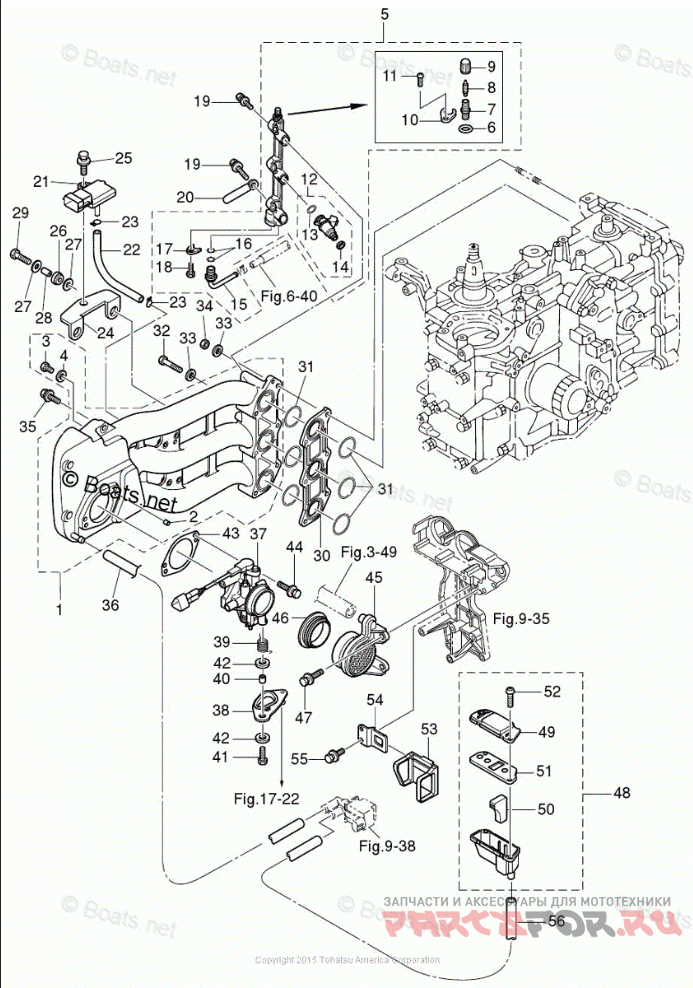

INTAKE MANIFOLD

Tohatsu MFS30C

Tohatsu
#oem кодцена
5-20
309069720
CLAMP
5-29
9101030620
BOLT (10 MULTIPLE)
5-54
3AC637370
STAY
5-38
3AC637490
THROTTLE CAM, F30B
5-7
3AC773670
JOINT
5-56
3AD022030
FUEL HOSE
5-45
3AD024090
INTAKE SILENCER ASSY, THROTTLE BODY
5-27
3C8663080
WASHER
5-28
3H6760791
COLLAR, 6.2-9-7.4
5-3
3R0020950
BOLT
5-4
3R0021120
WASHER
5-16
3T5101620
O-RING 9.8-1.9
5-17
3T5101690
PLATE, NIPPLE
5-41
9101030625
BOLT (10 MULTIPLE)
5-53
3AC636240
GROMMET
5-55
9101E35612
BOLT WASHER (10 MULTIPLE)
5-25
9101E35616
BOLT WASHER (10 MULTIPLE)
5-18
9101E35616
BOLT WASHER (10 MULTIPLE)
5-47
9101E35620
BOLT WASHER (10 MULTIPLE)
5-44
9101E35625
BOLT WASHER (10 MULTIPLE)
5-19
9101E35625
BOLT WASHER (10 MULTIPLE)
5-35
9101E35625
BOLT WASHER (10 MULTIPLE)
5-32
9161140653
BOLT (10 MULTIPLE)
5-11
9215030410
SCREW (10 MULTIPLE)
5-34
9301030600
NUT (10 MULTIPLE)
5-33
9401030600
WASHER (10 MULTIPLE)
5-39
3AC637270
SPRING
5-13
3AC103041
O-RING
5-23
338011330
LOCK RING
5-52
3AC059130
TAPPING SCREW
5-2
345011110
DOWEL PIN 6-12
5-42
346671150
WASHER
5-40
353760790
COLLAR
5-1
3AC020100
INTAKE MANIFOLD
5-31
3AC020120
O-RING
5-36
3AC022030
FUEL HOSE
5-48
3AC024090
INTAKE SILENCER ASSY, ISC
5-51
3AC024140
INTAKE SILENCER GASKET
5-49
3AC024160
INTAKE SILENCER COVER
5-46
3AC024180
GASKET
5-30
3AC039520
INSULATOR
5-26
3AC069200
RUBBER MOUNT
5-14
3AC103031
O-RING
5-24
3AC072330
PLATE, MAP SENSOR
5-8
3AC100980
VALVE ASSY
5-9
3AC100990
CAP
5-37
3AC101001
THROTTLE BODY ASSY, F30B
5-43
3AC101040
GASKET, THROTTLE BODY
5-50
3AC101300
AIR FILTER
5-15
3AC101610
NIPPLE
5-6
3AC101620
O-RING
5-10
3AC101690
PLATE
5-5
3AC102000
FUEL RAIL ASSY
5-21
3AC102140
MAP SENSOR
5-12
3AC103001
FUEL INJECTOR
5-22
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
