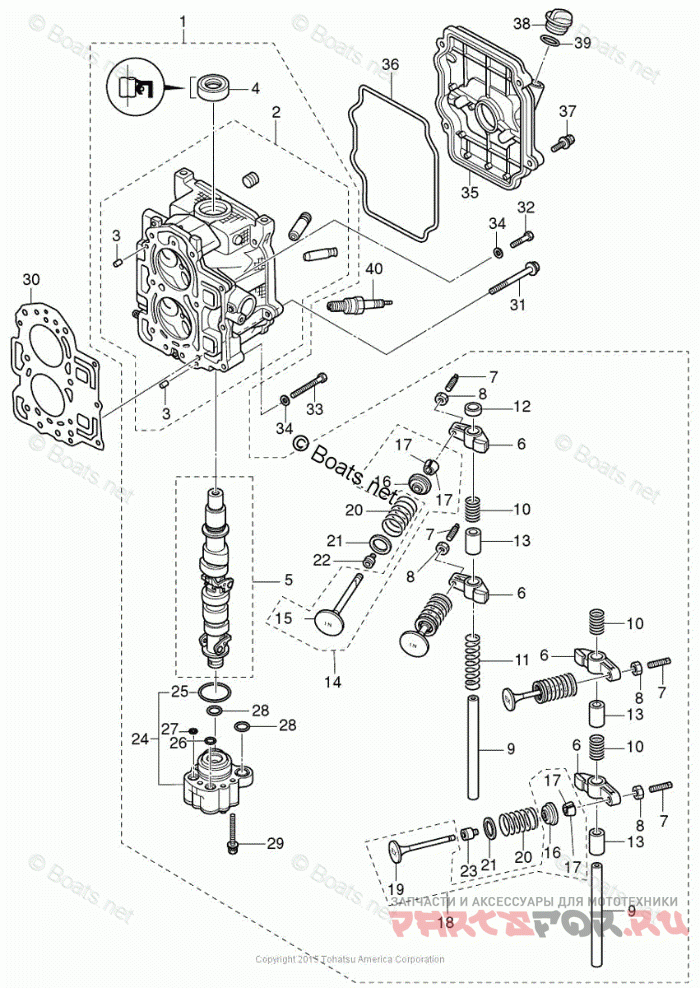

CYLINDER HEAD & OIL PUMP

Tohatsu MFS15D

CYLINDER HEAD & OIL PUMP

#

oem код

название

цена

3-3

DOWEL PIN 6-12

DOWEL PIN 6-12

3-22

SEAL, INT VALVE STEM

SEAL, INT VALVE STEM

3-27

O-RING

O-RING

3-26

O-RING

O-RING

3-28

O-RING

O-RING

3-25

O-RING

O-RING

3-7

SCREW

SCREW

3-39

O-RING

O-RING

3-38

FILLER CAP, ENGINE OIL

FILLER CAP, ENGINE OIL

3-23

SEAL, EXH VALVE STEM

SEAL, EXH VALVE STEM

3-13

COLLAR, 13.1-15.9-22.5

COLLAR, 13.1-15.9-22.5

3-12

WASHER

WASHER

3-9

SHAFT, ROCKER ARM

SHAFT, ROCKER ARM

3-33

BOLT

BOLT

3-37

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

3-29

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

3-32

BOLT

BOLT

3-34

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

3-24

OIL PUMP

OIL PUMP

3-8

NUT

NUT

3-20

VALVE SPRING

VALVE SPRING

3-30

GASKET, CYLINDER HEAD F15C/F20C

GASKET, CYLINDER HEAD F15C/F20C

3-6

ROCKER ARM

ROCKER ARM

3-14

INTAKE VALVE

INTAKE VALVE

3-18

EXHAUST VALVE

EXHAUST VALVE

3-15

INTAKE VALVE

INTAKE VALVE

3-19

EXHAUST VALVE

EXHAUST VALVE

3-16

RETAINER

RETAINER

3-17

COTTER

COTTER

3-36

CYLINDER HEAD COVER GASKET

CYLINDER HEAD COVER GASKET

3-11

SPRING

SPRING

3-5

CAMSHAFT ASSY

CAMSHAFT ASSY

3-1

CYLINDER HEAD ASSY, MFS9.9/15/20C

CYLINDER HEAD ASSY, MFS9.9/15/20C

3-2

CYLINDER HEAD, F15C/F20C

CYLINDER HEAD, F15C/F20C

3-35

CYLINDER HEAD COVER F15C/F20C

CYLINDER HEAD COVER F15C/F20C

3-21

SEAT, VALVE SPRING

SEAT, VALVE SPRING

3-31

BOLT, CYLINDER HEAD

BOLT, CYLINDER HEAD

3-4

OIL SEAL

OIL SEAL

3-10

SPRING

SPRING

3-40

SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)

SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
