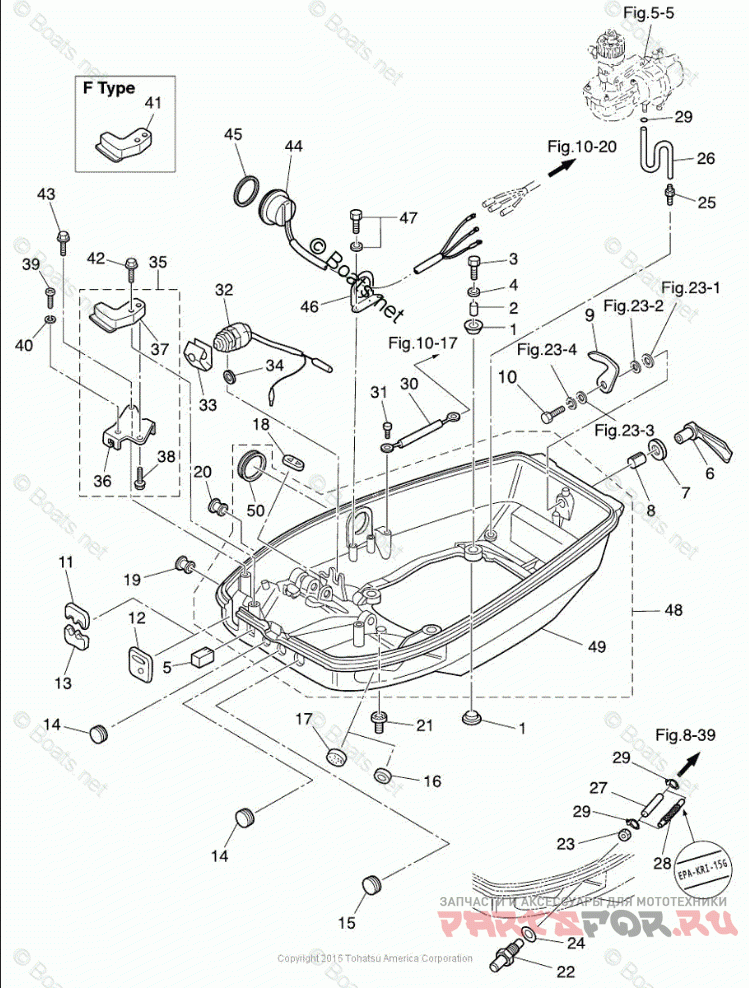

BOTTOM COWL

Tohatsu MD40B2

Tohatsu
#oem кодцена
22-23
332702610
NUT
22-5
3T5671500
PLUG
22-37
3C8Q761180
CLAMP
22-41
3C8Q761180
CLAMP
22-35
3C8Q837370
CABLE CLIP BRACKET ASSY
22-45
3F3726161
GASKET, PTT SWITCH NS70B, D40/50B2
22-50
3F3726180
GROMMET, POWER TRIM TILT SWITCH
22-28
3GF021650
FUEL HOSE W/PROTECTOR
22-44
3GF726150
SWITCH B ASSY, PTT, M40/50B2
22-46
3GF726170
BRACKET, PTT SWITCH, D40/50B2
22-30
3N4761420
GROUNDING WIRE
22-25
3T1011380
WATER NIPPLE
22-12
3T5671620
GROMMET, BATTERY CORD
22-48
3C8Q671100
LOWER MOTOR COVER W/GROMMET
22-36
3Z5837380
BRACKET, CLUTCH CABLE CLIP
22-10
9101030612
BOLT (10 MULTIPLE)
22-31
9101036612
BOLT (10 MULTIPLE)
22-47
9101036614
BOLT (10 MULTIPLE)
22-3
9101E30630
BOLT (10 MULTIPLE)
22-38
9101E35612
BOLT WASHER (10 MULTIPLE)
22-43
9101E35616
BOLT WASHER (10 MULTIPLE)
22-42
9101E35625
BOLT WASHER (10 MULTIPLE)
22-40
9413030400
SPRING WASHER (10 MULTIPLE)
22-26
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
22-6
3C8Q671410
HOOK LEVER (AMB)
22-49
3C8Q671002
LOWER MOTOR COVER-DISCONTINUED
22-24
336701120
GASKET
22-8
369671050
BUSHING
22-29
338022150
CLIP, FUEL PIPE
22-7
338671470
SEAL RING
22-16
338671630
SUPPORTING RUBBER, FUEL PIPE
22-21
345662260
GROMMET, SHIFT ROD
22-14
345671170
GROMMET
22-17
345671170
GROMMET
22-15
345760920
GROMMET
22-1
346671130
MOUNT RUBBER
22-2
346671141
SPACER
22-4
346671150
WASHER
22-32
398760801
NEUTRAL SWITCH ASSY
22-39
3C8838210
SCREW
22-33
398760830
ACTUATOR, NEUTRAL SWITCH
22-19
3B2671870
GROMMET, THROTTLE SHAFT
22-22
3B2702601
FUEL CONNECTOR, ENGINE SIDE MALE
22-20
3B7010460
HOLE PLUG
22-34
3B7637310
WASHER 12.5-24-1
22-18
3C8636210
GROMMET
22-18
3C8636240
GROMMET
22-9
3C8671421
COVER HOOK
22-13
3C8761161
GROMMET
22-11
3C8837320
GROMMET
22-27
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
