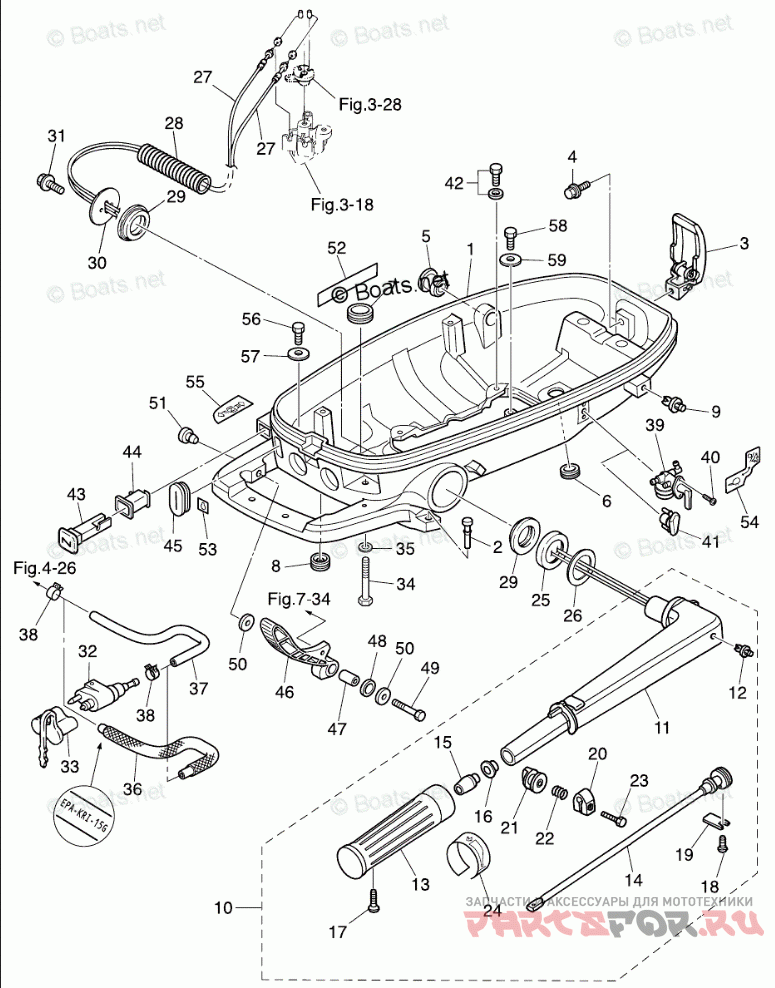

BOTTOM COWL & TILLER HANDLE

Tohatsu MFS4C

Tohatsu
#oem кодцена
1
3GRQ671000
BOTTOM COWL
2
3GR671610
GROMMET 22-3
3
3AA671201
COWL LATCH ASSY
4
9101035616
BOLT
5
3GR671870
GROMMET 15.5-27
6
338671630
GROMMET 18-2.5
7
3B7760930
GROMMET 25-5
8
345671170
GROMMET 17-2.7
9
350671540
PLASTIC RIVET 6.5
10
3V1Q630034
TILLER HANDLE ASSY
11
3V1Q630113
TILLER HANDLE
12
350671540
PLASTIC RIVET 6.5
13
3R3630120
GRIP
14
3V1630410
THROTTLE SHAFT
15
3H6630480
THROTTLE SHAFT DAMPER
16
3H6635100
BUSHING 14-15.8-7
17
9208030518
SCREW
18
9215E30612
SCREW
19
3B2630630
THROTTLE SHAFT SUPPORT
20
3V1630351
FRICTION PIECE
21
3V1630770
ADJUSTING NUT
22
3V1630360
SPRING
23
9101E30625
BOLT (OR 910113-0625)
24
3V9720190
THROTTLE DECAL
25
3H6630260
TILLER HANDLE SPACER
26
3B2631080
WASHER 30-45-1
27
3GR636000
THROTTLE WIRE
28
3H6061330
PROTECTOR
29
3H6631020
TILLER HANDLE BUSHING
30
3GR631070
COVER
31
9101E35616
BOLT (OR 910113-5616)
32
394702600
FUEL CONNECTOR ( ENGINE MALE)
33
3H6702620
FUEL CONNECTOR PROTECTOR
34
9101030625
BOLT
35
9402030600
WASHER
36
3JF021600
FUEL HOSE W/PROTECTOR 353-40-30
37
3JG022030
FUEL HOSE 353-40-30
38
3AB351430
CLIP 9.5
39
3H9703110
FUEL COCK
40
3GR838210
SCREW
41
3GR671290
GROMMET
42
9101E35616
BOLT (OR 910113-5616)
43
3H6671510
CHOKE ROD
44
3GR671040
CHOKE ROD BUSHING
45
3GR662600
GROMMET
46
3GR661100
SHIFT LEVER
47
3GR630660
COLLAR 15.9-17-9
48
3GR631080
WASHER 30-45-1
49
3H6624450
BOLT
50
345051221
WASHER 6.5-23-1.5
51
3A3760370
CABLE TERMINAL PLUG
52
3H6675720
STORAGE DECAL
53
3BA761990
OIL PRESSURE DECAL
54
3JJ720240
FUEL LEVER DECAL
55
3JJ675780
SHIFT DECAL
56
9101030612
BOLT
57
345051221
WASHER 6.5-23-1.5
58
9101030612
BOLT
59
345051221
WASHER 6.5-23-1.5
