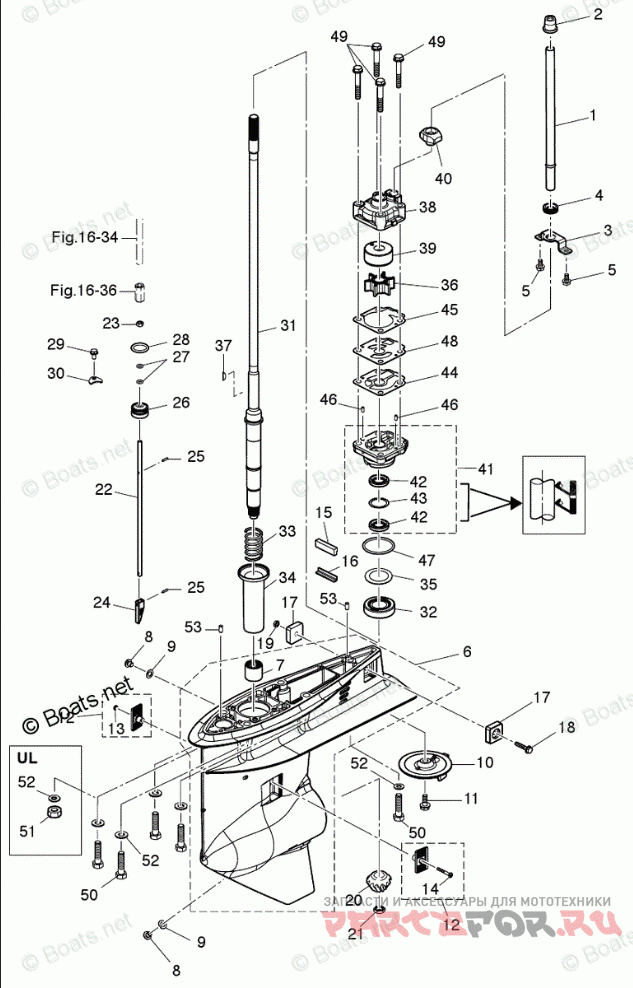

GEAR CASE, DRIVE SHAFT

Tohatsu MFS40A

Tohatsu
#oem кодцена
1
3KY651100
WATER PIPE (L)
2
3KY652060
WATER PIPE SEAL (UPPER)
3
3KY652030
LOCK PLATE
4
3KY652040
WATER PIPE AUXILIARY MOUNT
5
9101E35612
BOLT
6
3KYQ600000
GEAR CASE ASSY
7
3KY602110
ROLLER BEARING
8
332600052
WATER PLUG
9
332600060
GASKET 8.1-15-1
10
3KYQ602170
TRIM TAB
11
9101035820
BOLT
12
3KY602050
WATER STRAINER SET
13
9304030400
NYLON NUT 4P-0.7
14
9215E30430
SCREW
15
3KY600410
WATER SEAL RUBBER
16
3KY600420
WATER SEAL PLATE
17
3KY602180
ANODE
18
9101035625
BOLT
19
9304030600
NYLON NUT 6-P 1.0
20
3KY640200
BEVEL GEAR B
21
3C8640270
BEVEL GEAR B NUT
22
3KY660140
CAM ROD (UL)
23
9301030600
NUT
24
3AC660111
CLUTCH CAM
25
9514070312
SPRING PN 3-12
26
3R0660310
BUSHING CAM ROD
27
332660210
O-RING 2.4 - 5.8
28
3C8660320
O-RING 3.5 - 21.7
29
9101E35612
BOLT
30
353660240
STOPPER
31
3KY643010
DRIVE SHAFT (S)
32
3KY602150
TAPERED ROLLER BEARING
33
3KY643270
DRIVE SHAFT SPRING
34
3KY643280
DRIVE SHAFT SPRING GUIDE
35
345640810
SHIM 41-51.5-0.1
36
3C8650212
WATER PUMP IMPELLER
37
332650220
KEY PUMP IMPELLER
38
3T5650160
PUMP CASE (UPPER)
39
3T5650110
PUMP CASE LINER
40
3C8650140
WATER PIPE SEAL (LOWER)
41
3KY650020
PUMP CASE ASSY (LOWER)
42
3C8602230
OIL SEAL 17-33-6
43
3C8640840
SHIM 32.9-26-0.5
44
3C8650292
GUIDE PLATE GASKET
45
3T5650182
PUMP CASE GASKET
46
334650120
KNOCK 4 -10
47
345650150
O-RING 3.2-47
48
3C8650250
WATER PUMP GUIDE PLATE
49
9101E35855
BOLT
50
3KY600010
BOLT
51
3B7611140
NUT 10-P1.25
52
9402E31000
WASHER
53
3AB011110
DOWEL PIN 6-12
