BRACKET (PTT & GAS ASSIST) для лодочных моторов Tohatsu MFS25B (2014)

Москва и регионы России

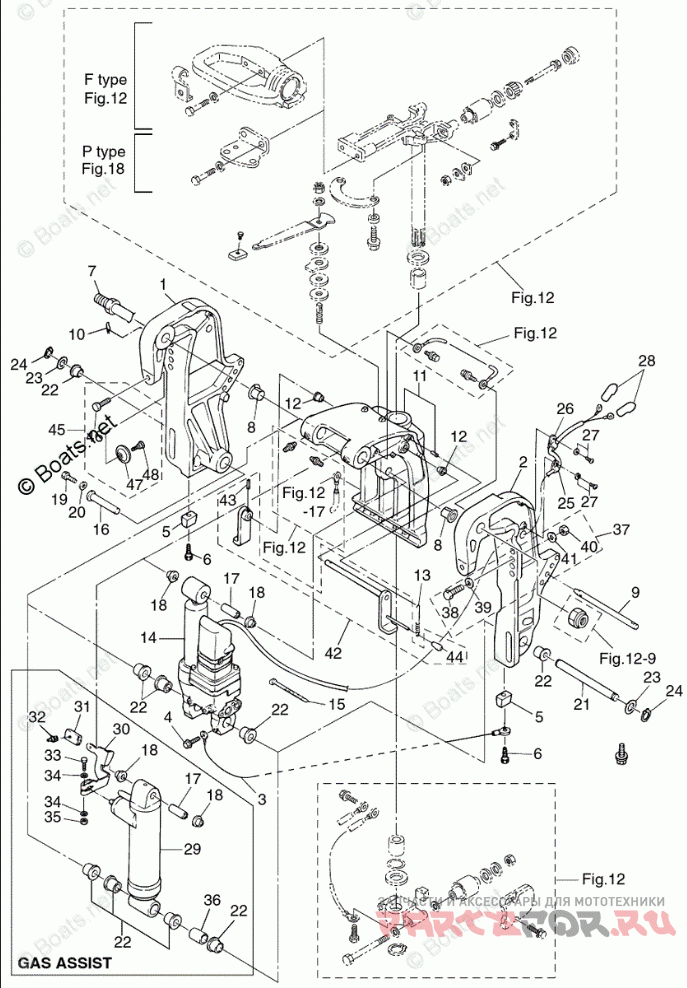

BRACKET (PTT & GAS ASSIST)

Tohatsu MFS25B

BRACKET (PTT & GAS ASSIST)

#

oem код

название

цена

1

CLAMP BRACKET (PTT-R)

CLAMP BRACKET (PTT-R)

2

CLAMP BRACKET (PTT-L)

CLAMP BRACKET (PTT-L)

3

GROUND CABLE

GROUND CABLE

4

BOLT

BOLT

5

ANODE

ANODE

6

BOLT

BOLT

7

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

8

BUSHING BRACKET BOLT

BUSHING BRACKET BOLT

9

THRUST ROD

THRUST ROD

10

SNAP PIN D=10

SNAP PIN D=10

11

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

12

COLLAR 10.2 -12 -12

COLLAR 10.2 -12 -12

13

SPRING TILT STOPPER

SPRING TILT STOPPER

14

PT ASSY

PT ASSY

15

BAND LEAD WIRE 300

BAND LEAD WIRE 300

16

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

17

BUSHING 13 -16 - 40

BUSHING 13 -16 - 40

18

BUSHING 13 -17 -19.5

BUSHING 13 -17 -19.5

19

BOLT

BOLT

20

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

21

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

22

BUSHING 18 - 24 - 22

BUSHING 18 - 24 - 22

23

WASHER 18.2 - 34 -1

WASHER 18.2 - 34 -1

24

C-RING D=18

C-RING D=18

25

CLAMP 6 - 9.5L

CLAMP 6 - 9.5L

26

CLAMP 6.5-14L

CLAMP 6.5-14L

27

SCREW

SCREW

28

TERMINAL CAP

TERMINAL CAP

29

GAS SHOCK ABSORBER

GAS SHOCK ABSORBER

30

LOCK LEVER

LOCK LEVER

31

REVERSE LOCK LEVER GRIP

REVERSE LOCK LEVER GRIP

32

STOPPER LEVER GRIP

STOPPER LEVER GRIP

33

BOLT 6-35

BOLT 6-35

34

WASHER

WASHER

35

NUT

NUT

36

COLLAR 18.2 - 21.7 - 30

COLLAR 18.2 - 21.7 - 30

37

RIGGING BOLT SET

RIGGING BOLT SET

38

BOLT 12P 1.25 - L105

BOLT 12P 1.25 - L105

39

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

40

NUT P1.25

NUT P1.25

41

WASHER

WASHER

42

TILT STOPPER KIT

TILT STOPPER KIT

43

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

44

TILT STOPPER GRIP

TILT STOPPER GRIP

45

CLAMP SCREW KIT

CLAMP SCREW KIT

46

CLAMP SCREW (PTT)

CLAMP SCREW (PTT)

47

CLAMP SCREW PAD

CLAMP SCREW PAD

48

SHOULDER BOLT

SHOULDER BOLT
