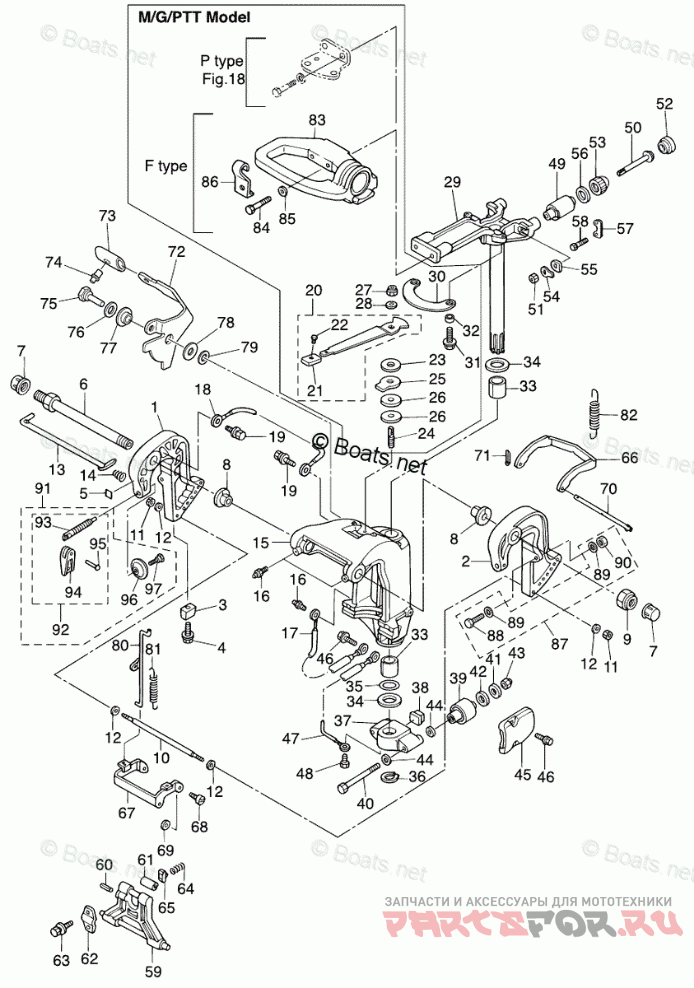

BRACKET (MANUAL TILT)

Tohatsu MFS25B

Tohatsu
#oem кодцена
1
3AEQ621122
CLAMP BRACKET (R)
2
3AEQ621132
CLAMP BRACKET (L)
3
3B7602181
ANODE
4
9101035630
BOLT
5
3H8720490
LABEL CO-PILOT
6
3AC621910
SWIVEL BRACKET SHAFT
7
346621270
CAP BRACKET BOLT
8
349621260
BUSHING BRACKET BOLT
9
346621241
NYLON NUT 7/8
10
346621171
DISTANCE PIECE
11
9301E30600
NUT
12
9401E30600
WASHER
13
345621211
THRUST ROD
14
345621222
SPRING THRUST ROD
15
3AEQ623102
SWIVEL BRACKET
16
344671771
GREASE FITTING
17
3C8623961
GROUND CABLE
18
398623961
GROUND CABLE
19
9101035612
BOLT
20
3AC624500
FRICTION LEVER ASSY
21
3AC630120
GRIP
22
346663340
STOPPER LEVER GRIP
23
3R3624430
WASHER 8.1-20-0.8
24
3R3624450
CO-PILOT BOLT
25
3R3624481
WASHER CO-PILOT
26
3R3624490
CO-PILOT DISC
27
9304030800
NYLON NUT 8P-1.25
28
9401E30800
WASHER
29
3AHQ620100
STEERING SHAFT ASSY
30
3AC624470
PLATE
31
9101E35616
BOLT (OR 910113-5616)
32
3AC636190
COLLAR 6.5-10.7-6.5
33
353624170
BUSHING 30 - 36 - 41
34
353624231
THRUST PLATE
35
353624150
O-RING 3.5 - 29.7
36
9451032800
C-RING D=28
37
3AEQ614111
MOUNT BRACKET
38
3C8613360
DAMPER RUBBER
39
3C8613021
RUBBER MOUNT (LOWER)
40
3R0613210
BOLT LOWER MOUNT RUBBER
41
353613340
WASHER 13 - 34 - 3
42
3C7613380
DAMPER RUBBER 21- 36 - 5
43
3R0613240
NYLON NUT 12 P1.25
44
9402E31200
WASHER
45
3R0Q613420
MOUNT HOLDING PLATE (LOWER)
46
9101E35620
BOLT
47
3A3623961
GROUNG CABLE
48
9101035612
BOLT
49
3R0613011
RUBBER MOUNT (UPPER)
50
3R0613070
BOLT MOUNT RUBBER
51
9301031000
NUT
52
3R0613330
UPPER DAMPER RUBBER A
53
3R0613371
UPPER DAMPER RUBBER B
54
3R0613230
LOCK PLATE MOUNT RUBBER
55
345613222
WASHER
56
3R0613350
UPPER LOCK PLATE
57
3R0613121
RETAINER MOUNT RUBBER
58
9101E30620
BOLT
59
349Q629932
TILT STOPPER
60
9514030640
SPRING PIN 6 - 40
61
346624370
BUSHING 10.2 -12 - 29.5
62
3AC624390
SETTING PLATE
63
3AC632010
BOLT
64
3C8624211
SPRING FRICTION TILT STOPPER
65
346624380
SET PIECE TILT STOPPER
66
346663220
REVERSE LOCK
67
349663130
ARM REVERSE LOCK
68
336663191
SHAFT REVERSE LOCK ARM
69
3R0663080
WASHER 6-16-1.5
70
346663210
ROD REVERSE LOCK
71
9515030212
SPLIT PIN 2-12
72
3P0663110
REVERSE LOCK LEVER
73
3AL663330
REVERSE LOCK LEVER GRIP
74
346663340
STOPPER LEVER GRIP
75
3AL052540
SHOULDER BOLT 6-8
76
9401030800
WASHER
77
3AL052120
BUSHING 8.1-20
78
3AA837190
WASHER 8.5-18-1.6
79
3R0663080
WASHER 6-16-1.5
80
349663120
LINK REVERSE LOCK
81
346663231
SPRING REVERSE LOCK LEVER
82
3R0663320
SPRINGL REVERSE LOCK
83
3R3Q620010
STEERING BRACKET
84
3R3620942
BOLT 10-80
85
9401E31000
WASHER
86
3R0636280
CLAMP THROTTLE CABLE
87
3AC721200
RIGGING BOLT SET
88
9161E30885
BOLT
89
9401E30800
WASHER
90
9301E30800
NUT
91
3AAQ621050
CLAMP SCREW KIT
92
3AAQ621080
CLAMP SCREW ASSY
93
3AA621060
CLAMP SCREW
94
332Q621021
CLAMP SCREW HANDLE
95
3C8621042
RIVET 3-22
96
332621011
CLAMP SCREW PAD
97
3C8621070
SHOULDER BOLT
