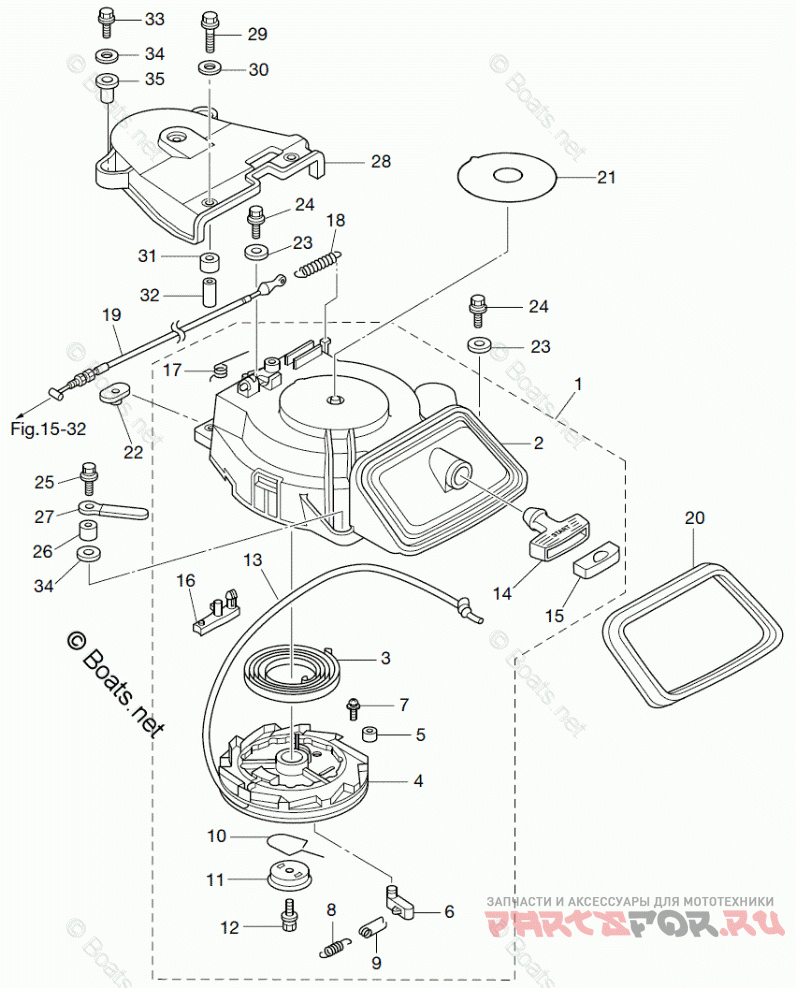

RECOIL STARTER

Tohatsu MFS20C

Tohatsu
#oem кодцена
1
3BJ050900
RECOIL STARTER
2
3BJ051050
STARTER CASE
3
3H8050040
STARTER SPRING
4
3BJ051040
REEL
5
3BJ051350
BUSHING
6
3BJ050030
RATCHET
7
3BJ059130
TAPPING SCREW
8
3R3050120
RETURN SPRING
9
3H8051231
RATCHET GUIDE
10
3R3050070
FRICTION SPRING
11
3R3050060
FRICTION PLATE
12
3R3051380
BOLT STARTER SHAFT
13
3R3050130
STARTER ROPE
14
3BJ050190
STARTER HANDLE
15
3AB051310
ROPE ANCHOR
16
3R3052520
STARTER LOCK
17
3R3052160
SPRING
18
3AC052580
STARTER LOCK CAM SPRING
19
3BJ052070
STARTER LOCK CABLE
20
3BJ675031
STARTER SEAL
21
3R0721810
CAUTION DECAL B
22
3F3760422
NUT
23
3R0663080
WASHER 6-16-1.5
24
3AL601080
PRE-COATED BOLT 6-20
25
3AC068640
PRE-COATED BOLT 6-30
26
3H6636191
COLLAR 6.5-10.5-10
27
309069720
CLAMP 6.5-47.5P
28
3R3063080
BELT COVER
29
9101E30630
BOLT
30
3R0663080
WASHER 6-16-1.5
31
3R3063020
RUBBER MOUNT 9-16-9
32
3R3063031
COLLAR 6.2-9-21
33
9101E30620
BOLT
34
3R0663080
WASHER 6-16-1.5
35
3BJ062830
COLLAR 6.1-14-8.9
