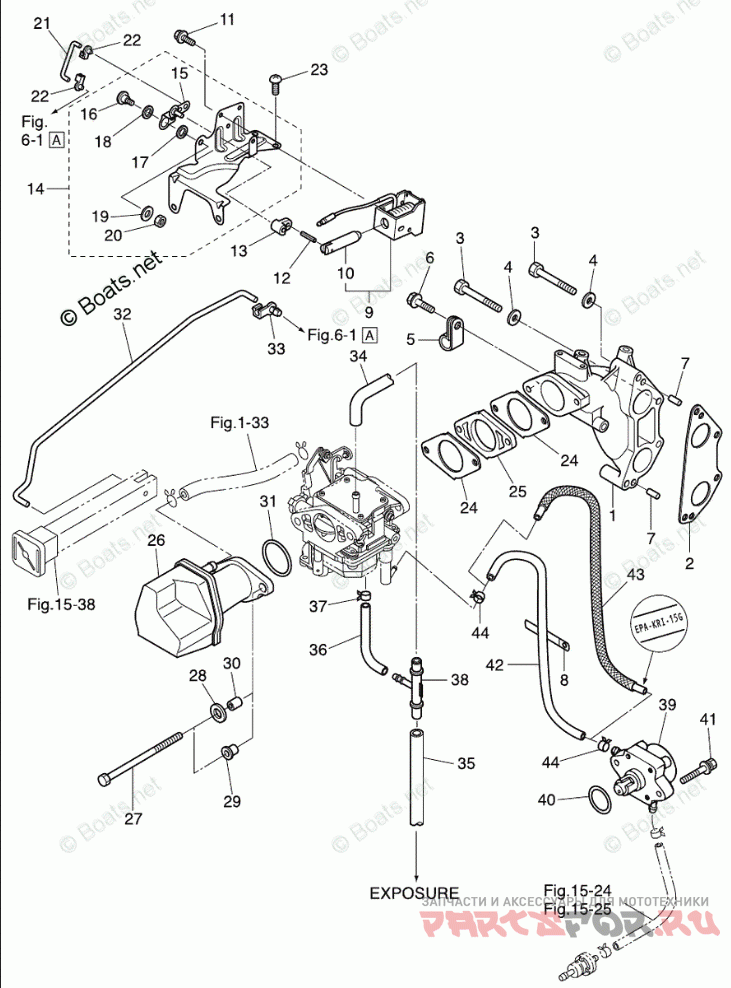

INTAKE MANIFOLD & FUEL PUMP

Tohatsu MFS20C

Tohatsu
#oem кодцена
1
3BJ020910
INTAKE MANIFOLD
2
3BJ021040
INTAKE MANIFOLD GASKET
3
9161F40645
BOLT
4
9401E30600
WASHER
5
345069150
CLAMP 6.5-14L
6
9101035612
BOLT
7
345011110
DOWEL PIN 6-12
8
309069720
CLAMP 6.5-47.5P
9
3BJ760500
CHOKE SOLENOID
10
361760730
PLUNGER
11
9215036406
SCREW
12
9514030312
SPRING PIN 3-12
13
3BJ760570
CHOKE SOLENOID HOOK
14
3BJ760780
CHOKE SOLENOID BRACKET ASSY
15
3BJ671520
CHOKE LEVER
16
3BJ838210
SCREW
17
3BJ637210
BUSHING 8.1-15-2.9
18
3BJ052450
WASHER 8.1-15-1.3
19
9401030400
WASHER
20
9301030400
NUT
21
3BJ760760
LINK ROD
22
3V1671960
ROD SNAP
23
9215E30510
SCREW
24
3BJ020110
CARBURETOR GASKET
25
3BJ039520
INSULATOR
26
3BJ024090
INTAKE SILENCER
27
3R0032150
BOLT 6 -100
28
9401E30600
WASHER
29
3BJ062830
COLLAR 6.1-14-8.9
30
3A0760790
COLLAR 6.2-9-7.4
31
3BJ024190
SEAL RING 2.4-35
32
3BH671920
CHOKE LINK ROD
33
3BJ671960
ROD SNAP 3.2-2
34
3BJ077351
BREATHER HOSE
35
3BA077350
BREATHER HOSE
36
98AL30200
RUBBER HOSE
37
369700982
CLIP 7
38
3BJ011761
NIPPLE
39
3H8040001
FUEL PUMP
40
3H8624150
O-RING 3.5-25.7
41
9101E35625
BOLT
42
98AB50260
RUBBER HOSE
43
3BJ021600
FUEL HOSE W/PROTECTOR L=260
44
3AB351430
CLIP 9.5
