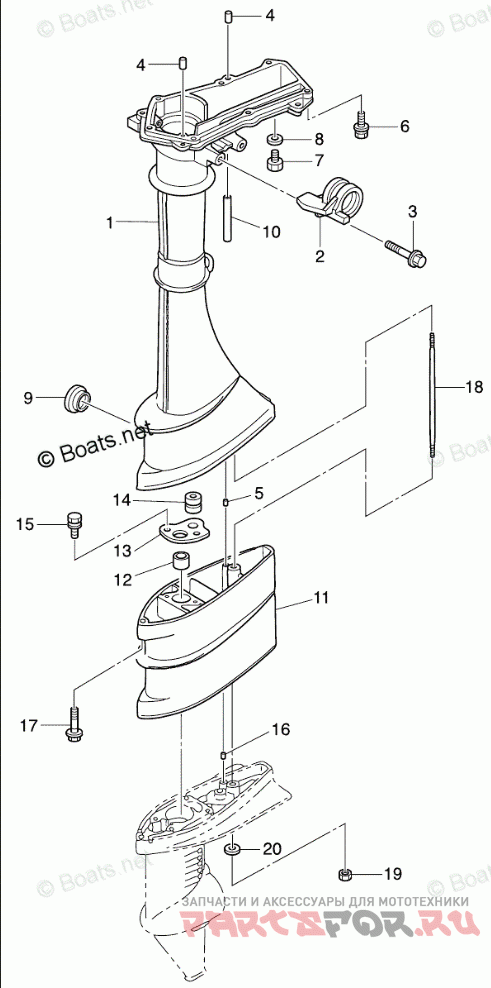

DRIVE SHAFT HOUSING

Tohatsu MFS2.5B

Tohatsu
#oem кодцена
1
3ABQ610202
DRIVE SHAFT HOUSING ASSY (S)
2
3ABQ620011
STEERING BRACKET
3
9101E35835
BOLT
4
345011110
DOWEL PIN 6-12
5
3AB011110
DOWEL PIN 6-12
6
9101E35630
BOLT
7
9106E30808
BOLT
8
332600060
GASKET 8.1-15-1
9
369610160
GROMMET 29-3
10
98AB30050
RUBBER HOSE
11
3ABQ611000
EXTENSION HOUSING L
12
3AB600030
DRIVE SHAFT BUSHING
13
3AB643320
DRIVE SHAFT BUSHING STOPPER
14
172360080
GROMMET 13.2
15
9101E35612
BOLT
16
3AB011110
DOWEL PIN 6-12
17
3AB600011
BOLT
18
3F0611011
STUD BOLT 6-171
19
9301E30600
NUT
20
9401E30600
WASHER
