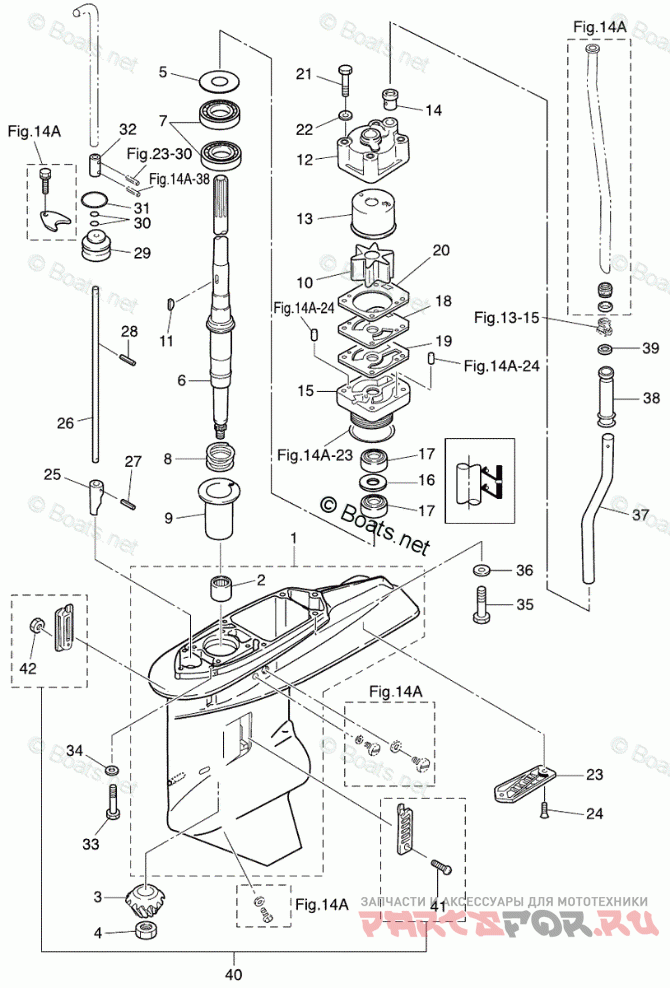

GEAR CASE (DRIVE SHAFT) MWD50B2

Tohatsu MD50B2

Tohatsu
#oem кодцена
1
3S7Q600901
GEAR CASE ASSY
2
353602110
ROLLER BEARING 25-33-30
3
3F3640200
BEVEL GEAR B
4
353640270
NUT
5
353640810
SHIM 44-50.5-0.1
6
3S7643020
DRIVE SHAFT (L)
7
3S7602130
BALL BEARING 6205R
8
353643270
SPRING DRIVE SHAFT
9
3A3643280
DRIVE SHAFT SPRING GUIDE
10
3B7650212
IMPELLER WATER PUMP
11
3B7650221
KEY
12
3B7650160
UPPER PUMP CASE ASSY
13
3B7652380
LINER CHROME PLATED PUMP CASE
14
3B7650140
SEAL RUBBER LOWER WATER PIPE
15
3F3650171
PUMP CASE (LOWER)
16
3F3640840
SHIM 36.9-30-0.5
17
3F3602230
OIL SEAL 22-37-8
18
3F3652392
WATER PUMP GUIDE PLATE
19
3B7650290
GASKET GUIDE PLATE
20
3B7650180
GASKET PUMP CASE
21
9161E30880
BOLT
22
9401030800
WASHER
23
3F3602040
SUB-WATER INLET STRAINER
24
9215030608
SCREW
25
3S7660110
CLUTCH CAM
26
3S7660130
CAM ROD (L)
27
9514033514
SPRING PIN 3.5-14
28
9514033510
SPRING PIN 3.5-10
29
3B7660311
CAM ROD BUSHING
30
345660210
O-RING 1.9-6.8
31
3B7660230
O-RING 3.5-27.7
32
3S7662410
SHIFT ROD JOINT
33
3T1600011
BOLT 8-35
34
9402E30800
WASHER
35
3B7600015
BOLT 10-40
36
9402E31000
WASHER
37
3S7602520
EXTENSION PIPE
38
3S7602510
JOINT HOSE
39
345652050
COLLAR 18-20-4.5
40
3B7602050
WATER STRAINER SET
41
9215030438
SCREW
42
9304030400
NYLON NUT 4P-0.7
