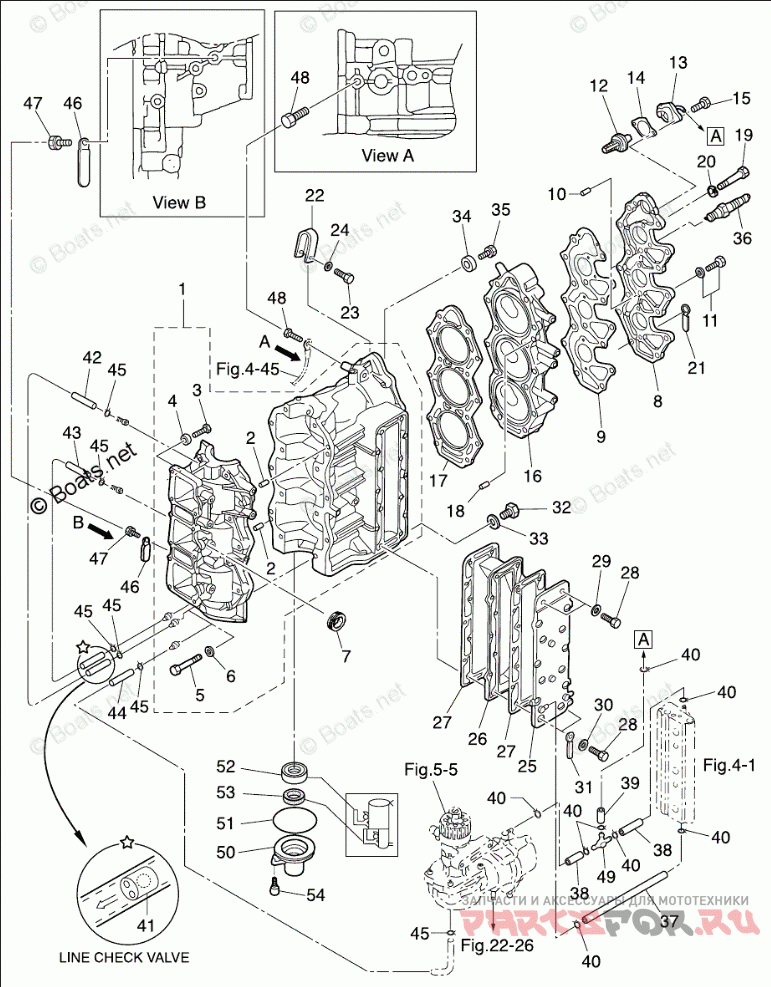

CYLINDER & CRANK CASE

Tohatsu MD40B2

Tohatsu
#oem кодцена
1
3T5B011000
CYLINDER-CRANK CASE
2
345011110
DOWEL PIN 6-12
3
9101030618
BOLT
4
353760790
COLLAR 6.2 - 9 - 9.3
5
9161240845
BOLT
6
9401210800
WASHER
7
3B7760930
GROMMET 25-5
8
3T5B010210
CYLINDER HEAD COVER
9
3T5010240
CYLINDER HEAD COVER GASKET
10
334650120
KNOCK 4 -10
11
9101215620
BOLT
12
345010300
THERMOSTAT
13
3T5B010311
THERMOSTAT CAP
14
3T5010320
THERMOSTAT CAP GASKET
15
9101E35625
BOLT
16
3GFB010910
CYLINDER HEAD
17
3T5010050
CYLINDER HEAD GASKET
18
345011110
DOWEL PIN 6-12
19
9161890865
BOLT
20
345010150
WASHER 8.5-19.5-3.2
21
3T5069711
CLAMP 8.5-85P
22
3C8015131
HANGER
23
9101F40835
BOLT
24
9401210800
WASHER
25
3Z5B023001
EXHAUST COVER ASSY
26
3C8023020
EXHAUST COVER (INNER)
27
3C8023052
EXHAUST COVER GASKET
28
9161F90630
BOLT
29
9401030600
WASHER
30
9401210600
WASHER
31
3T4069721
CLAMP 6.5-87P
32
9106E30808
BOLT
33
332600060
GASKET 8.1-15-1
34
338602182
ANODE
35
9101035620
BOLT
36
970111111
SPARK PLUG (IZFR6Q)
37
98AB50250
RUBBER HOSE
38
98AB50075
HOSE
39
98AB50115
HOSE
40
338022150
CLIP 10
41
393011600
LINE CHECK VALVE
42
98AL40355
HOSE
43
98AL40205
HOSE
44
98AL40335
HOSE
45
338011330
CLIP 7
46
309069720
CLAMP 6.5-47.5P
47
9101030610
BOLT
48
9101035610
BOLT
49
3T7011750
T-NIPPLE (WITH VALVE)
50
3C8012910
CRANK CASE HEAD
51
346012160
O-RING 1.7-59
52
3T5001220
OIL SEAL 25-40-8
53
3C8012150
OIL SEAL 16-28-7
54
9101035620
BOLT
