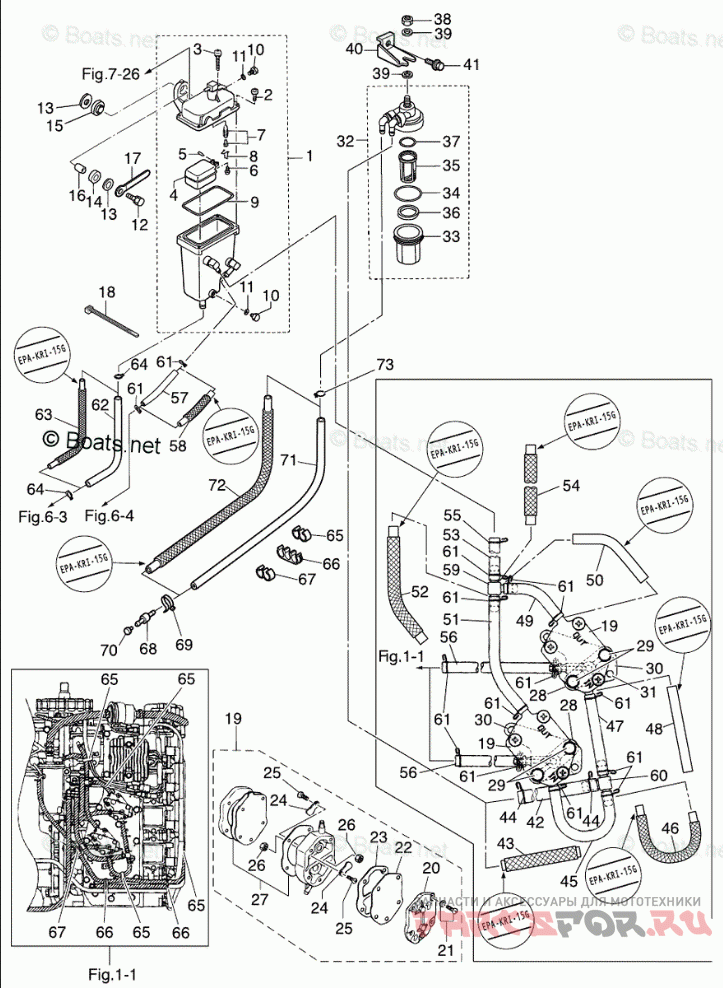

VAPOR SEPARATOR & FUEL LINE

Tohatsu MD115A2

Tohatsu
#oem кодцена
1
3T5101501
VAPOR SEPARATOR ASSY
2
9225316414
SCREW
3
9215036430
SCREW
4
3T5032300
FLOAT
5
3F3032320
ARM PIN FLOAT
6
9215030408
SCREW
7
3R3032390
FLOAT VALVE
8
344032440
CLIP
9
3T5032350
O-RING
10
345032920
DRAIN SCREW
11
336032930
O-RING
12
9101036630
BOLT
13
346671150
WASHER 6.5-21-1
14
346671130
RUBBER MOUNT 8.5-14-2.5
15
3B7069200
RUBBER MOUNT 8.5-14-2.5
16
346671141
SPACER 6.2-9-15.7
17
309069720
CLAMP 6.5-47.5P
18
3T5843980
LEAD WIRD BAND 104
19
356040001
FUEL PUMP
20
334040040
PUMP COVER
21
9225F26528
SCREW
22
334040050
PUMP DIAPHRAGM
23
334040070
DIAPHRAGM GASKET B
24
356040440
CHECK VALVE
25
9217220306
SCREW
26
9302220300
NUT
27
356040300
DIAPHRAGM GASKET SET
28
346049012
GASKET
29
9101036640
BOLT
30
3T1041000
FUEL PUMP BRACKET
31
9101035620
BOLT
32
3T1022300
FUEL FILTER
33
3B7022370
CUP
34
3B7022350
O-RING A
35
3B7022340
FILTER
36
3T5022290
FLOAT
37
3B7022360
O-RING B
38
9301030800
NUT
39
9401030800
WASHER
40
3T1022390
FILTER PLATE
41
9101036614
BOLT
42
98AB70300
HOSE
43
3HL021700
FUEL HOSE W/PROTECTOR L=300
44
3C7022150
CLIP 12
45
98AB50140
HOSE
46
3HL021650
FUEL HOSE W/PROTECTOR L=140
47
98AB50110
RUBBER HOSE
48
3KD021350
LOW PERMEATION HOSE L=110
49
98AB50040
HOSE
50
3HK021350
LOW PERMEATION HOSE L=40
51
98AB50140
HOSE
52
3HL021650
FUEL HOSE W/PROTECTOR L=140
53
98AB50100
HOSE
54
3HK021660
FUEL HOSE W/PROTECTOR L=100
55
3AB351430
CLIP 9.5
56
98AB50140
HOSE
57
98AB50090
RUBBER HOSE
58
3KD021650
FUEL HOSE W/PROTECTOR L=90
59
394700130
HOSE JOINT T TYPE
60
3C7020920
PIPE JOINT 7-5
61
338022150
CLIP 10
62
98AB70160
HOSE
63
3HK021700
FUEL HOSE W/PROTECTOR L=160
64
3C7022150
CLIP 12
65
3T1069150
HOSE CLAMP
66
3U1069150
HOSE CLAMP
67
3T1069170
CLAMP 10
68
3T1600180
FUEL HOSE NIPPLE
69
3T5843980
LEAD WIRD BAND 104
70
3T1038130
FUEL HOSE NIPPLE PLUG
71
98AB701200
HOSE
72
3KD021701
FUEL HOSE W/PROTECTOR L=1200
73
3C7022150
CLIP 12
