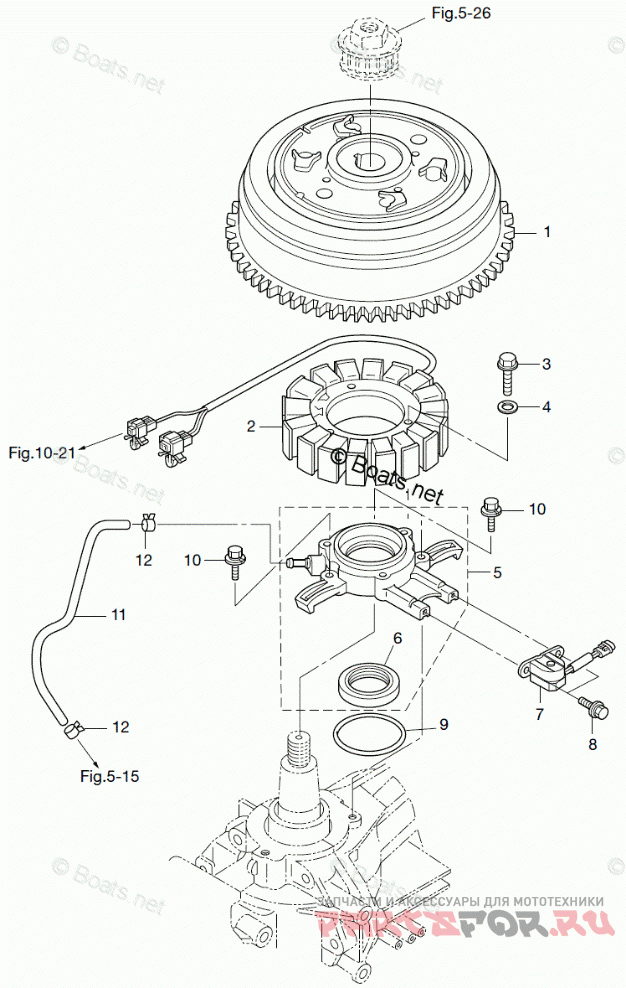

MAGNETO
Tohatsu MD115A2
| # | oem код | название | цена |
|---|---|---|---|
1 | 3T1061910 FLYWHEEL | FLYWHEEL | |
2 | 3T1061230 ALTERNATOR | ALTERNATOR | |
3 | 9101035635 BOLT | BOLT | |
4 | 9413030600 SPRING WASHER | SPRING WASHER | |
5 | 3T1060070 COIL BRACKET ASSY | COIL BRACKET ASSY | |
6 | 3T1001210 OIL SEAL 35-58-9 | OIL SEAL 35-58-9 | |
7 | 3T1061450 PICK-UP COIL | PICK-UP COIL | |
8 | 9101036512 BOLT | BOLT | |
9 | 3C7014030 O-RING 2.4-59.6 | O-RING 2.4-59.6 | |
10 | 9101035620 BOLT | BOLT | |
11 | 99AA20360 PIPE | PIPE | |
12 | 3B7090520 CLIP 6.9 | CLIP 6.9 |
