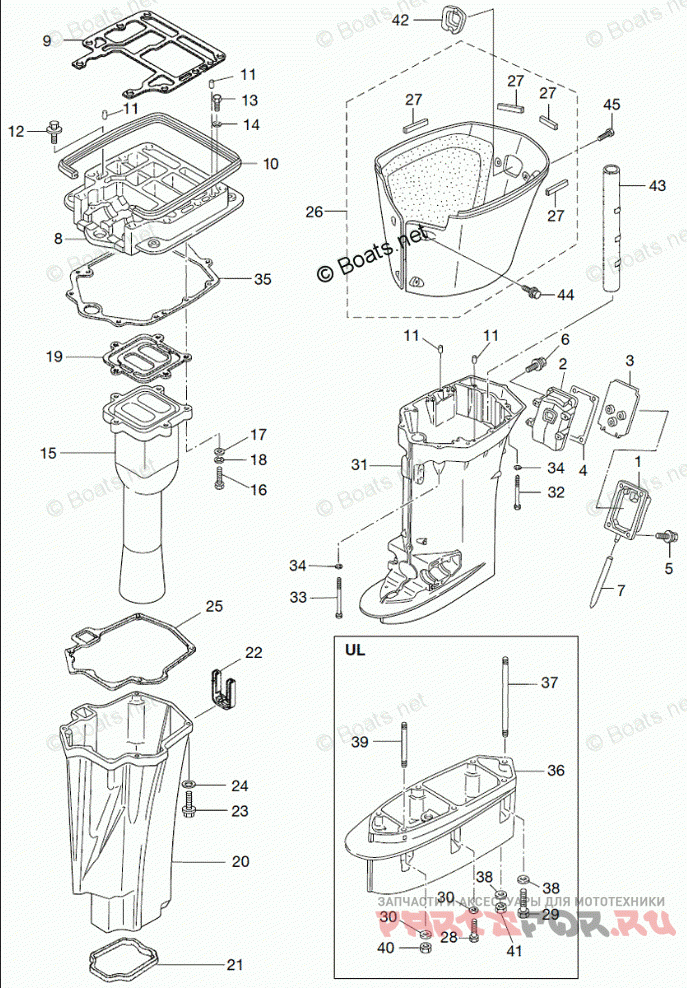

DRIVE SHAFT HOUSING

Tohatsu MD115A2

Tohatsu
#oem кодцена
1
3T1Q612450
IDLE EXHAUST PASSAGE COVER
2
3T1Q612410
IDLE EXHAUST PASSAGE
3
3T1612420
IDLE EXHAUST PASSAGE SEPARATION
4
3T1612440
GASKET
5
9101E35620
BOLT
6
9101E35635
BOLT
7
3T1610970
WATER OUTLET HOSE
8
3C7Q013011
ENGINE BASEMENT
9
3C7013035
ENGINE BASEMENT GASKET
10
3B7671160
ENGINE BASEMENT SEAL
11
345011110
DOWEL PIN 6-12
12
9101035635
BOLT
13
3C7013120
BOLT 8-50
14
9401030800
WASHER
15
3T1023110
EXHAUST PIPE
16
9101F40835
BOLT
17
9401030800
WASHER
18
9413030800
SPRING WASHER
19
3C7023122
EXHAUST PIPE GASKET
20
3D8611800
EXHAUST HOUSING
21
3B7611821
GROMMET
22
3B7612070
IDLE EXHAUST PORT GROMMET
23
9101030830
BOLT
24
9402030800
WASHER
25
3B7611812
EXHAUST HOUSING GASKET
26
3T1Q612251
APRON ASSY
27
3T1612130
APRON SEAL
28
3T1600011
BOLT 8-35
29
3B7600015
BOLT 10-40
30
9401E30800
WASHER
31
3T1Q611920
DRIVE SHAFT HOUSING (L)
32
3C7610172
BOLT 10-107
33
3C7610182
BOLT 10-120
34
9401E31000
WASHER
35
3C7610122
DRIVE SHAFT HOUSING GASKET
36
3B7Q611100
EXTENSION HOUSING UL
37
3B7611121
STUD 10-165
38
9402E31000
WASHER
39
9153E30825
STUD
40
9301030800
NUT
41
3B7611140
NUT 10-P1.25
42
3T1612120
APRON GROMMET
43
3B7611860
REVERSE GAS PASSAGE PIPE
44
9101E35612
BOLT
45
9101E35616
BOLT (OR 910113-5616)
