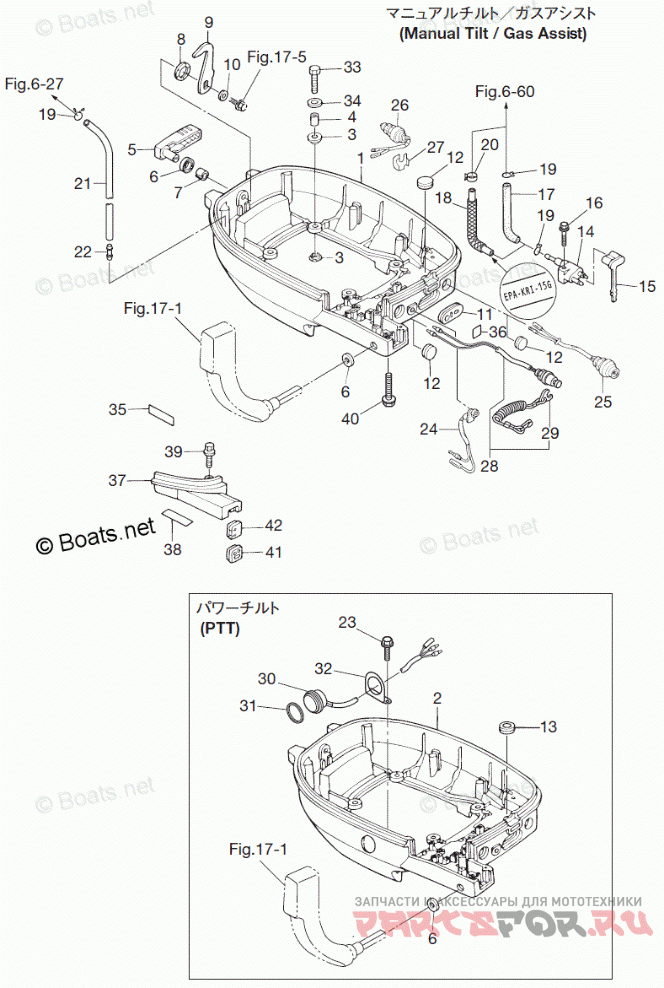

BOTTOM COWL

Tohatsu MFS30B

Tohatsu
#oem кодцена
1
3ACQ671000
BOTTOM COWL
2
3ADQ671000
BOTTOM COWL
3
346671130
RUBBER MOUNT 8.5-14-2.5
4
346671141
SPACER 6.2-9-15.7
5
3R3Q671410
HOOK LEVER
6
338671470
SEAL RING
7
350671050
BUSHING 14 -16.5 -17.7
8
9414031400
WAVE WASHER D=14
9
3R3671420
COVER HOOK
10
3R0663080
WASHER 6-16-1.5
11
353671620
GROMMET BATTERY CORD
12
345671170
GROMMET 17-2.7
13
338671630
GROMMET 18-2.5
14
394702600
FUEL CONNECTOR ( ENGINE MALE)
15
3H6702620
FUEL CONNECTOR PROTECTOR
16
9101E35630
BOLT
17
98AB50300
FUEL PIPE
18
3AC021650
FUEL HOSE W/PROTECTOR L=300
19
338022150
CLIP 10
20
3AB351430
CLIP 9.5
21
98AR50600
HOSE
22
3BA011380
WATER NIPPLE
23
9101E35616
BOLT (OR 910113-5616)
24
3R3710400
WARNING LAMP
25
3AA760260
MAIN SWITCH
26
361760800
NEUTRAL SWITCH
27
398760830
NEUTRAL SWITCH ACTUATOR
28
398068300
STOP SWITCH
29
353068210
STOP SWITCH LANYARD
30
3AC726150
PTT SWITCH
31
3F3726161
GASKET PTT SWITCH
32
3F3726171
BRACKET PTT SWITCH
33
9101E30630
BOLT
34
346671150
WASHER 6.5-21-1
35
3H6675720
STORAGE DECAL
36
3H6761990
OIL PRESSURE DECAL
37
3R0Q761180
SHIFT LEVER BRACKET COVER
38
3V9675781
SHIFT DECAL (F N R)
39
9101E35635
BOLT
40
9101E35650
BOLT
41
3R0837320
GROMMET CONTROL CABLE
42
3R0636210
GROMMET THROTTLE CABLE
