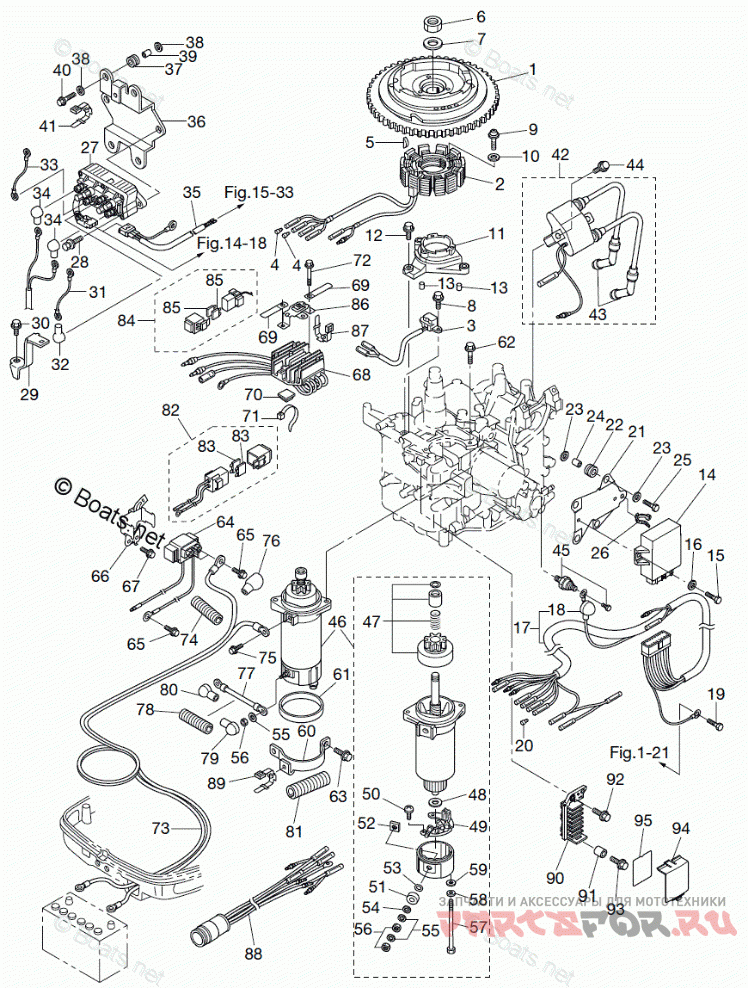

MAGNETO & ELECTRIC PARTS

Tohatsu MFS20C

Tohatsu
#oem кодцена
1
3BJ061910
FLYWHEEL CUP (WITH RING GEAR)
2
3BJ060230
ALTERNATOR
3
3BJ060710
PULSER COIL
4
3A3760370
CABLE TERMINAL PLUG
5
3T5101310
KEY
6
9311211600
NUT 16-P1.5
7
3H8001330
WASHER 16-27-3.2
8
9101035514
BOLT
9
9215036630
SCREW
10
9402030600
WASHER
11
3V6060080
COIL BRACKET
12
3AD068640
BOLT 6-25 PRE-COATED
13
345011110
DOWEL PIN 6-12
14
3BJ060601
CD UNIT
15
3V1601080
BOLT 6-16 PRECOATED
16
3R0663080
WASHER 6-16-1.5
17
3BJ061670
C.D. UNIT CORD ASSY
18
3H6076120
GROMMET OIL PRESSURE SWITCH
19
9101E35612
BOLT
20
3A3760370
CABLE TERMINAL PLUG
21
3BJ060610
C.D. UNIT BRACKET
22
3AC069200
RUBBER MOUNT
23
3R0663080
WASHER 6-16-1.5
24
3BJ063030
COLLAR 6.2-9-8.7
25
9101E30620
BOLT
26
3BJ843980
LEAD WIRE BAND 135
27
3Z0725800
POWER TILT SOLENOID SWITCH A
28
9101E35620
BOLT
29
3BA761740
STAY
30
9101E35616
BOLT (OR 910113-5616)
31
3BA725820
SOLENOID SWITCH CORD A
32
3Y1761450
TERMINAL CAP
33
3C8725831
CORD B SOLENOID SWITCH
34
3Y1761450
TERMINAL CAP
35
3BJ725690
EXTENSION CORD (PTT)
36
3BJ069010
PTT SOLENOID BRACKET
37
3AC069200
RUBBER MOUNT
38
3R0663080
WASHER 6-16-1.5
39
3BJ063030
COLLAR 6.2-9-8.7
40
9101E30620
BOLT
41
3BJ843980
LEAD WIRE BAND 135
42
3BJ060400
IGNITION COIL
43
3AC069990
PLUG CAP (WITH RESISTANCE)
44
9101E35625
BOLT
45
3H6076110
OIL PRESSURE SWITCH
46
3C8760101
STARTER MOTOR
47
3C8760150
PINION ASSY
48
3C8750150
WASHER
49
3C8750140
BRUSH HOLDER ASSY
50
9215216408
SCREW
51
3C8750160
BUSHING 1
52
3C8750170
BUSHING 2
53
3C8750180
O-RING
54
9401030600
WASHER
55
9413030600
SPRING WASHER
56
9302030600
NUT
57
3C8750190
BOLT
58
9413210500
SPRING WASHER
59
9402210500
WASHER
60
3BJ760090
STARTER MOTOR BAND
61
3C8760070
RUBBER STARTER MOTOR
62
9101E35825
BOLT
63
9101E35818
BOLT
64
3BJ760400
STARTER SOLENOID
65
9101035610
BOLT
66
3BJ760430
STARTER SOLENOID BRACKET
67
9101035612
BOLT
68
3BJ760601
RECTIFIER COMPLETE
69
309069720
CLAMP 6.5-47.5P
70
3BJ761640
BAND MOUNT
71
3Z0843980
LEAD WIRE BAND 203
72
9101035625
BOLT
73
3BH761200
BATTERY CABLE
74
3BJ061330
PROTECTOR 10.7-320
75
9101035612
BOLT
76
3BJ761450
TERMINAL CAP
77
3R3761410
STARTER CORD (L=270)
78
3BA061330
PROTECTOR 10.7-180
79
3Y0761450
TERMINAL CAP
80
3AA761450
TERMINAL CAP
81
3BH061330
PROTECTOR 10.7-75
82
3V1760660
FUSE CABLE
83
3T5762470
FUSE (20A)
84
3BJ760660
FUSE CABLE
85
3T5762470
FUSE (20A)
86
3BJ760640
FUSE HOLDER BRACKET
87
3BJ843980
LEAD WIRE BAND 135
88
3BJ761100
CORD ASSY
89
3BJ843980
LEAD WIRE BAND 135
90
3BJ062810
CABLE TERMINAL HOLDER
91
174350120
COLLAR 6-8-6
92
9101E35616
BOLT (OR 910113-5616)
93
9101E35612
BOLT
94
3BJ069020
TERMINAL HOLDER COVER
95
3BJ720281
WIRING DIAGRAM DECAL
