DRIVE SHAFT HOUSING для лодочных моторов Tohatsu MFS15C (2012)

Москва и регионы России

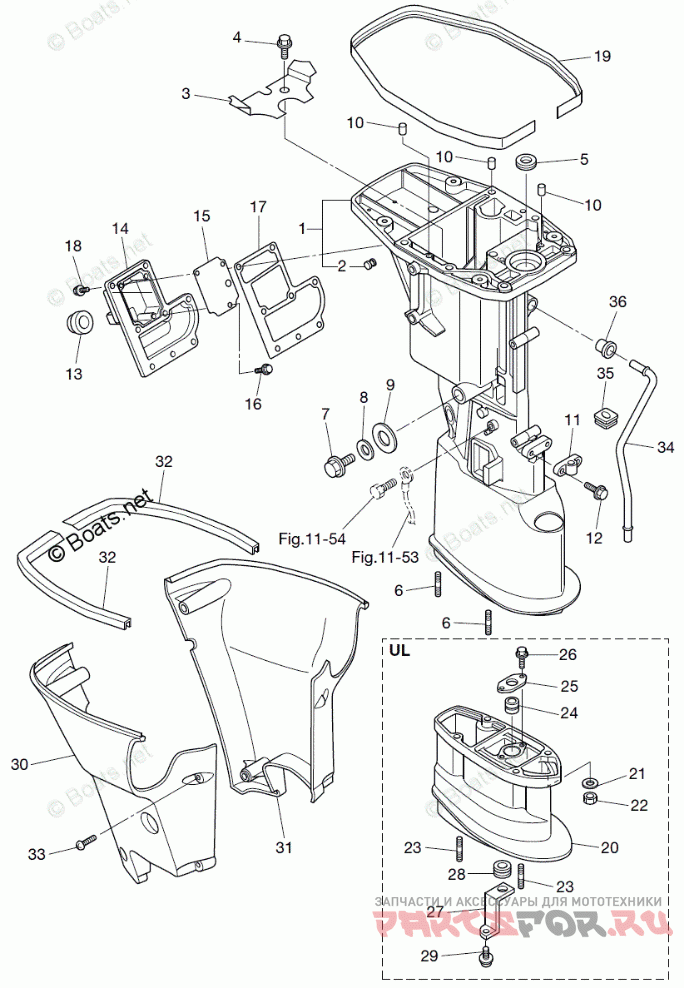

DRIVE SHAFT HOUSING

Tohatsu MFS15C

DRIVE SHAFT HOUSING

#

oem код

название

цена

1

DRIVE SHAFT HOUSING S

DRIVE SHAFT HOUSING S

2

EXHAUST PLUG

EXHAUST PLUG

3

GUIDE PLATE

GUIDE PLATE

4

BOLT

BOLT

5

OIL SEAL 12.8-25-7

OIL SEAL 12.8-25-7

6

STUD BOLT

STUD BOLT

7

DRAIN BOLT

DRAIN BOLT

8

WASHER 14.5-24-1

WASHER 14.5-24-1

9

OIL DRAIN GROMMET

OIL DRAIN GROMMET

10

DOWEL PIN 6-12

DOWEL PIN 6-12

11

CAM ROD HOLDER

CAM ROD HOLDER

12

BOLT

BOLT

13

IDLE EXHAUST PORT GROMMET

IDLE EXHAUST PORT GROMMET

14

IDLE EXHAUST PORT COVER

IDLE EXHAUST PORT COVER

15

IDLE EXHAUST PORT PLATE

IDLE EXHAUST PORT PLATE

16

BOLT

BOLT

17

IDLE EXHAUST PORT GASKET

IDLE EXHAUST PORT GASKET

18

BOLT

BOLT

19

ENGINE BASEMENT SEAL

ENGINE BASEMENT SEAL

20

EXTENSION HOUSING UL

EXTENSION HOUSING UL

21

WASHER 8.1 -16 -1.5

WASHER 8.1 -16 -1.5

22

NUT

NUT

23

STUD BOLT

STUD BOLT

24

DRIVE SHAFT BUSHING

DRIVE SHAFT BUSHING

25

BUSHING STOPPER

BUSHING STOPPER

26

BOLT

BOLT

27

LOCK PLATE

LOCK PLATE

28

RUBBER MOUNT 13-2.5

RUBBER MOUNT 13-2.5

29

SCREW

SCREW

30

DRIVE SHAFT HOUSING COVER (RIGHT)

DRIVE SHAFT HOUSING COVER (RIGHT)

31

DRIVE SHAFT HOUSING COVER (LEFT)

DRIVE SHAFT HOUSING COVER (LEFT)

32

APRON SEAL

APRON SEAL

33

TAPPING SCREW 6 - 60

TAPPING SCREW 6 - 60

34

WATER PIPE S

WATER PIPE S

35

WATER PIPE AUXILIARY MOUNT

WATER PIPE AUXILIARY MOUNT

36

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)
