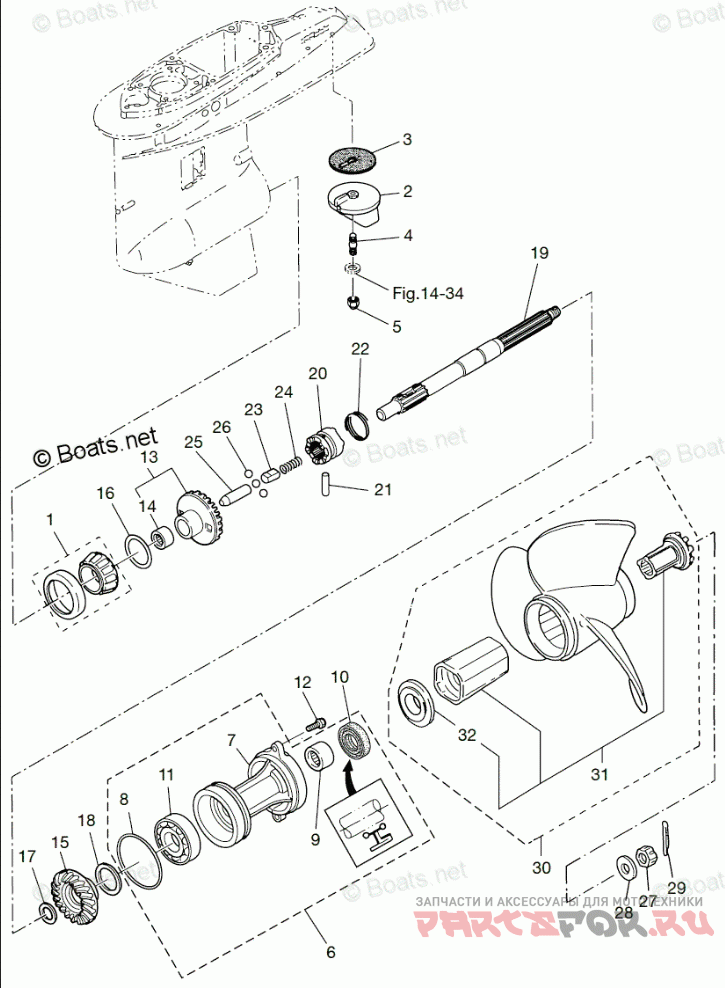

GEAR CASE (PROPELLER SHAFT)

Tohatsu MD115A2

GEAR CASE (PROPELLER SHAFT)

#

oem код

название

цена

1

TAPER ROLLER BEARING 30209

TAPER ROLLER BEARING 30209

2

TRIM TAB

TRIM TAB

3

TRIM TAB

TRIM TAB

4

STUD BOLT

STUD BOLT

5

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

6

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

7

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

8

O-RING 3.1-94.4

O-RING 3.1-94.4

9

NEEDLE BEARING 30-40-30

NEEDLE BEARING 30-40-30

10

OIL SEAL 30-50-12

OIL SEAL 30-50-12

11

BEARING 6208

BEARING 6208

12

PRE-COATED BOLT 8-30

PRE-COATED BOLT 8-30

13

BEVEL GEAR A

BEVEL GEAR A

14

NEEDLE BEARING 25-32-26

NEEDLE BEARING 25-32-26

15

BEVEL GEAR C

BEVEL GEAR C

16

SHIM 47-57-0.15

SHIM 47-57-0.15

17

BEVEL GEAR C WASHER

BEVEL GEAR C WASHER

18

SHIM 42-50-0.15

SHIM 42-50-0.15

19

PROPELLER SHAFT

PROPELLER SHAFT

20

CLUTCH

CLUTCH

21

CLUTCH PIN

CLUTCH PIN

22

CLUTCH PIN SNAP

CLUTCH PIN SNAP

23

SPRING RETAINER L=30.5

SPRING RETAINER L=30.5

24

CLUTCH SPRING

CLUTCH SPRING

25

PUSH ROD

PUSH ROD

26

BALL

BALL

27

PROPELLER NUT

PROPELLER NUT

28

WASHER 17-32-3

WASHER 17-32-3

29

SPLIT PIN 3-25

SPLIT PIN 3-25

30

PROPELLER ASSY (11)

PROPELLER ASSY (11)

31

PROPELLER HUB KIT

PROPELLER HUB KIT

32

FORWARD THRUST WASHER

FORWARD THRUST WASHER
