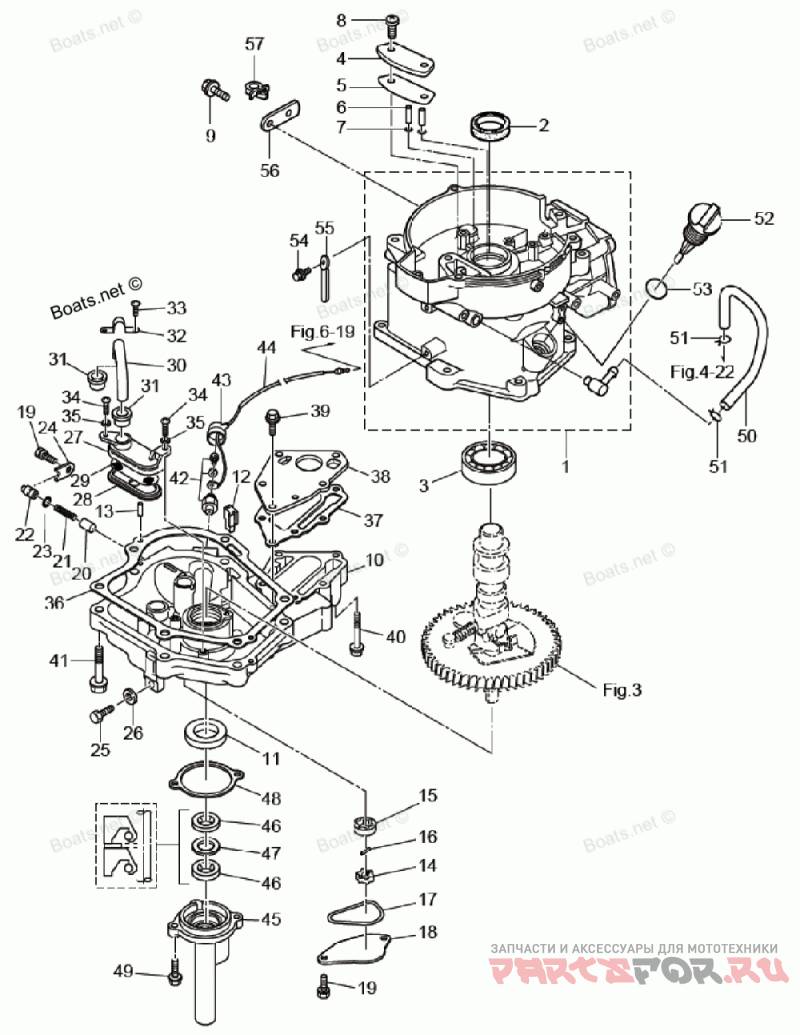

Cylinder & Oil Pan

Tohatsu MFS6C

Tohatsu
#oem кодцена
1
3GRB011840
CYLINDER BLOCK
2
101001210M
OIL SEAL 20-35-7
3
960136205M
BALL SEAL 6205
5
3AS074320M
GASKET BREATHER CHAMBER COVER
6
3R1074390M
COLLAR BREEZER
7
9414030500
WAVE WASHER, DIAMETER: 5
8
9215216616
Винт
9
9101035612
Болт
10
3AS077090M
OILPAN SUB-ASSEMBLY
11
3GR001220M
OIL SEAL 25-40-8
12
3H6074040M
GROMMET OILPAN
13
345011110M
DOWEL PIN 6-12
14
3H6076010M
OIL PUMP ROTOR, INNER
15
3H6076020M
OIL PUMP ROTOR, OUTER
16
3H6076030M
PIN OIL PUMP
17
3R1076050M
O-RING OIL PUMP COVER 3.1
18
3H6076060M
Крышка насоса
19
9101216616
BOLT 6-16
20
3H6076210M
PLUGER CONTROL
21
3H6076220M
SPRING PRESHER
22
3H6076230M
Пружины
23
345660210M
O-RING 1.9-6.8
24
3H6671150M
PLUNGER COVER
25
3H6077051M
DRAIN BOLT
26
3H6074060M
WASHER 10.2-19-1
27
3H6074110M
STRAINER BODY
28
3H6074120M
STRAINER CAP
29
3H6074130M
MESH STRAINER
30
3H6074150M
PIPE STRAINER
31
3H6074160M
SEAL RUBBER STRAINER
32
3H6074170M
STRAINER STOPPER
33
9215216512
Винт
34
3C8024200M
BOLT 5-16, PRECOATED
35
9401210500
Шайба
36
3H6074020M
OILPAN GASKET
37
3H6023050M
EXHAUST COVER GASKET
38
3H6023021M
EXHAUST COVER, INNER
39
9101F45620
BOLT 6-20
40
9101F45640
Болт
41
9101245840
Болт
42
3H6076110M
Датчик давления масла
43
3H6076120M
GROMMET OIL PRESSURE SWITCH
44
3GR076130M
OIL PRESSURE SWITCH LEAD WIRE L=390
45
369012104M
CRANKCASE HEAD
46
3GR012150M
OIL SEAL 10.1-25-7
47
369012170M
SPACER 19-24.8-1.0
48
369012140M
CRANKCASE HEAD GASKET
49
9101035620
Болт
50
3R1074350M
Шланг
51
3C7022150M
CLIP 12
52
3H6074210M
OIL LEVEL GAUGE
53
3H6074220M
O-RING 2.62-18.72
54
9101035612
BOLT WASHER
55
309069720M
CLAMP 6.5-47.5P
56
3GR635050M
CLAMP HOLDER
57
3GR069730M
Зажим
