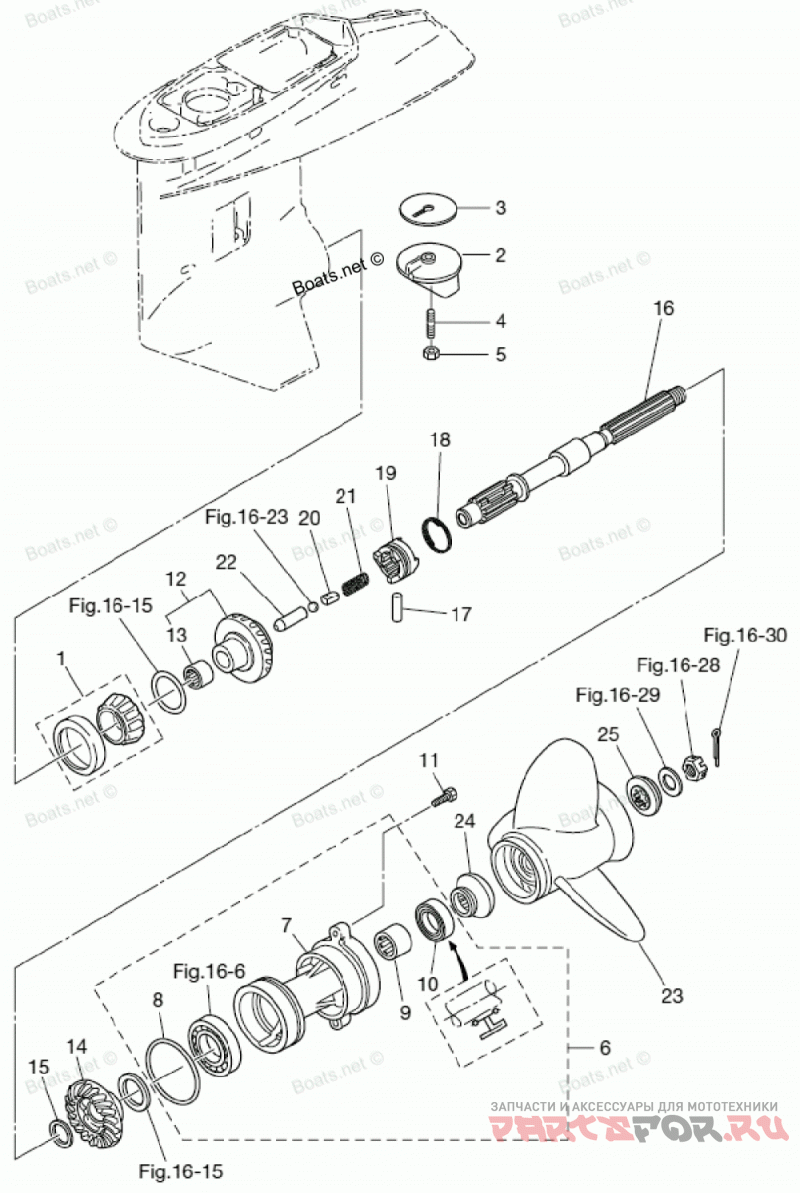

Gear Case, Propeller Shaft, Mwd50, Big Foot

Tohatsu MD50B2

Tohatsu
#oem кодцена
1
3F3602150M
TAPERED ROLLER BEARING 32007JR
2
3B7602171M
Триммер
3
3B7602190M
TRIM TAB GASKET
4
9153030825
Шпилька
5
9304030800
NYLON NUT 8P1.25
6
3A3Q601000
PROPELLER SHAFT HOUSING ASSEMBLY
7
3A3Q601010
PROPELLER SHAFT HOUSING
8
353601030M
O-RING 3.5-74.6
9
353602110M
ROLLER BEARING PROPELLER SHAFT
10
353601110M
OIL SEAL 25-38-10
11
3C7601081M
PRE-COATED BOLT 8-30
12
3F3640103M
BEVEL GEAR ASSEMBLY A
13
345640110M
ROLLER BEARING 202720
14
3F3640300M
BEVEL GEAR C
15
353640320M
WASHER 22.1-28-3.0
15
353640340M
WASHER 22.1-28-2.75
15
353640350M
WASHER 22.1-28-2.5
16
3A3642110M
Вал гребного винта
17
353642181M
PIN CLUTCH
18
353642192M
SNAP PIN CLUTCH
19
3F3642150M
Муфта сцепления
20
3A3642220M
SPRING RETAINER CLUTCH
21
346642210M
SPRING CLUTCH
22
353642231M
PUSH ROD CLUTCH
23
353B641010
PROPELLER ASSEMBLY 9"
23
353B641090
PROPELLER ASSEMBLY 17.5"
23
353B641020
PROPELLER ASSEMBLY 10"
23
353B641030
PROPELLER ASSEMBLY 11"
23
353B641050
PROPELLER ASSEMBLY, 13"
23
353B641060
PROPELLER ASSEMBLY 14"
23
353B641070
PROPELLER ASSEMBLY 15"
23
353B641040
PROPELLER ASSEMBLY 12"
23
353B641080
PROPELLER ASSEMBLY 16.5"
24
353642310M
THRUST HOLDER A PROPELLER
25
353642330M
STOPPER A PROPELLER
