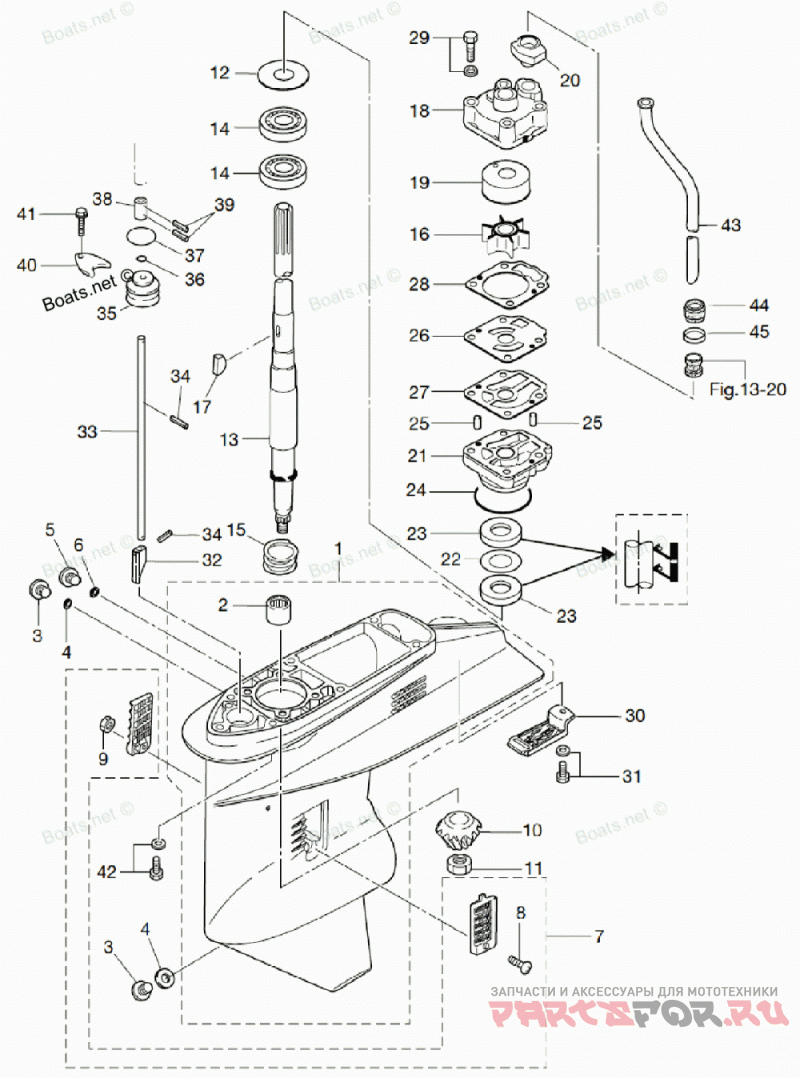

Gear Case, Drive Shaft

Tohatsu MD50B2

Tohatsu
#oem кодцена
1
3C8Q600900
GEAR CASE ASSEMBLY, WITH SUBWATER PIPE
2
345602110M
ROLLER BEARING 22-30-30
3
332600052M
Заглушка
4
332600060M
GASKET 8.1-15-1
5
3B7600151M
PLUG WATER
6
3B7600161M
GASKET 10.1-15-1
7
3C8602051M
WATER STAINER SET
8
9215030438
Винт
9
9304030400
NYLON NUT 4P0.7
10
3C8640202M
BEVEL GEAR B
11
3C8640270M
NUT BEVEL GEAR B
12
345640820M
SHIM 41-51.5-0.15
12
345640830M
SHIM 41-51.5-0.3
12
345640840M
SHIM 41-51.5-0.5
12
345640810M
SHIM 41-51.5-0.1
13
3C8643010M
DRIVE SHAFT S
13
3C8643020M
DRIVE SHAFT L
13
3C8643030M
DRIVE SHAFT UL
14
3C8602130M
TAPERED ROLLER BEARING 6304
15
3C8643270M
DRIVE SHAFT SPRING
16
3C8650212M
WATER PUMP IMPELLER
17
332650220M
KEY PUMP IMPELLER
18
3T5650160M
PUMP CASE, UPPER
19
3T5650110M
PUMP CASE LINER
20
3C8650140M
WATER PIPE SEAL, LOWER
21
3C8650171M
PUMP CASE, LOWER
22
3C8640840M
SHIM 32.9-26-0.5
23
3C8602230M
OIL SEAL 17-33-6
24
345650150M
O-RING 3.2-47
25
334650120M
DOWEL PIN 4-10
26
3C8650250M
WATER PUMP GUIDE PLATE
27
3C8650292M
GUIDE PLATE GASKET
28
3T5650182M
PUMP CASE GASKET
29
9101E35855
Болт
30
3C8602040M
SUB-WATER INLET STRAINER
31
9101035616
BOLT 5-16
32
3C8660110M
Кулачковый толкатель
33
3C8660130M
CAM ROD, L
33
3C8660140M
CAM ROD, UL
33
3C8660120M
CAM ROD, S
34
9514070312
SPRING PIN 3-12
35
3C8660311M
CAM ROD BUSHING
36
332660210M
O-RING 2.4-5.8
37
3C8660320M
O-RING 3.5-21.7
38
3C8662410M
SHIFT ROD JOINT
39
9514030312
SPRING PIN 3-12
40
353660240M
STOPPER DRIVE SHAFT HOUSING
41
9101036612
Болт
42
9101E35835
Болт
43
3C8651200M
WATER PIPE UL
43
3C8651000M
WATER PIPE S
43
3C8651100M
WATER PIPE L
44
345652060M
WATER PIPE SEAL, UPPER
45
345652050M
COLLAR 18-20-4.5
