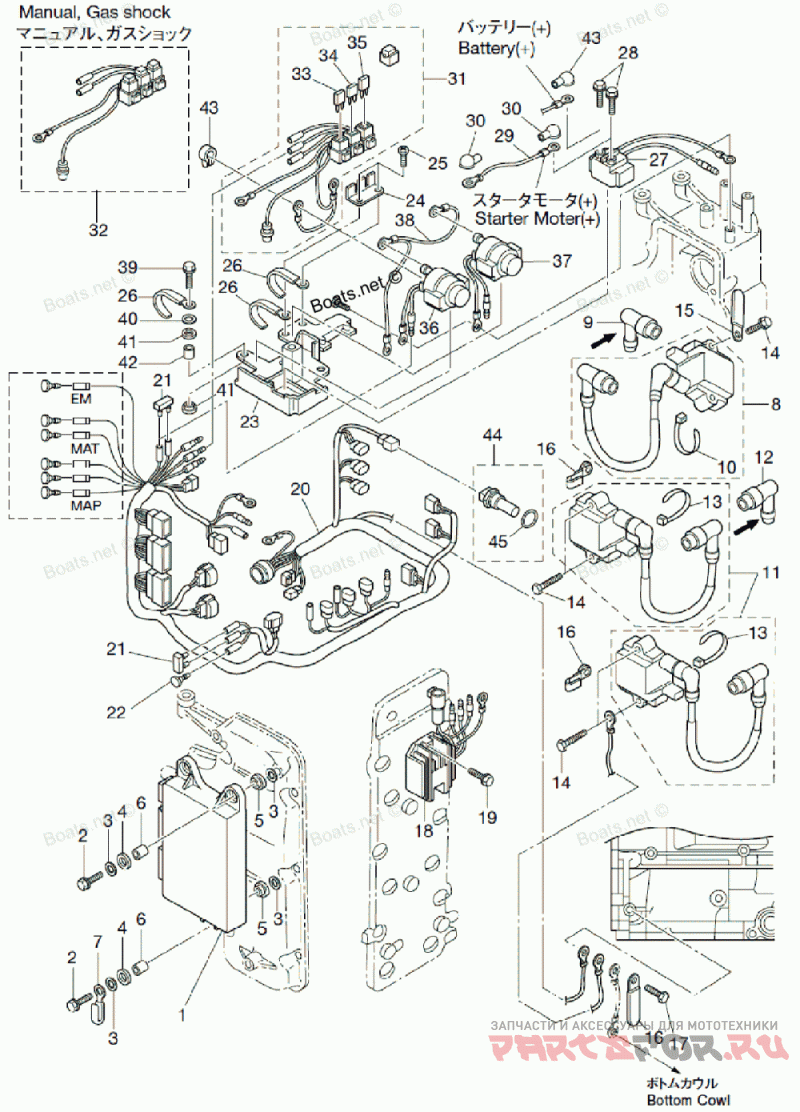

Electric Parts, Ecu & Diagram

Tohatsu MD50B2

Tohatsu
#oem кодцена
1
3GF064010M
ECU ASSEMBLY
2
9101036630
Болт
3
346671150M
WASHER 6.5-21-1
4
345671130M
MOUNT MOTOR COVER LOWER
5
3B7069200M
RUBBER MOUNT 8.5-14-2.5
6
3T5671140M
SPACER 6.2-9-16.6
7
309069720M
CLAMP 6.5-47.5P
8
3Z5064690M
IGNITION COIL, WITH RESISTANCE CAP #1
9
3H6069990M
PLUG CAP, WITH RESISTANCE
10
369843980M
BAND LEAD WIRE 158
11
3Z5064700M
IGNITION COIL, WITH RESISTANCE CAP
12
3H6069990M
PLUG CAP, WITH RESISTANCE
13
369843980M
BAND LEAD WIRE 158
14
9101037635
Болт
15
309069720M
CLAMP 6.5-47.5P
16
3T4069721M
CLAMP 6.5-87P
17
9101036614
Болт
18
3Z5760601M
RECTIFIER COMPLETE
19
9101035620
Болт
20
3GF761100M
CORD ASSEMBLY
21
3A3760370M
CABLE TERMINAL PLUG
21
353760370M
CABLE TERMINAL PLUG
22
3A3760370M
CABLE TERMINAL PLUG
22
353760370M
CABLE TERMINAL PLUG
23
3T5725850M
SOLENOID SWITCH BRACKET ASSEMBLY
24
3T9760640M
FUSE HOLDER BRACKET
25
3T5064370M
TAPPING SCREW 6-16
26
3T4069721M
CLAMP 6.5-87P
27
3H8760400M
STARTER SOLENOID
28
9101035610
Болт
29
3R3761410M
STARTER CABLE, LENGTH: 270
30
3A3761450M
TERMINAL CAP STARTER
31
3Y9760621M
FUSE WIRE ASSEMBLY
32
3Z5760660M
FUSE WIRE ASSEMBLY
33
3T5762490M
FUSE 30A
34
3Y9762480M
FUSE 25A
35
3T5762460M
FUSE 15A
36
3C8725800M
PTT SOLENOID SWITCH A
37
3C8725810M
PTT SOLENOID SWITCH B
38
3T5761421M
GROUND CABLE
39
9101036625
Болт
40
3C8663080M
WASHER 6-16-1.5
41
3F3069200M
RUBBER MOUNT 8.5-12-2
42
3T5760790M
COLLAR 6.2-9-10.7
43
3A3761450M
TERMINAL CAP STARTER
44
3Y9725140M
WATER TERMINAL CAP SENSOR, WITH OUT-RING
45
3G9661360M
O-RING 2.0-10.0
