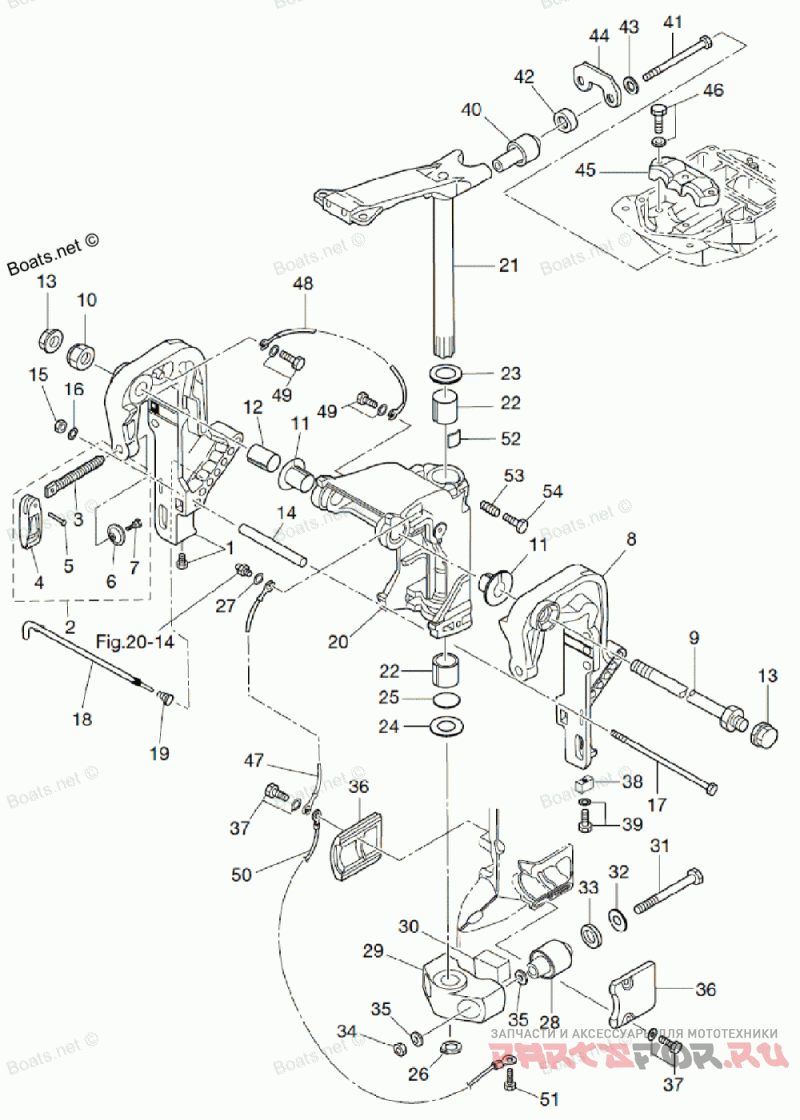

Bracket 1, Manual Tilt

Tohatsu MD50B2

Tohatsu
#oem кодцена
1
3C8Q621120
CLAMP BRACKET, RIGHT
2
3E3Q621050
CLAMP SCREW KIT
3
3E3621060M
CLAMP SCREW
4
332Q621021
CLAMP SCREW HANDLE
5
3C8621042M
RIVET 3-22
6
332621011M
CLAMP SCREW PAD
7
3C8621070M
SHOULDER BOLT
8
3C8Q621130
CLAMP BRACKET, L
9
3AC621910M
SWIVEL BRACKET SHAFT ASSEMBLY
10
346621241M
NYLON NUT 7/8
11
349621260M
BUSHING 26-32
12
3C8621320M
BUSHING 22-25-35.5
12
346621270M
CAP NUT BRACKET BOLT
14
3C8621171M
DISTANCE PIECE
15
9301030800
Гайка
16
9401E30800
Шайба
17
3C8621201M
BOLT 8-170
18
3C8621211M
Штанга
19
345621222M
THRUST ROD SPRING
22
345624170M
BUSHING 26-32
23
3A0624232M
THRUST PLATE, UPPER
24
346624241M
THRUST PLATE, LOWER
25
345624150M
O-RING 3.5-25.7
26
9451032500
C-RING DIAMETER:25
27
9401030600
Шайба
28
3C8613020M
RUBBER MOUNT, LOWER
29
3C8Q614112
MOUNT BRACKET
30
3C8613360M
DAMPER, LOWER
31
3C8613211M
BOLT LOWER MOUNT RUBBER
32
353613340M
WASHER 13-34-3
33
3C7613380M
Резиновый демпфер
34
9304031200
NYLON NUT 12P1.75
35
9402E31200
Шайба
36
3C8Q613420
MOUNT HOLDING PLATE, LOWER
37
9101E35620
Болт
38
3B7602181M
Анод
39
9101035635
Болт
40
3E3613011M
RUBBER MOUNT, UPPER
41
353613071M
Болт
42
3E3613330M
DAMPER, UPPER
43
353613350M
Шайба
44
3E3613350M
LOCK PLATE UPPER
45
3C8613410M
MOUNT HOLDING PLATE, UPPER
46
9101E35835
Болт
47
3C8623961M
GROUND, EARTH WIRE, LENGTH: 210
48
398623961M
GROUND, EARTH WIRE, LENGTH: 130
49
9101E35612
Болт
50
3A3623961M
GROUND, EARTH WIRE, LENGTH: 110
51
9101E35612
Болт
52
345624410M
Стопор фрикционный
53
346624211M
FRICTION SPRING
54
9101E30830
Болт
