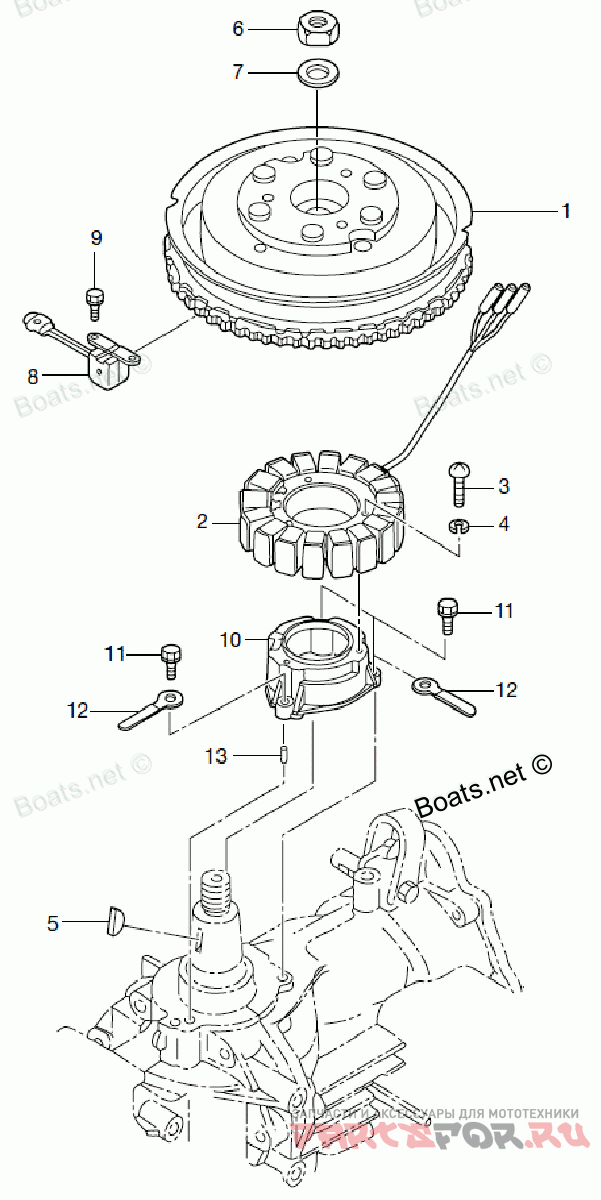

Генератор
Tohatsu MD40B2
| # | oem код | название | цена |
|---|---|---|---|
1 | 3T5061910M FLYWHEEL, WITH RING GEAR | FLYWHEEL, WITH RING GEAR | |
2 | 3Y9061230M ALTERNATOR ASSEMBLY | ALTERNATOR ASSEMBLY | |
3 | 9215030635 Винт | Винт | |
4 | 9413030600 Пружинная шайба | Пружинная шайба | |
5 | 334001310M KEY MAGNETO | KEY MAGNETO | |
6 | 353001320M NUT 18P1.5 | NUT 18P1.5 | |
7 | 353001330M WASHER 19-34-3 | WASHER 19-34-3 | |
8 | 3T5061450M PICK-UP COIL | PICK-UP COIL | |
9 | 9101036512 Болт | Болт | |
10 | 3T5060081M COIL BRACKET | COIL BRACKET | |
11 | 9101037625 Болт | Болт | |
12 | 309069720M CLAMP 6.5-47.5P | CLAMP 6.5-47.5P | |
13 | 334650120M DOWEL PIN 4-10 | DOWEL PIN 4-10 |
