Assembly для лодочных моторов Tohatsu MD115A (2011)

Москва и регионы России

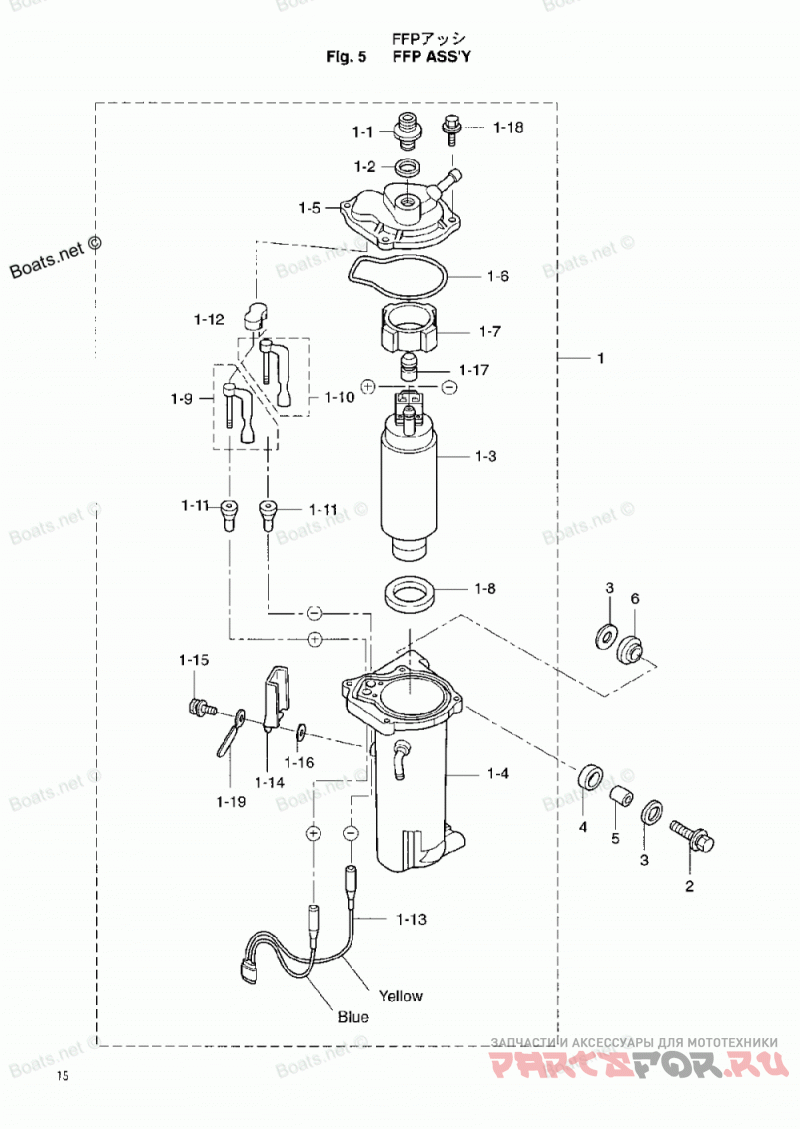

Assembly

Tohatsu MD115A

Assembly

#

oem код

название

цена

1

ASSEMBLY

ASSEMBLY

1-1

HOSE JOINT ADAPTER

HOSE JOINT ADAPTER

1-2

METAL WASHER, 10.2 - 17 - 2

METAL WASHER, 10.2 - 17 - 2

1-3

FUEL FEED PUMP

FUEL FEED PUMP

1-4

FFP CASE

FFP CASE

1-5

FFP CASE (UPPER)

FFP CASE (UPPER)

1-6

Уплотнительное кольцо

Уплотнительное кольцо

1-7

FFP GROMMET (UPPER)

FFP GROMMET (UPPER)

1-8

FFP GROMMET (LOWER)

FFP GROMMET (LOWER)

1-9

CABLE TERMINAL (POSITIVE)

CABLE TERMINAL (POSITIVE)

1-10

CABLE TERMINAL (NEGATIVE)

CABLE TERMINAL (NEGATIVE)

1-11

CABLE TERMINAL GROMMET

CABLE TERMINAL GROMMET

1-12

CABLE TERMINAL GROMMET (UPPER)

CABLE TERMINAL GROMMET (UPPER)

1-13

FFP CORD

FFP CORD

1-14

FFP CORD COVER

FFP CORD COVER

1-15

Болт

Болт

1-16

Шайба

Шайба

1-17

PIPE GROMMET

PIPE GROMMET

1-18

Болт

Болт

1-19

CLAMP, 6.5 - 47.5P

CLAMP, 6.5 - 47.5P

2

Болт

Болт

3

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

4

RUBBER MOUNT, 9 - 12 - 2

RUBBER MOUNT, 9 - 12 - 2

5

SPACER, 6.2 - 9 - 15.7

SPACER, 6.2 - 9 - 15.7

6

RUBBER MOUNT, 8.5 - 18 - 7

RUBBER MOUNT, 8.5 - 18 - 7
