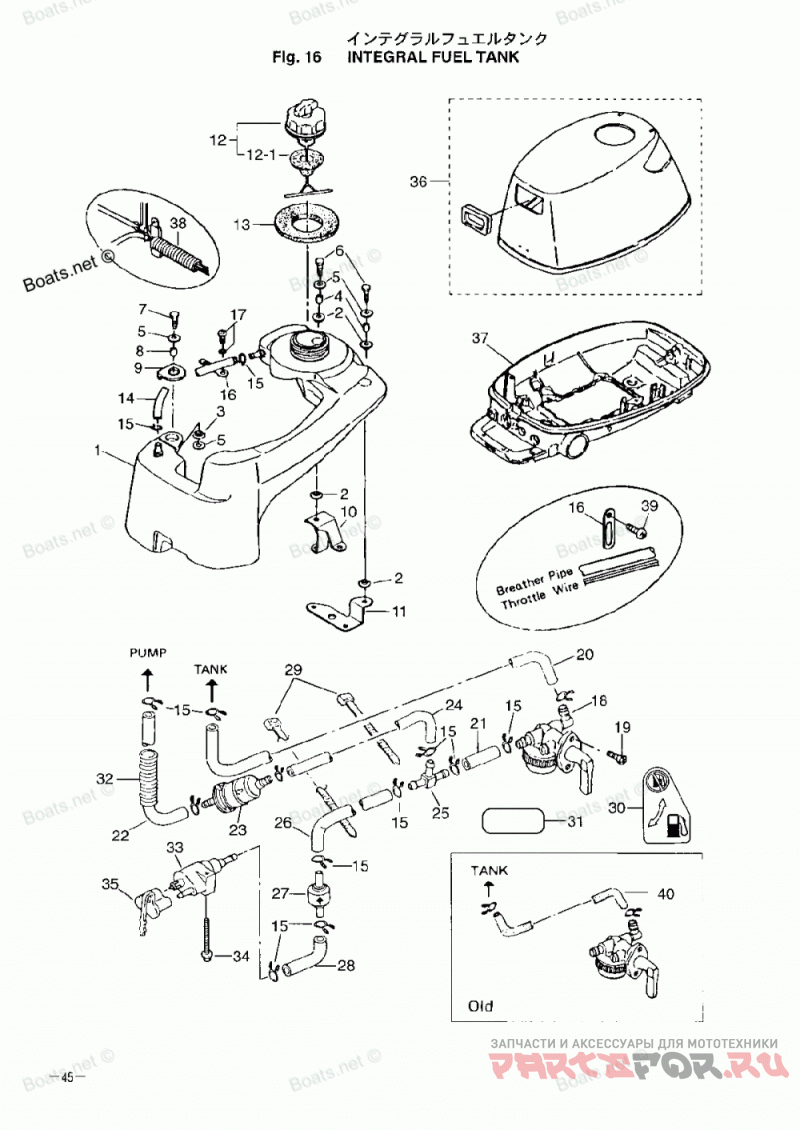

Fuel Tank (integral)

Tohatsu MFS6B

Tohatsu
#oem кодцена
1
3H9703161M
Топливный бак
2
346671130M
RUBBER MOUNT, 8.5-14-2.5
3
122350830M
RUBBER MOUNT, 9-23-4
4
346671140M
SPACER 6.2-9-15.7
5
346671150M
WASHER, 6.5-21-1
6
9101130625
Болт
7
9101130620
Болт
8
3H9700150M
SPACER, 6.2-9-11.5
9
3H9700480M
FUEL TANK HOLDING PLATE
10
3H9700440M
BRACKET (REAR)
12
3H9700200M
TANK CA
12-1
309700213M
TANK CAP GASKET
13
3H9700360M
FUEL TANK SEAL
14
98AB50250M
RUBBER HOSE
15
338022150M
CLIP, 10
16
309069720M
CLAMP, 6.5-47.5
17
9215035512
Винт
18
3H9703110M
FUEL COCK
19
9218030410
Винт
20
3H9703260M
FUEL HOSE, 4.5S-310
21
98AB50030M
RUBBER HOSE
22
394022110M
FUEL HOSE "C"
23
369022300M
Топливный Фильтр
24
3H9703250M
FUEL HOSE, 4.5L-230
25
394700130M
HOSE JOINT "T" TYPE
26
3H6022040M
FUEL HOSE, 4.5L-115
27
394703270M
NON RETURN VALVE
28
394703250M
FUEL HOSE "F"
29
369843980M
LEAD WIRE BAND, 150
30
3H9720240M
FUEL LEVER DECAL "B"
31
394720160M
FUEL LEVER DECAL "D"
32
3H9703130M
FUEL HOSE PROTECTOR
33
394702600M
FUEL CONNECTOR (ENGINE, MALE)
34
9101135640
Болт
35
3H6702620M
FUEL CONNECTOR PROTECTOR
36
3AUQ675001
TOP COWL (FOR INTEGRAL TANK)
37
3H9Q671002
BOTTOM COWL (FOR INTEGRAL TANK)
38
3H9061330M
WIRE HARNESS PROTECTOR
39
9215130612
Винт
