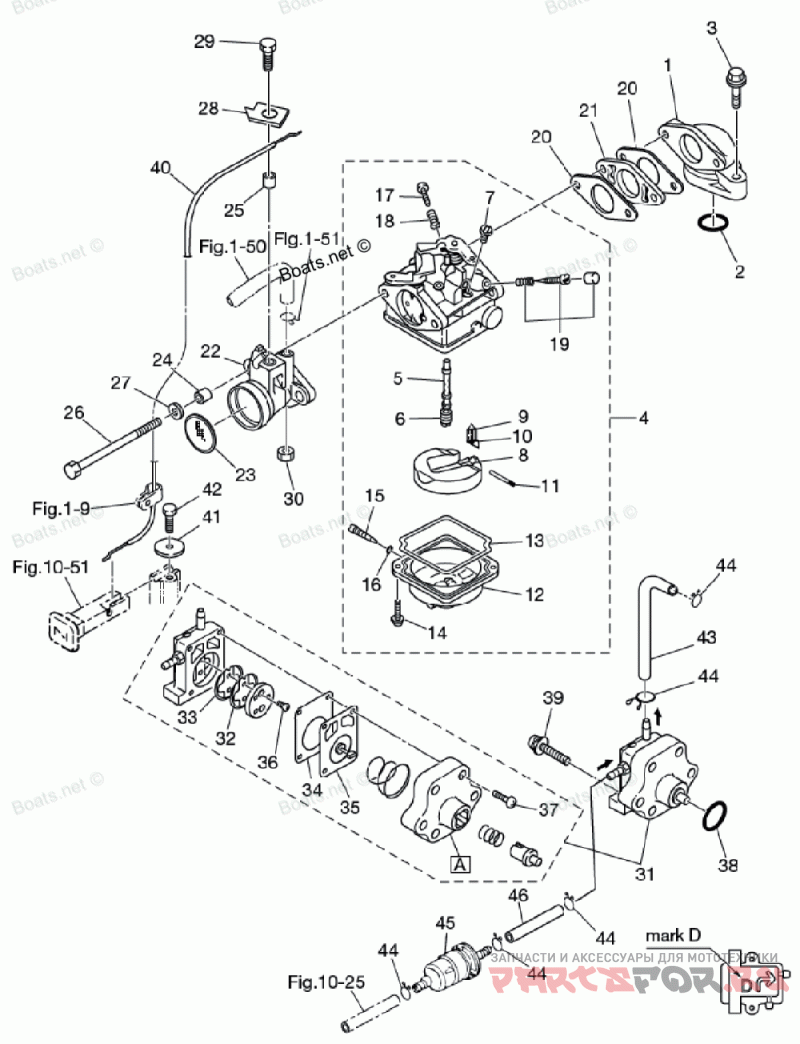

Carburetor & Fuel Pump

Tohatsu MFS4B

Tohatsu
#oem кодцена
1
3H6B020100
INTAKE MANIFOLD ASSEMBLY
2
3H6021040M
INTAKE MANIFOLD GASKET
3
9101245625
Болт
3
9101245630
Болт
4
3AU032000M
CARBURETOR ASSEMBLY
4
3AS032000M
CARBURETOR ASSEMBLY
4
3AT032000M
CARBURETOR ASSEMBLY
5
3AU032520M
MAIN NOZZLE
5
3AS032520M
MAIN NOZZLE
5
3AT032520M
MAIN NOZZLE
6
3AU044680M
MAIN JET #68
6
3R1032510M
MAIN JET #65
6
3H9032510M
MAIN JET #60
7
3R6032540M
SLOW JET #35
7
3R1032540M
SLOW JET #38
8
3H6032310M
Поплавок
9
3H6032400M
FLOAT VALVE
10
3H6032440M
Зажим
11
3H6032320M
FLOAT ARM PIN
12
3H6032210M
Поплавковая камера
13
3H6032220M
FLOAT CHAMBER O-RING
14
9225036412
Винт
15
3H6032920M
DRAIN SCREW
16
3H6032930M
O-RING DRAIN SCREW
17
3H6032650M
STOP SCREW
18
3H6032670M
SPRING STOP SCREW
19
3AS032660M
PILOT SCREW
20
3H6020110M
CARBURETOR GASKET
21
3H6039521M
Изолятор
22
3H6024110M
INTAKE SILENCER
23
3H6026030M
FLAME ARRESTER
24
3A0760790M
COLLAR 6.2-9-7.4
25
3H6760791M
COLLAR 6.2-9-7.4
26
9164F10685
BOLT 8-85
27
9401030600
Шайба
28
3H6635050M
Держатель Кабеля
29
9101030616
BOLT 6-16
30
9301030600
Гайка
31
3H6040004M
FUEL PUMP ASSEMBLY
32
3H6040440M
CHECK VALVE P
33
3H6040141M
CHECK VALVE R
34
3H6040280M
PUMP BODY GASKET
35
3H6040050M
PUMP DIAPHRAGM
36
9216030308
Винт
37
9225036418
Винт
38
3H6074220M
O-RING 2.62-18.72
39
9215037630
Винт
40
3H6671920M
CHOKE WIRE
41
346671150M
WASHER 6.5-21-1
42
9101030612
BOLT 6-12
43
3H6022040M
FUEL HOSE 4.5L-115
44
338022150M
CLIP FUEL PIPE 10
45
369022300M
FUEL FILTER ASSEMBLY
46
98AB50180M
Шланг
