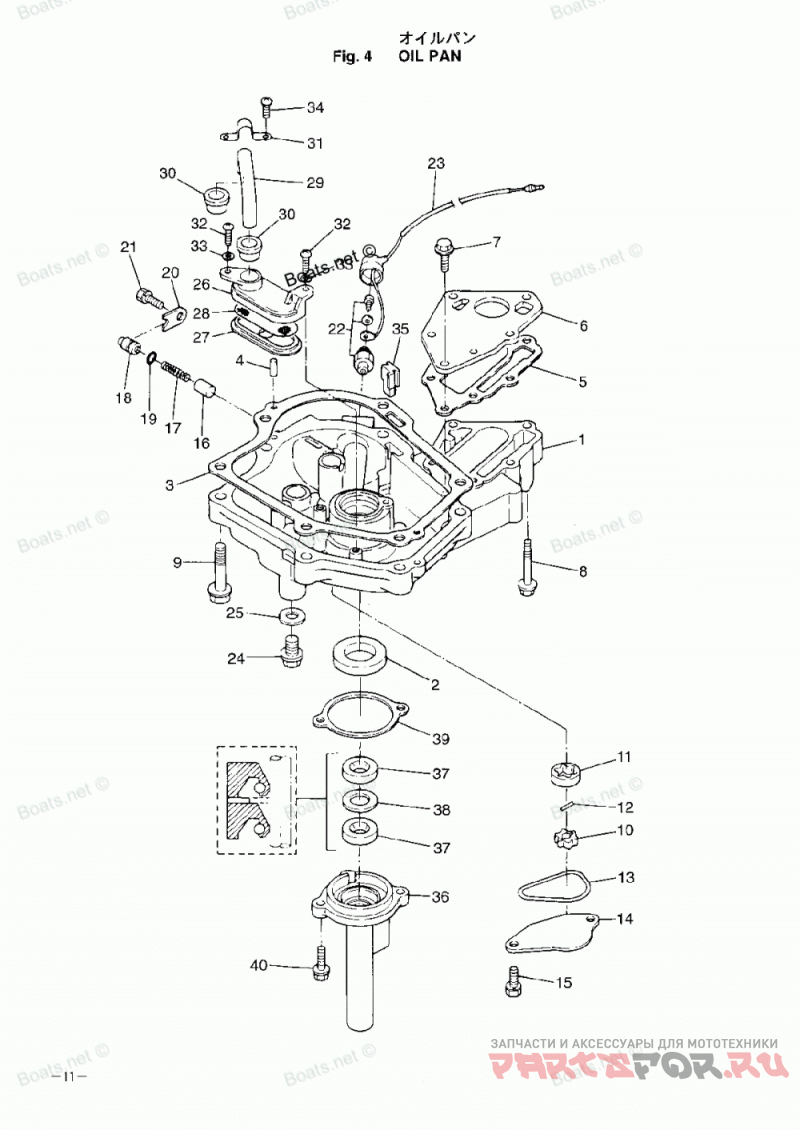

Маслянный поддон

Tohatsu MFS4B

Tohatsu
#oem кодцена
1
3R1B074010
Поддон масляный
1
311661074010
Поддон масляный
2
334001220M
OIL SEAL. 25-40-8
3
3H6074020M
OIL PAN GASKET
4
345011110M
DOWEL PIN, 6-12
5
3H6023050M
EXHAUST COVER GASKET (INNER)
6
3H6023021M
EXHAUST COVER (INNER)
7
9101145620
Болт
8
9101145640
Болт
9
9101245840
Болт
10
3H6076010M
OIL PUMP ROTOR INNER)
11
3H6076020M
OIL PUMP ROTOR (OUTER)
12
3H6076030M
OIL PUMP PIN
13
3R1076050M
OIL PUMP O-RING
13
3H6076050M
OIL PUMP O-RING
14
3H6076060M
Крышка насоса
15
9101216616
Болт
16
3H6076210M
PLUNGER CONTROL
17
3H6076220M
PRESSURE SPRING
18
3H6076230M
Пружины
19
345660210M
O-RING , 1.9-6.8
20
3H6671150M
PLUNGER COVER
22
3H6076110M
Датчик давления масла
23
3H6076130M
OIL PRESSURE SWITCH LEAD CABLE
24
3H6074050M
DRAIN BOLT
25
3H6074060M
WASHER, 10.2-19-1
26
3H6074110M
STRAINER BODY
27
3H6074120M
STRAINER CAP
28
3H6074130M
STRAINER MESH
29
3H6074150M
STRAINER PIPE
30
3H6074160M
STRAINER SEAL
31
3H6074170M
STRAINER STOPPER
32
3C8024200M
BOLT, 5-16 PRE-COATED
33
9401210500
Шайба
34
9215216512
Винт
35
3H6074040M
OIL PAN GROMMET
36
369012104M
CRANK CASE HEAD
37
369012150M
OIL SEAL, 10.1-25-7
38
369012170M
SPACER, 19-24.8-1
39
369012140M
CRANK CASE HEAD GASKET
40
9101135620
Болт
