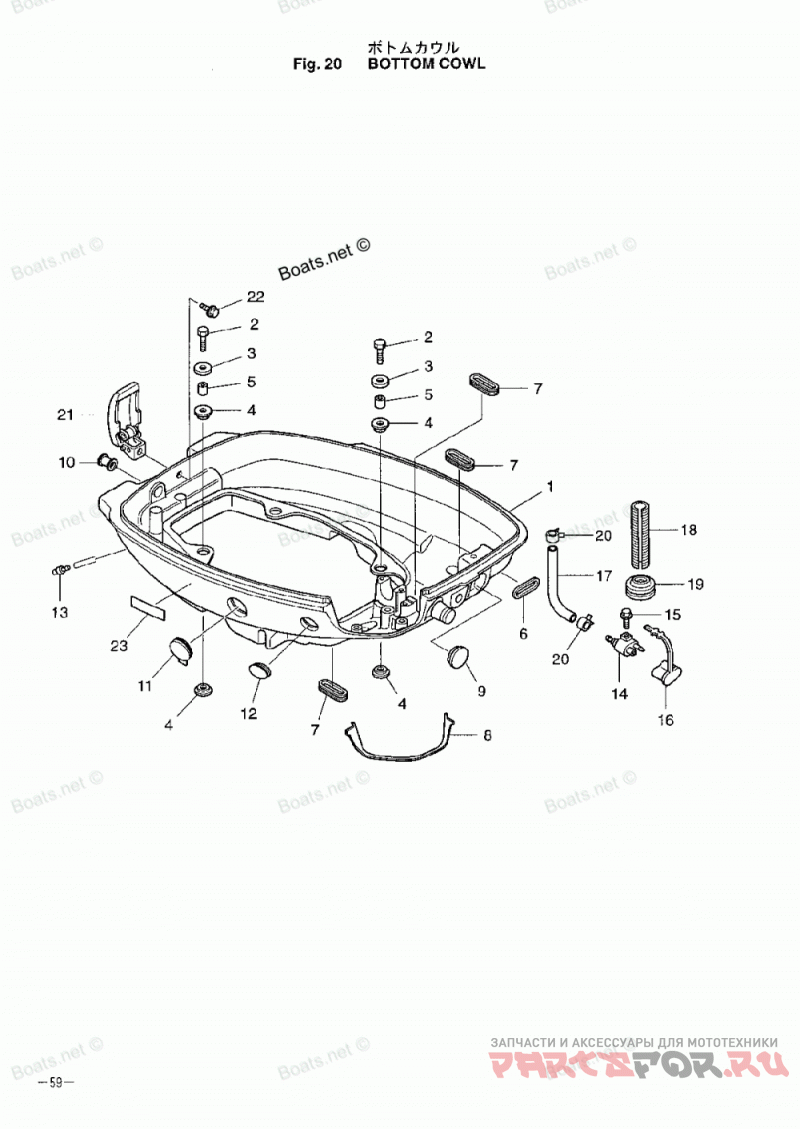

Нижняя часть колпака

Tohatsu MFS20C

Tohatsu
#oem кодцена
1
3BAQ671000
BOTTOM COWL
2
9101E30630
Болт
3
3BJ671150M
WASHER RUBBER MOUNT
4
346671130M
MOUNT MOTOR COVER LOWER
5
346671140M
SPACER, 6.2 - 9 - 15.7
5
346671141M
SPACER 6.2-9-15.7
6
3R3671620M
BATTERY CABLE GROMMET
7
3R3662260M
SHIFT ROD GROMMET
8
3BJ674840M
SEAL SHIFT LEVER BRACKET
9
345671170M
GROMMET 17-2.7
10
3B2671870M
GROMMET THROTTLE SHAFT
11
3BA726180M
Уплотнитель резиновый
12
3BA671870M
Уплотнитель резиновый
13
3BA011380M
WATER NIPPLE
13
3R3710400M
PILOT LAMP ASSEMBLY
14
3BA011380M
NIPPLE WATER
14
394702600M
FUEL CONNECTOR (ENGINE, MALE)
15
98AB50330M
Шланг
15
9101E35616
Болт
16
394702600M
FUEL CONNECTOR, ENGINE MALE
16
3H6702620M
FUEL CONNECTOR PROTECTOR
17
9101E35616
Болт
17
98AB50400M
RUBBER HOSE
18
3H6702620M
FUEL CONNECTOR PROTECTOR
18
3BJ703130M
FUEL HOSE PROTECTOR
19
98AB50400M
Шланг
19
345760230M
GROMMET, 22 - 2.5
20
345760230M
GROMMET 22-2.5
20
3AB351430M
CLIP ∅ 9.5
21
3BJ703130M
FUEL HOSE PROTECTOR, 10.7-280
21
3BJ671200M
ASSEMBLY
22
369022300M
FUEL FILTER ASSEMBLY
22
9101E35612
Болт
23
98AB50120M
Шланг
23
3H6675720M
STORAGE
24
3AB351430M
CLIP 9.4
25
398068300M
STOP SWITCH ASSEMBLY
26
353068210M
STOP SWITCH LANYARD ASSEMBLY, WITH CURL
27
3AA760260M
MAIN SWITCH ASSEMBLY
28
361760800M
NEUTRAL SWITCH
29
3BJ760810M
NEUTRAL SWITCH BRACKET
30
3AC726150M
PTT SWITCH ASSEMBLY
31
3F3726161M
GASKET PTT
32
3AL726170M
PTT SWITCH ASSEMBLY BRACKET
33
3BJQ674800
SHIFT LEVER BRACKET
34
3C8671560M
BUSHING CHOKE KNOB
35
3C8671511M
CHOKE ROD
36
9101E35620
Болт
37
3BJ636220M
THROTTLE DRUM ASSEMBLY
38
3BJ062830M
COLLAR 6.1-9-8.9
39
9101E30620
Болт
40
3c8663080M
WASHER 6-16-1.5
41
3R3635080M
THROTTLE WIRE BRACKET
42
9101E35625
Болт
43
3BJ662600M
GROMMET SHIFT LEVER ROD
44
3BJ671200M
COWL LATCH ASSEMBLY
45
9101E35612
Болт
46
3BA636170M
THROTTLE ROD
47
3BJ674810M
SHIFT LEVER BRACKET COVER
48
9225E35635
Винт
49
3V9675781M
SHIFT DECAL F, N, R
50
3H6675720M
STORAGE DECAL
