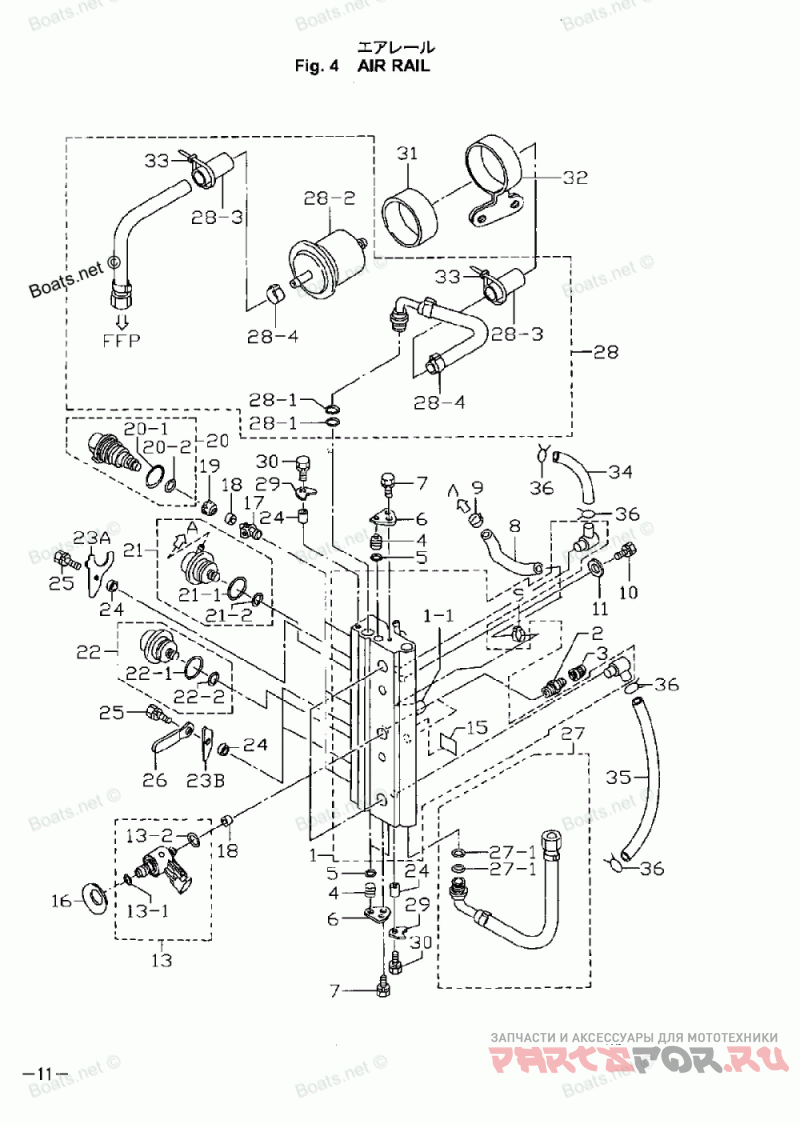

Air Rail

Tohatsu MD70B

Tohatsu
#oem кодцена
1
3FW100800M
AIR RAIL ASSEMBLY
1
3T9100800M
AIR RAIL
1-1
3T5101660M
L-NIPPLE
2
3T5101660M
L-NIPPLE
2
3T5100980M
Клапан
3
3T5100980M
VALVE ASSEMBLY
3
3T5100990M
Крышка клапана
4
3T5101670M
PLUG, 10.5
5
3T5101640M
O-RING, 1.9 - 6.8
5
3T5101641M
O-RING 6.8-1.9
6
3T5101650M
STOPPER, PLUG
7
9101035612
Болт
7
9101036612
Болт
8
98AY45105M
Шланг
8
98AJ40105M
AIR HOSE
9
3T5100910M
CLAMP 29-64
10
9101030865
Болт
11
9401030800
Шайба
12
3GF103100M
AIR INJECTOR COMPLETE
13
3Y9103100M
AIR INJECTOR
13
3T5103101M
AIR INJECTOR
13
3T5103170M
O-RING 5-52
13-1
3T5103170M
O-RING, 5 - 52 (1 - 10)
13-2
3Y9103110M
O-RING, 2.4 - 9.6 (2.4 - 14.2)
13-2
3T5103110M
O-RING, 2 - 13 (1.8 - 14.5)
14
3Y9103111M
O-RING 2.4-9.5
15
3T5721960M
LABEL, AIR RAIL
15
3Y9103120M
SET PIECE AIR INJECTOR
16
3Y9103120M
SET PIECE, AIR INJECTOR
16
3T5103120M
SET PIECE, AIR INJECTOR
16
3T5103140M
INSERTING FUEL B INJECTOR
17
3T5103140M
INSERTING, FUEL INJECTOR
17
3T5103160M
SEAL COMPRESSION
18
3T5103160M
SEAL, COMPRESSION
18
3T5103150M
ADAPTER FUEL INJECTOR
19
3T5103150M
ADAPTER, FUEL INJECTOR
19
3T5103000M
FUEL INJECTOR
20
3T5103000M
FUEL INJECTOR
20
3T5103040M
O-RING 2.8-20.2
20-1
3T5103040M
O-RING, 2.8 - 20.2
20-2
3T5103030M
O-RING, 3.5 - 7.5
21
3T5103030M
O-RING 3.5-7.5
21
3T5101480M
REGULATOR, FUEL
21-1
3T5100950M
O-RING, 2.5 - 20
21-2
3T5100940M
O-RING, 2.5 - 5
22
3T5101480M
REGULATOR FUEL
22
3T5100900M
REGULATOR, AIR
23A
3Y9103020M
PLATE, FUEL INJECTOR
23B
3T5103020M
PLATE, FUEL INJECTOR
23
3T5100950M
O-RING 2.5-20
24
3T5101530M
COLLAR, 6.7 - 12.7 - 3
24
3T5100940M
O-RING 5-2.5
25
9101036616
Болт
25
3GF100900M
REGULATOR AIR
26
3T5100950M
O-RING 2.5-20
26
309069720M
CLAMP, 6.5 - 47.5P
27
3T5100940M
O-RING 5-2.5
27
3T5100880M
AIR HOSE
27-1
3T5101620M
O-RING, 1.9 - 9.8
28
3T5100890M
FUEL HOSE
28
3T5103020M
PLATE FUEL INJECTOR
28-2
3T5B101430
Топливный Фильтр
28-3
3T5061570M
PROTECT TUBE
28-4
3T5100860M
CLAMP, 21/32
29
3Y9103020M
HOLDING PLATE
29
3T5101690M
PLATE, NIPPLE
30
3T1843980M
LEAD WIRE BAND 170
31
3T5101450M
RUBBER, FUEL FILTER
31
3T1761740M
LEAD WIRE BAND STAY
32
3Y9101440M
BAND, FUEL FILTER
32
3T5101441M
BAND, FUEL FILTER
32
3FW100880M
AIR HOSE ASSEMBLY
33
3T5101620M
O-RING 1.9-9.8
33
3T5843980M
BAND, LEAD WIRE 104
34
3FW100890M
FUEL HOSE ASSEMBLY
34
98AB50650M
FUEL PIPE
35
3T5B101430
Топливный Фильтр
35
98AB50230M
AIR PIPE
36
3Y7061570M
PROTECTOR LENGTH=210
36
338022150M
CLIP, 10
37
3T5100860M
CLAMP 21/32
38
3T5101450M
RUBBER FUEL FILTER
39
3FW101440M
FUEL FILTER BAND
40
3T5101690M
PLATE NIPPLE
41
3T5101530M
COLLAR 6.7-12.7-3
42
9101035616
Болт
43
3T5100990M
CAP VALVE
45
98AB50230M
Шланг
46
338022150M
CLIP FUEL PIPE 10
47
3T5721960M
LABEL AIR RAIL
