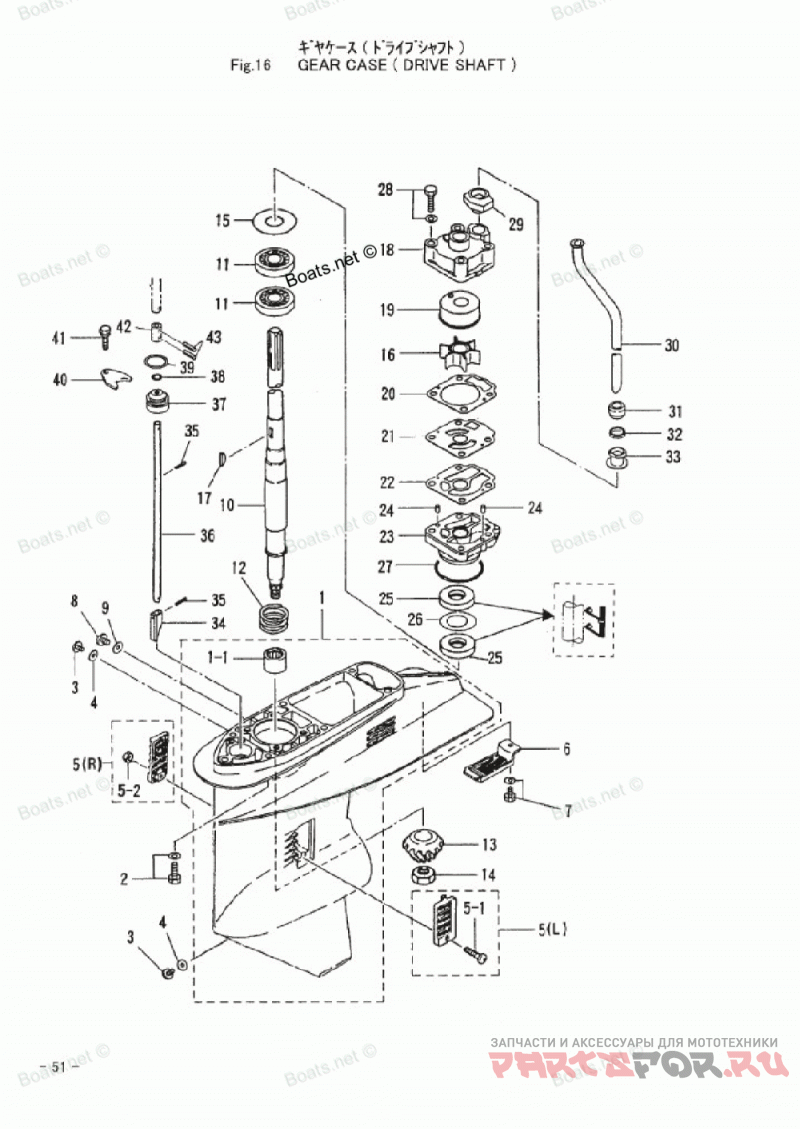

Корпус редуктора (вертикальный вал)

Tohatsu MD40B

Tohatsu
#oem кодцена
1
3C8Q600000
GEAR CASE
1
3C8Q600900
GEAR CASE (WITH SUB WATER PIPE)
1-1
345602110M
NEEDLE BEARING, 22 - 30 - 30
2
9101135835
Болт
3
332600052M
OIL PLUG
4
332600060M
GASKET, 8.1 - 15 - 1
5
3C8602351M
WATER STRAINER SET
5-1
9215030438
Винт
5-2
9304030400
NYLON NUT, 4 - P0.7
6
3C8602040M
SUB WATER STRAINER
7
9101135616
Болт
8
3B7600151M
WATER PLUG
9
3B7600161M
GASKET, 10.1 - 15 - 1
10
3C8643010M
Вертикальный вал "S"
10
3C8643020M
Вертикальный вал "L"
10
3C8643040M
DRIVE SHAFT "LL"
10
3C8643030M
DRIVE SHAFT "UL"
11
3C8602130M
BEARING, 6304
12
3C8643270M
SPRING, DRIVE SHAFT
13
3C8640202M
BEVEL GEAR "B"
14
3C8640270M
NUT, BEVEL GEAR "B"
15
345640810M
SHIM, 41 - 51.5 - 0.1
15
345640820M
SHIM, 41 - 51.5 - 0.15
15
345640830M
SHIM, 41 - 51.5 - 0.3
15
345640840M
SHIM, 41 - 51.5 - 0.5
16
3C8650212M
Импеллер
17
332650220M
KEY, WATER PUMP IMPELLER
18
3T5650160M
PUMP CASE (UPPER)
19
3T5650110M
LINER, PUMP CASE
20
3C7650180M
Прокладка
21
3C8650250M
GUIDE PLATE, WATER PUMP
22
3C8650291M
GASKET, GUIDE PLATE
23
3C8650171M
PUMP CASE (LOWER)
24
334650120M
DOWEL PIN, 4 - 10
25
3C8602230M
OIL SEAL, 17 - 33 - 6
26
3C8640840M
SHIM, 32.9 - 26 - 0.5
27
345650150M
O-RING, 3.2 - 47
28
9101135855
Болт
29
3C8650140M
WATER PIPE SEAL (LOWER)
30
3C8651000M
WATER PIPE "S"
30
3C8651100M
WATER PIPE "L"
30
3C8651300M
WATER PIPE "LL"
30
3C8651200M
WATER PIPE "UL"
31
345652060M
WATER PIPE SEAL (UPPER)
32
345652050M
COLLAR, 18 - 20 - 4.5
33
346652040M
WATER PIPE AUXILLARY MOUNT
34
3C8660110M
Кулачковый толкатель
35
9514070312
SPRING PIN, 3 - 12
36
3C8660150M
CAM ROD "LL"
36
3C8660140M
CAM ROD "UL"
36
3C8660120M
CAM ROD "S"
36
3C8660130M
CAM ROD "L"
37
3C8660311M
BUSHING, CAM ROD
38
332660210M
O-RING, 2.4 - 5.8
39
3C8660320M
O-RING, 3.5 - 21.7
40
353660240M
STOPPER, CAM ROD BUSHING
41
9101036612
Болт
42
3C8662410M
JOINT, SHIFT ROD
43
9514030312
SPRING PIN, 3 - 12
