Cylinder - Crank Case Assy для лодочных моторов Tohatsu M25C3 (2005)

Москва и регионы России

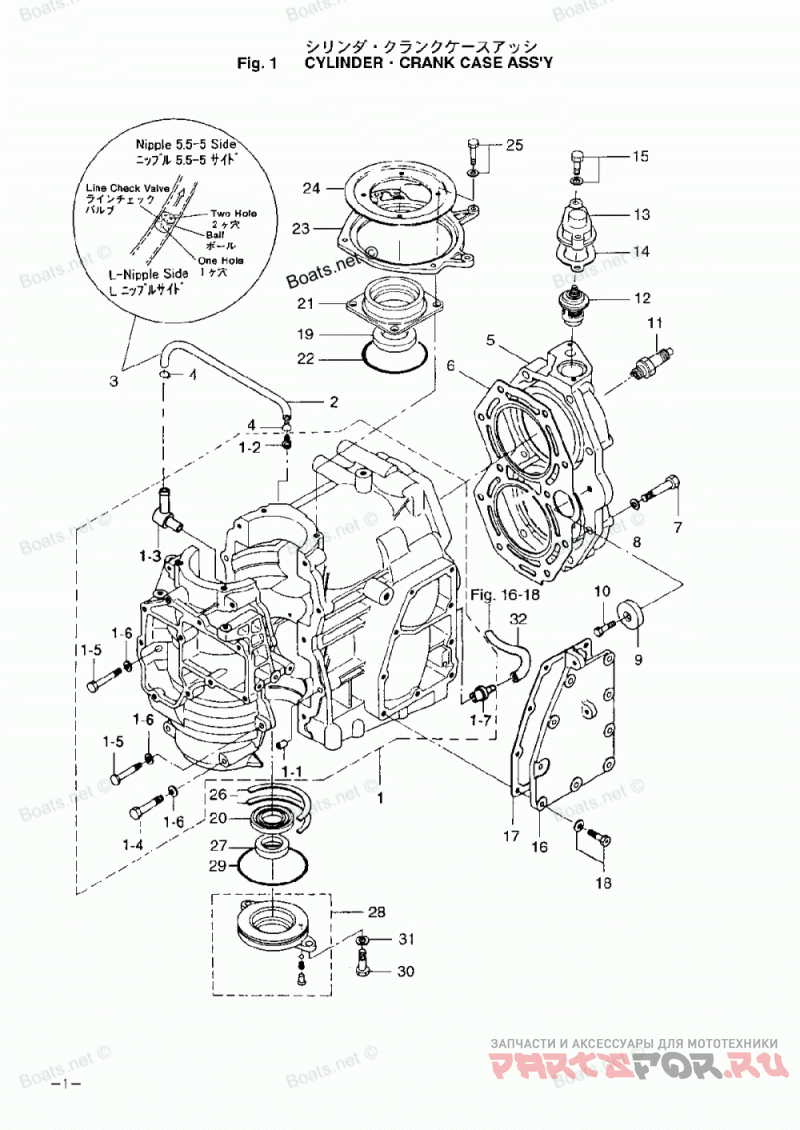

Cylinder - Crank Case Assy

Tohatsu M25C3

Cylinder - Crank Case Assy

#

oem код

название

цена

1

CYLINDER & CRANK CASE ASSY

CYLINDER & CRANK CASE ASSY

1

KNOCK, 8.65 - 11.5 -12.7

KNOCK, 8.65 - 11.5 -12.7

2

LUBRICATON PIPE

LUBRICATON PIPE

2

NIPPLE, 5.5 - 5

NIPPLE, 5.5 - 5

3

L-NIPPLE (NEW)

L-NIPPLE (NEW)

3

CHECK VALVE NIPPLE (OLD)

CHECK VALVE NIPPLE (OLD)

3

LINE CHECK VALVE

LINE CHECK VALVE

4

Болт

Болт

4

CLIP 8

CLIP 8

5

Болт

Болт

5

Головка цилиндра

Головка цилиндра

6

Прокладка

Прокладка

6

Шайба

Шайба

7

Болт

Болт

7

NIPPLE, 7 - 7

NIPPLE, 7 - 7

8

WASHER, 8.5 - 19.5 - 3.2

WASHER, 8.5 - 19.5 - 3.2

9

Анод

Анод

10

Болт

Болт

11

SPARK PLUG

SPARK PLUG

11

SPARK PLUG (WITH RESISTANCE)

SPARK PLUG (WITH RESISTANCE)

12

Термостат

Термостат

13

CAP, THERMOSTAT

CAP, THERMOSTAT

14

GASKET, THERMOSTAT CAP

GASKET, THERMOSTAT CAP

15

Болт

Болт

16

EXHAUST COVER

EXHAUST COVER

17

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

18

Болт

Болт

19

OIL SEAL, 30 - 45 - 8

OIL SEAL, 30 - 45 - 8

20

OIL SEAL, 24 - 40 - 8

OIL SEAL, 24 - 40 - 8

21

MAGNETO BASE

MAGNETO BASE

22

O-RING, 2 - 55.5

O-RING, 2 - 55.5

23

SET RING

SET RING

24

Направляющая пластина

Направляющая пластина

25

Болт

Болт

26

THRUST PLATE, CRANKSHAFT

THRUST PLATE, CRANKSHAFT

27

OIL SEAL, 16 - 28 - 6

OIL SEAL, 16 - 28 - 6

28

HEAD, CRANK CASE

HEAD, CRANK CASE

29

O-RING, 1.7 - 59

O-RING, 1.7 - 59

30

Болт

Болт

31

SPRING WASHERD

SPRING WASHERD

32

PIPE, WATER NIPPLE

PIPE, WATER NIPPLE
