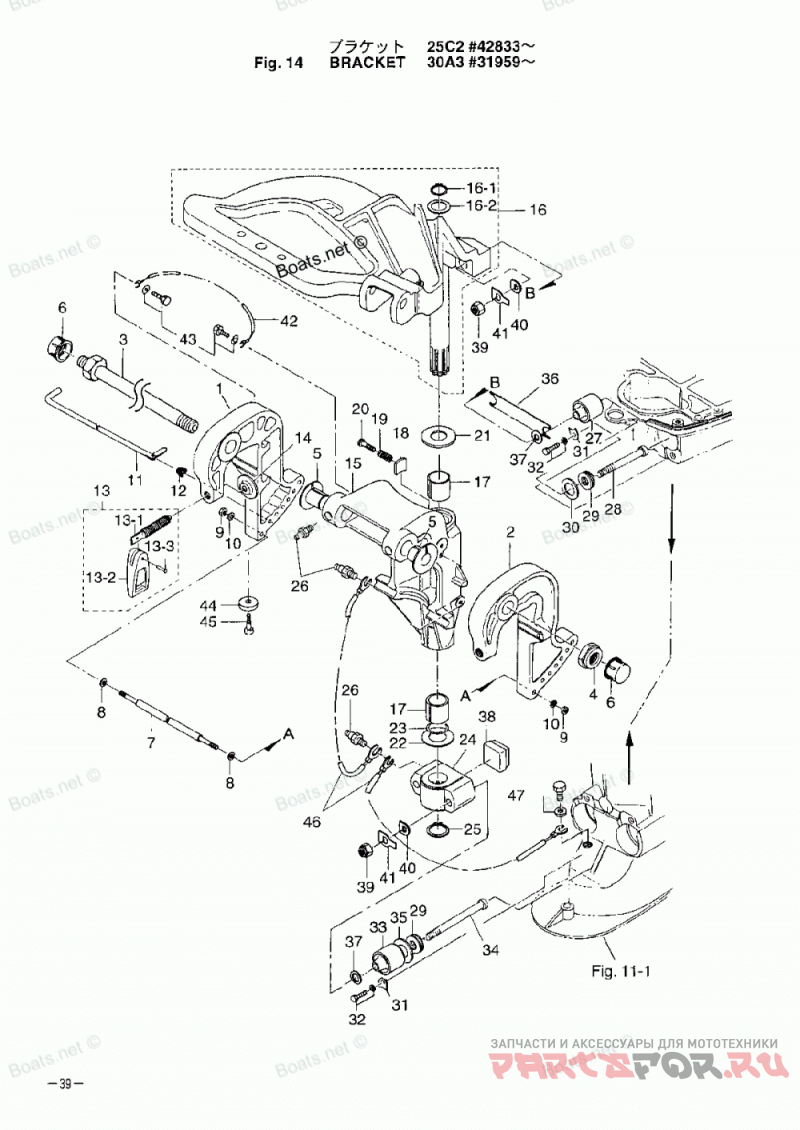

Кронштейн крепления к транцу

Tohatsu M25C3

Tohatsu
#oem кодцена
1
349S621120
STERN BRACKET RIGHT
2
349S621130
STERN BRACKET LEFT
3
346621910M
BRACKET BOLT
4
346621240M
NYLON NUT, 7/8
5
349621260M
BUSHING, BRACKET BOLT
6
346621270M
CAP, BRACKET BOLT
7
346621170M
DISTANCE PIECE
8
9401030600
Шайба
9
9301030600
Гайка
10
9413030600
Пружинная шайба
11
345621210M
Штанга
12
345621221M
SPRING, THRUST ROD
13
3M3S621000
CAMP SCREW ASSY
13-1
398621030M
CLAMP SCREW
13-3
3C8621041M
RIVET, 3 - 22
14
332621010M
PAD, CLAMP SCREW
15
349S623102
SWIVEL BRACKET
16
346S620100
STEERING SHAFT ASSY
16-1
9451032200
C-RING, D=22
16-2
346624121M
WASHER, 22.6 - 30 - 2
17
345624170M
BUSHING, 26 - 32
18
345624410M
FRICTION PLATE, BRACKET
19
346624210M
Пружина
20
9101030830
Болт
21
3A0624232M
THRUST PLATE UPPER, 27 - 50 - 1
22
346624241M
THRUST PLATE LOWER, 26.5 - 46 - 1
24
346S614112
MOUNT BRACKET
25
9451032500
C-RING, D=25
26
344671770M
GREASE NIPPLE
27
346613010M
MOUNT RUBBER UPPER
28
346613072M
BOLT, MOUNT RUBBER UPPER
29
346613330M
DAMPER PLATE
30
346613350M
LOCK PLATE UPPER, 20 - 31.7 - 3
31
346613121M
RETAINER, MOUNT RUBBER
32
9101035820
Болт
33
346613020M
MOUNT RUBBER LOWER
34
346613212M
BOLT, MOUNT RUBBER LOWER
35
346613340M
LOCK PLATE LOWER, 21 - 35.7 - 3
36
346613370M
DAMPER RUBBER UPPER
37
9401031000
Шайба
38
346613360M
DAMPER RUBBER LOWER
39
9301031000
Гайка
40
345613222M
Шайба
41
346613230M
LOCK PLATE, MOUNT RUBBER
42
3C8621580M
GROUND CABLE
43
9101135612
Болт
44
338602182M
Анод
45
9101135620
Болт
46
3A3623960M
GROUND CABLE
47
9101135610
Болт
